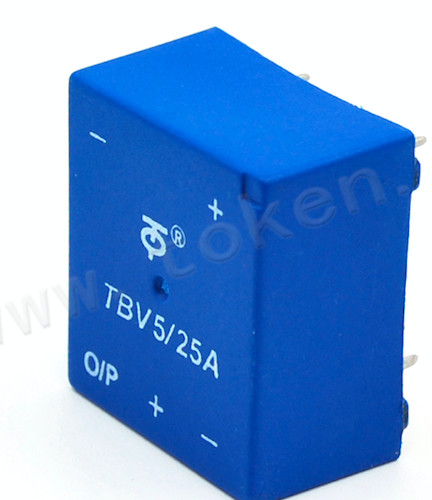

Rated Input 5mA To 10mA Hall Effect Voltage Sensor Hall Voltage Transducer
Rated Input 5mA To 10mA Hall Effect Voltage Sensor Hall Voltage Transducer
Rated Input 5mA To 10mA Hall Effect Voltage Sensor Hall Voltage Transducer
Rated Input 5mA To 10mA Hall Effect Voltage Sensor Hall Voltage Transducer
Rated Input 5mA To 10mA Hall Effect Voltage Sensor Hall Voltage Transducer
Rated Input 5mA To 10mA Hall Effect Voltage Sensor Hall Voltage Transducer
Rated Input 5mA To 10mA Hall Effect Voltage Sensor Hall Voltage Transducer
Rated Input 5mA To 10mA Hall Effect Voltage Sensor Hall Voltage Transducer
Specifications
Brand Name :
TOKEN
Model Number :
TBV5/25A
Certification :
CE;ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Price Reconsideration
Supply Ability :
2.2K pcs per month
Packaging Details :
Little Carton Size:34*23*21CM;240pcs/Carton ;Large Carton Size:48*37*26CM;480pcs/Carton
product name :
hall effect voltage sensor
Usage :
hall effect sensor
Theory :
Hall Sensor
Operating temperature :
_40℃~+85℃
Color :
Blue and black
Type :
voltage transducer
Description

Hall Effect Current Sensor Hall Voltage Transducer Rated Input 5mA To 10mA

The TBV5,10/25A series current mode voltage sensor is a device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit, It provides accurate electronic measurement of DC AC or pulsed currents.

Electrical data(Ta=25℃±5℃)

Type

Parameter		 TBV5/25A TBV10/25A

Unit

Rated input (Ipn)		 5 10 mA

Measure range(Ip)		 7 14 mA
Turns ratio(Np/Ns) 5000:1000 2500:1000 T

Primary coil resister		 650 200 Ω

Secondary coil resister		 110 110 Ω

Measure resister		 ±15V @(±5)±10mAmax 100(min) 350(max)
@(±7)±14mAmax 100(min) 190(max)		 Ω

Rated output (Isn)		 @Ip=±Ipn ±25±0.5% mA

Supply voltage		 ±15±5% V
Power consumption 20+IpX(Np/Ns) mA

Zero offset current		 @Ip=0 ±0.2 mA

Offset current drift		 @ -40℃～+85℃ ±0.5 mA

Response time		 40 µs
Linearity @Ip=0-±Ipn ≤0.2 %FS

Galvanic isolation		 @ 50HZ,AC,1min 2.5 KV

Applications

AC variable speed drives and servo motor drives

Static converters for DC motor drives

Variable speed drives

Power supplies for welding applications

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Switched Mode Power Supplies(SMPS)

Mechanical dimension(for reference only)

Rated Input 5mA To 10mA Hall Effect Voltage Sensor Hall Voltage Transducer

Remarks:

1. All dimensions are in mm.

2. General tolerance ±1mm

Directions for use

The accuracy of sensor will be the best when the current passes through resister R1 and becomes the rated primary current, and therefore the current to be measured by sensor should comply with the primary current 10mA.

For example, VIN=250V:

Accuracy )=±0.8%ofVIN(＠Ta=+25℃) a) R1=25KΩ/10W,IP =10mA

(Accuracy )=±1.6%ofVIN(＠Ta=+25℃) b) R1=50KΩ/ 5W,IP =5mA


Considering resistance of primary coil (compared with R1 and temperature difference kept as low as possible) and electrical isolation within measure range (recommended), this sensor is suitable for measuring voltage.

Standards

  • UL94-V0.
  • EN60947-1:2004
  • IEC60950-1:2001
  • EN50178:1998
  • SJ 20790-2000
General date

Value Unit Symbol
Operating temperature -40 to +85 ºC TA
Storage temperature -40 to +125 ºC TS
Mass(approx) 20 g M

Characteristics chart

Effects of impulse noise

Rated Input 5mA To 10mA Hall Effect Voltage Sensor Hall Voltage Transducer
