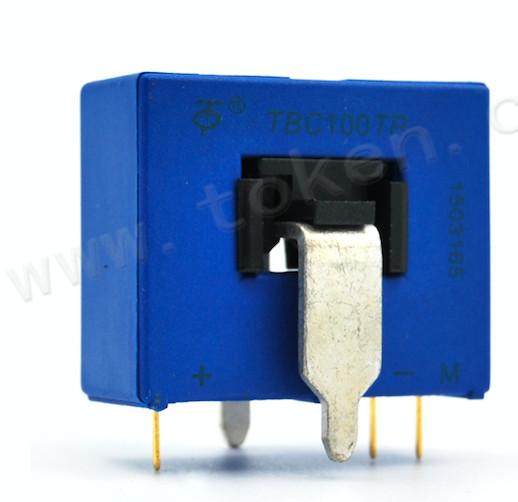

Blue Hall Effect Current Sensor Transducer Closed Loop DC AC Pulsed Current

The TBC- TP series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data(Ta=25℃±5℃)

Type


Parameter

 TBC025TP TBC50TP TBC100TP TBC125TP TBC200TP Unit

Rated input(Ipn)		 25 50 100 125 200 A

Measure range(Ip)		 75(±18V,
180Ω)		 150(±18V,
80Ω)		 300(±18V,
68Ω)		 375(±18V,
15Ω)		 600(±18V,
10Ω)		 A

Turnsratio(Np/Ns)		 1:1000 1:1000 1:2000 1:1000 1:2000 　

Coil resister		 45.00 30.00 45.00 30.00 45.00 Ω

Rated output(Is)		 25±0.5% 50±0.5% 50±0.5% 125±0.5% 100±0.5% mA

Supply voltage		 ±12～±18 V
Power consumption ≤20+IpX(Np/Ns) mA

offset current		 @Ip=0 ≤±0.2 mA

Offset current drift		 @ -40～+85℃ ≤±0.5 mA

Linearity

 @Ip=0-±Ipn ≤0.1 %FS

Bandwidth		 @ -3dB 0～200 KHz

Response time		 @100A/μS,10%-90% ≤1 µs

Galvanic isolation		 @ 50HZ,1min 3.0 KV

Applications

AC variable speed drives and servo motor drives

Static converters for DC motor drives

Variable speed drives

Power supplies for welding applications

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Switched Mode Power Supplies(SMPS)

Mechanical dimension(for reference only)

Blue Hall Effect Current Sensor Transducer Closed Loop DC AC Pulsed Current

Remarks:

1. All dimensions are in mm.

2. General tolerance ±1mm.

Directions for use

When measure current flows according to the direction of the arrowhead, Output terminal gets the same phase current.

The primary conductor should be≤120℃.

When the current will be measured goes through a sensor, the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the sensor)

Custom design in the different rated input current and the output current are available.

Standards

  • UL94-V0.
  • EN60947-1:2004
  • IEC60950-1:2001
  • EN50178:1998
  • SJ 20790-2000

General date

Value Unit Symbol
Operating temperature -40 to +85 ºC TA
Storage temperature -40 to +125 ºC TS
Mass(approx) 40 g M

Characteristics chart

Pulse current signal response characteristic Effects of impulse noise

Blue Hall Effect Current Sensor Transducer Closed Loop DC AC Pulsed Current
