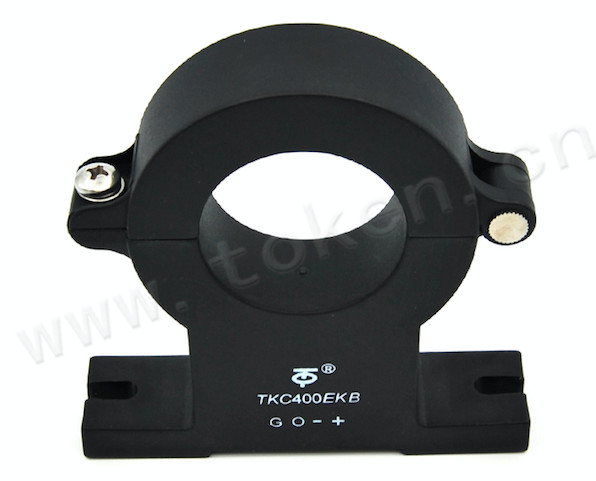

Electrochemical Split Core Hall Effect Current Sensor 100-2000A Input current
Electrochemical Split Core Hall Effect Current Sensor 100-2000A Input current
Electrochemical Split Core Hall Effect Current Sensor 100-2000A Input current
Electrochemical Split Core Hall Effect Current Sensor 100-2000A Input current
Electrochemical Split Core Hall Effect Current Sensor 100-2000A Input current
Electrochemical Split Core Hall Effect Current Sensor 100-2000A Input current
Electrochemical Split Core Hall Effect Current Sensor 100-2000A Input current
Electrochemical Split Core Hall Effect Current Sensor 100-2000A Input current
Specifications
Brand Name :
TOKEN
Model Number :
TKC-EKB
Certification :
CE;ROHS
Place of Origin :
Nanjing,China
MOQ :
10pcs
Price :
Price reconsideration
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
10K pcs per month
Delivery Time :
7~10 working days
Packaging Details :
Little carton:34*23*21CM 36pcs/carton;Large carton size 48*37*26CM 72pcs/carton
Product name :
open loop hall effect current sensor
principle :
hall effect
application :
Electrochemical
Input current :
100-2000A
Supply voltage :
±15 ±5%
Standards :
SJ 20790-2000
Description

Electrochemical Split Core Hall Effect Current Sensor 100-2000A Input current

TKC-EKB series current sensor is a open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data(Ta=25℃±5℃,RL=2KΩ,CL=10000PF)

Type


Parameter

 TKC200EKB TKC400EKB TKC600EKB TKC800EKB TKC1000EKB TKC2000EKB

Unit

Rated input (Ipn)		 ±200 ±400 ±600 ±800 ±1000 ±2000 A

Measure range(Ip)		 ±400 ±800 ±1200 ±1600 ±2000 ±4000 A

Rated output		 @Ip=±Ipn ±4±1% V

Supply voltage		 ±15 ±5% V

Power Consumption

 +25,-10 mA

Offset voltage		 @Ip=0 ±20 mV

Magnetic offset

 @Ip=±Ipn-0 ±20 mV

Offset drift		 @ -40～+85℃ ≤1 mV/℃

output drift		 @ -40～+85℃ ≤1 mV/℃

Linearity		 @Ip=0-±Ipn ≤1 %FS

Response time		 @50A/μS, 10%-90% ≤5 μS

Galvanic isolation		 @ 50HZ,AC,1min 5 KV

Isolation resistance

 @ DC 500V 1000 MΩ

Applications

Variable speed drives

Welding machine

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Electrochemical

Mechanical dimension(for reference only)

Electrochemical Split Core Hall Effect Current Sensor 100-2000A Input current

Remarks:

1. All dimensions are in mm.

2. General tolerance ±1mm

Directions for use

When the current will be measured goes through a sensor, the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the sensor)

The output amplitude of the sensor can be adjusted according to users’ requirements.

Custom design in the different rated input current and the output voltage are available.

Standards

  • UL94-V0.
  • EN60947-1:2004
  • IEC60950-1:2001
  • EN50178:1998
  • SJ 20790-2000

General date

Value Unit Symbol
Operating temperature -40 to +85 ºC TA
Storage temperature -40～+125 ºC TS
Mass(approx) 300 g M

Characteristics chart

Pulse current signal response characteristic Effects of impulse noise


Electrochemical Split Core Hall Effect Current Sensor 100-2000A Input current
