Specifications
Brand Name :
TOKEN
Model Number :
TBC- E
Certification :
CE;ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Price Reconsideration
Supply Ability :
2.2K pcs per month
Packaging Details :
Little Carton Size:34*23*21CM;240pcs/Carton ;Large Carton Size:48*37*26CM;480pcs/Carton
application :
Uninterruptible Power Supplies
Mounting Type :
PCB Mounting
Principle :
null balance
Standard :
high precision
product name :
Hall Effect Current Sensor
Operating temperature :
-40～+85
Description

Split Core Current Transformer Hall Effect Based Current Sensor PCB Mounting

The TBC- Eseries current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data(Ta=25℃±5℃)

Type

Parameter		 TBC50E TBC75E TBC100E TBC200E TBC300E

Unit

Rated input (Ipn)		 50 75 100 200 300 A

Measure range(Ip)		 120 200 250 450 500 A

Turns ratio(Np/Ns)		 1:1000 1:1500 1:1000 1:2000 1:3000 T

Internal measuring resister		 80±0.1% 80±0.1% 40±0.1% 40±0.1% 40±0.1% Ω

Rated output		 @Ip=±Ipn ±4±0.5% V

Supply voltage		 ±15 ±5% V
Power consumption ≤20+IpX(Np/Ns) mA

Zero offset voltage		 @Ip=0 ≤±10 mV

Offset drift		 @ -40～+85℃ ≤±0.5 mV/℃

output drift		 @ -40～+85℃ ≤±0.5 mV/℃

Linearity		 @Ip=0-±Ipn ≤0.1 %FS

Response time		 @100A/μS,10%-90% ≤1 μS

Bandwidth		 @ -3db DC～100 KHZ

Galvanic isolation		 @ 50HZ,AC,1min 3 KV

Applications

Variable speed drives

Welding machine

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Electrochemical

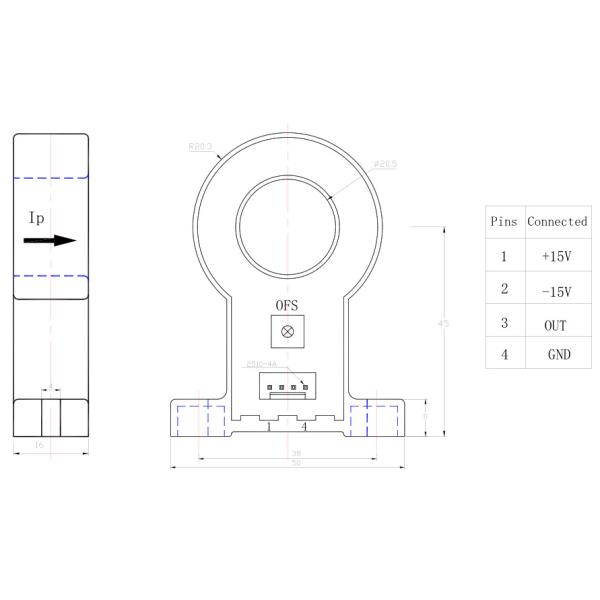

Mechanical dimension(for reference only)

Split Core Current Transformer Hall Effect Based Current Sensor PCB Mounting

Remarks:

1. All dimensions are in mm.

2. General tolerance ±1mm.

Directions for use

Is will be in a forward direction when the Ip flows according to the direction of the arrowhead.

The primary conductor should be≤120℃.

The dynamic performance (di/dt and the response time)is the best when the primary hole is fully filled with

the bus bar.

The primary turns should be at the top of the sensor for the best magnetic coupling.

When the current will be measured goes through a sensor, the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the sensor).

Custom design in the different rated input current and the output voltage are available.

Standards

  • UL94-V0.
  • EN60947-1:2004
  • IEC60950-1:2001
  • EN50178:1998
  • SJ 20790-2000

General date

Value Unit Symbol
Operating temperature -40 to +85 ºC TA
Storage temperature -40 to +125 ºC TS
Mass(approx) 44 g M

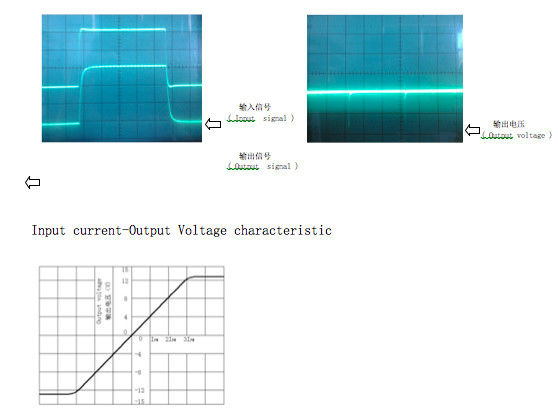

Characteristics chart

Pulse current signal response characteristic Effects of impulse noise

Split Core Current Transformer Hall Effect Based Current Sensor PCB Mounting
