Specifications
Brand Name :
TOKEN
Model Number :
TBC-DHSR5
Certification :
CE;ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Price Reconsideration
Supply Ability :
2.2K pcs per month
Packaging Details :
Little Carton Size:34*23*21CM;240pcs/Carton ;Large Carton Size:48*37*26CM;480pcs/Carton
application :
Uninterruptible Power Supplies
Mounting Type :
PCB Mounting
Principle :
null balance
Standard :
high precision
product name :
Hall Effect Current Sensor
Operating temperature :
-40～+85
Description

TBC-DHSR5 High Sensitivity Hall Effect Sensor EN60947-1 2002 Standard

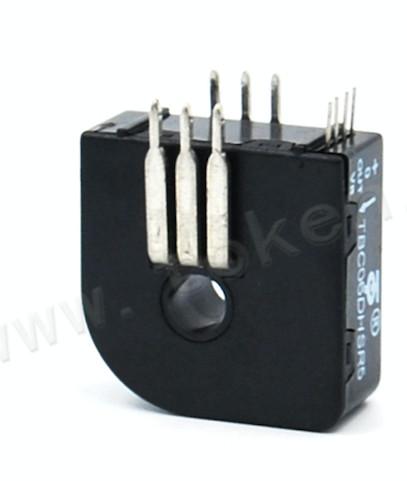

TBC-DHSR5 series multi-range current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data(Ta=25℃±5℃)

Type
Parameter		TBC06DHSR5TBC15DHSR5TBC25DHSR5TBC50DHSR5Unit

Rated input (Ipn)		6152550A

Measure range(Ip)		±19.2±48±80±160A

Secondary turns(Ns)		1152±11440±11200±11200±1T

Internal resister		30±0.1%15±0.1%7.5±0.1%3.75±0.1%Ω

Rated output		±Ip=±Ipn ±0.625±0.5%V

Supply voltage		+5±5%V
Power consumption≤15+Ip/NsmA
Reference voltage+2.5±0.4%V

Zero voltage		@ Ip=0 2.5±0.4%V

Zero voltage drift		@ -40～+105℃ ≤±0.05mV/℃

output drift		@ -40～+105℃ ≤±0.05mV/℃
Linearity@ Ip=0-±Ipn ≤0.1%FS

Total precision		≤±0.7%
di/dt accurately followed＞50A/µS

Response time		@ Ip=Ipn, 50 A/µS ,10%-90% ＜500nS

Bandwidth		@ -1db DC～200KHZ

Galvanic isolation		@ 50HZ,AC,1min 2.5KV


Applications


AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies(SMPS)
Power supplies for welding applications
Solar inverters

Mechanical dimension(for reference only)

TBC-DHSR5 High Sensitivity Hall Effect Sensor EN60947-1 2002 Standard


Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.

Pin connections

Turns

IPN(A)
Primary rated current

Vout(V)

Rated output

[mΩ]
Primary
impedance

[uH]
Primary
inductance

Connected points
1±6(±15, ±25,±50)2.5±0.6250.180.013TBC-DHSR5 High Sensitivity Hall Effect Sensor EN60947-1 2002 Standard
2±3(±7.5, ±12.5,±25)2.5±0.6250.810.05TBC-DHSR5 High Sensitivity Hall Effect Sensor EN60947-1 2002 Standard
3±2(±5, ±8.3,±16.6)2.5±0.6251.620.12TBC-DHSR5 High Sensitivity Hall Effect Sensor EN60947-1 2002 Standard

Directions for use


When the current will be measured goes through a sensor, the voltage will be measured at the output end.
(Note: The false wiring may result in the damage of the sensor)
Custom design in the different rated input current and the output voltage are available.

Standards

  • UL94-V0.
  • EN60947-1:2004
  • IEC60950-1:2001
  • EN50178:1998
  • SJ 20790-2000

General date

ValueUnitSymbol
Operating temperature-40 to +105ºCTA
Storage temperature-40 to +125ºCTS
Mass(approx)10gM



Pulse current signal response characteristic Effects of impulse noise

TBC-DHSR5 High Sensitivity Hall Effect Sensor EN60947-1 2002 Standard
TBC-DHSR5 High Sensitivity Hall Effect Sensor EN60947-1 2002 Standard
