100-2000A Open Loop Hall Effect Current Sensor with ±1% Accuracy
100-2000A Open Loop Hall Effect Current Sensor with ±1% Accuracy
100-2000A Open Loop Hall Effect Current Sensor with ±1% Accuracy
100-2000A Open Loop Hall Effect Current Sensor with ±1% Accuracy
100-2000A Open Loop Hall Effect Current Sensor with ±1% Accuracy
100-2000A Open Loop Hall Effect Current Sensor with ±1% Accuracy
100-2000A Open Loop Hall Effect Current Sensor with ±1% Accuracy
100-2000A Open Loop Hall Effect Current Sensor with ±1% Accuracy
Specifications
Brand Name :
TOKEN
Model Number :
TKC-BHS5
Certification :
CE;ROHS
Place of Origin :
Nanjing,China
MOQ :
10pcs
Price :
Price reconsideration
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
10K pcs per month
Delivery Time :
7~10 working days
Packaging Details :
Little carton:34*23*21CM 36pcs/carton;Large carton size 48*37*26CM 72pcs/carton
principle :
Open Loop Hall Effect Current Sensor
application :
Switched Mode Power Supplies
Input current :
100-2000A
Supply voltage :
±15 ±5%
Standards :
IEC60950-1:2001
Usage :
Instrument
Theory :
Hall Sensor,Current Sensor
Accuracy :
±1%
Description

100-2000A Open Loop Hall Effect Current Sensor with ±1% Accuracy

TKC-BHS5 Series high precision current sensor is a open loop device based on the measuring principle of the hall effect ,with a galvanic isolation between primary and secondary circuit, the size of primary not affect test precision, no matter the location of primary in the hole of current sensor, It uses for precision measurement of DC, AC and pulse current.

Electrical data(Ta=25℃±5℃,RL=2KΩ,CL=10000PF)

Type

Parameter

TKC20

BHS5

TKC50

BHS5

TKC100

BHS5

TKC200

BHS5

TKC300

BHS5

TKC450

BHS5

TKC500

BHS5

Unit

Rated input (Ipn)		 ±20 ±50 ±100 ±200 ±300 ±450 ±500 A

Measure range(Ip)		 ±40 ±100 ±200 ±400 ±600 ±900 ±1000 A

Rated output		 @Ip=0-±Ipn ±1.0±0.5% V

Zero voltage

 @Ip=0 2.5±0.4% V

Reference voltage

 2.5±0.4% V

Supply voltage		 +5±5% V

Power Consumption

 ≤20 mA

Offset voltage		 ≤±5.0 mV

Magnetic offset		 ±5.0 ±3.0 mV

Offset drift		 ≤±0.2 ≤±0.1 mV/℃

output drift		 ≤±0.5 ≤±0.3 mV/℃

Linearity		 @Ip=0-±Ipn ≤0.5 %FS

Response time		 @100A/μS, 10%-90% ≤5 μS

Bandwidth		 @ -3dB DC～30 KHZ

Galvanic isolation		 @ 50HZ,AC,1min 2.5 KV

Applications

AC variable speed drives

Static converters for DC motor drives

Variable speed drives

Power supplies for welding applications

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Switched Mode Power Supplies(SMPS)

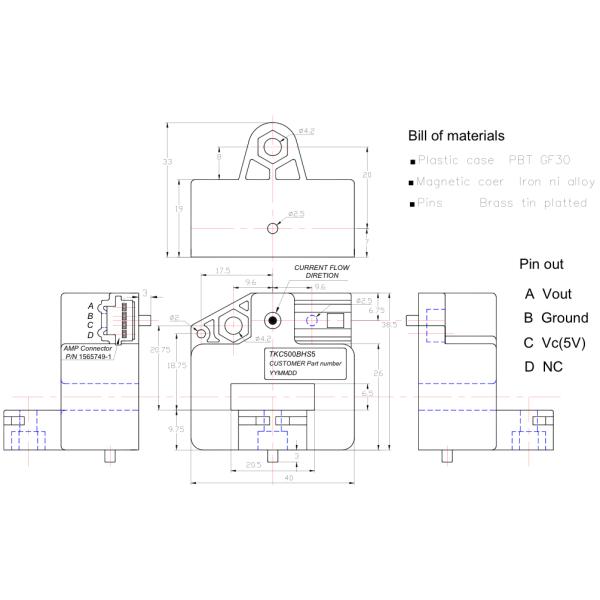

Mechanical dimension(for reference only)

100-2000A Open Loop Hall Effect Current Sensor with ±1% Accuracy

Remarks:

1. All dimensions are in mm.

2. General tolerance ±1mm.

Directions for use

When the current will be measured goes through a sensor, the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the sensor)

Customs can adjust Output amplitude of the sensor by needs.

Custom design in the different rated input current and the output voltage are available.

Standards

  • UL94-V0.
  • EN60947-1:2004
  • IEC60950-1:2001
  • EN50178:1998
  • SJ 20790-2000

General date

Value Unit Symbol
Operating temperature -40 to +105 ºC TA
Storage temperature -40 to +125 ºC TS
Mass(approx) 65 g M

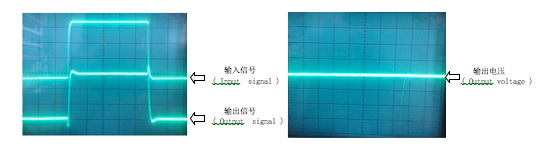

Characteristics chart

Pulse current signal response characteristic Effects of impulse noise

100-2000A Open Loop Hall Effect Current Sensor with ±1% Accuracy
