TOKEN Open Loop Hall Effect Current Sensor For BMS Electric Vehicle
TOKEN Open Loop Hall Effect Current Sensor For BMS Electric Vehicle
Specifications
Brand Name :
TOKEN
Model Number :
TKC-TF512
Certification :
CE;ROHS
Place of Origin :
Nanjing,China
MOQ :
10pcs
Price :
Price reconsideration
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
20K pcs per month
Delivery Time :
7~10 working days
Packaging Details :
Little carton:34*23*21CM 36pcs/carton;Large carton size 48*37*26CM 72pcs/carton
Name :
Hall Effect Current Sensor
application :
Switched Mode Power Supplies
Input current :
800A
Supply voltage :
±15 ±5%
aperture :
22mm
Application :
BMS
Type :
TKC-TF512
Accuracy :
±1%
Description

TKC-TF512 Hall Effect Current Sensor For BMS of electric vehicle

Applications

Variable speed drives

Battery supplied applications

Static converters for DC motor drives

BMS

Details

TKC-TF512 series is a kind of programming current sensor, which is a open loop device based on the measuring principle of the hall effect ,with a galvanic isolation between primary and secondary circuit .It provides accurate electronic measurement of DC,AC or pulsed currents.

Electrical data(Ta=25℃±5℃,RL=2KΩ,CL=10000PF)

Electrical data(Ta=25℃±5℃,RL=2KΩ,CL=10000PF)

Type
Parameter

TKC50

TF512/2

TKC100

TF512/2

TKC200

TF512/2

TKC300

TF512/2

TKC400

TF512/2

TKC800

TF512/2

单位

Unit

Rated input(Ipn)		 ±50 ±100 ±200 ±300 ±400 ±800 A

Measure range		 ±55 ±110 ±220 ±330 ±440 ±880 A

Rated output		 @Ip=±Ipn ±2.0±1% V

Zero voltage

 @Ip=0 1/2Vcc±0.5% V

Reference voltage

 1/2Vcc±0.5% V

Supply voltage		 +5±5% V

Power Consumption

 ≤15 mA

Zero offset voltage		 ≤±20 mV

Magnetic offset		 ±15 ±10 mV

Offset drift		 ≤±1.0 ≤±0.5 mV/℃

output drift		 ≤±1.0 ≤±0.5 mV/℃

Linearity		 @Ip=0-±Ipn ≤1 %FS

Response time		 @50A/μS, 10%-90% ≤3 μS

Bandwidth		 @ -3dB DC～20 KHZ

Galvanic isolation		 @ 50HZ,AC,1min 2.5 KV

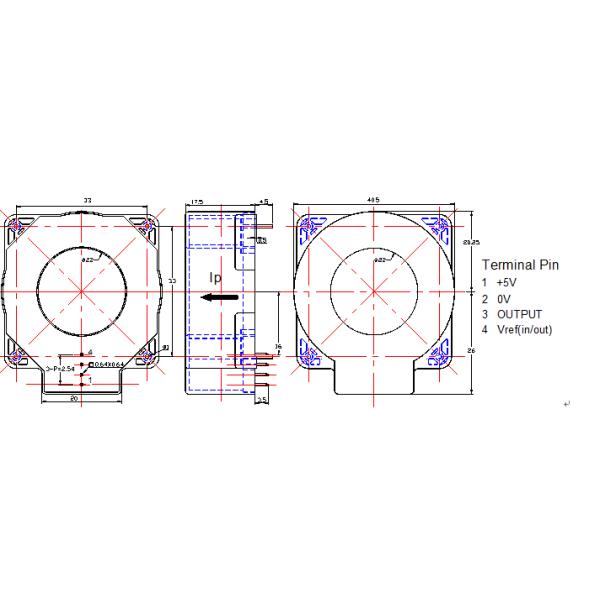

Mechanical dimension(for reference only)

TOKEN Open Loop Hall Effect Current Sensor For BMS Electric Vehicle

Remarks:

1. All dimensions are in mm.

2. General tolerance ±1mm.

Directions for use

When the current will be measured goes through a sensor, the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the sensor)

The output amplitude of the sensor can be adjusted according to users’ requirements.

Custom design in the different rated input current and the output voltage are available.

Standards

  • UL94-V0.
  • EN60947-1:2004
  • IEC60950-1:2001
  • EN50178:1998
  • SJ 20790-2000

General date

Value Unit Symbol
Operating temperature -40 to +85 ºC TA
Storage temperature -40to +125 ºC TS
Mass(approx) 602 g M

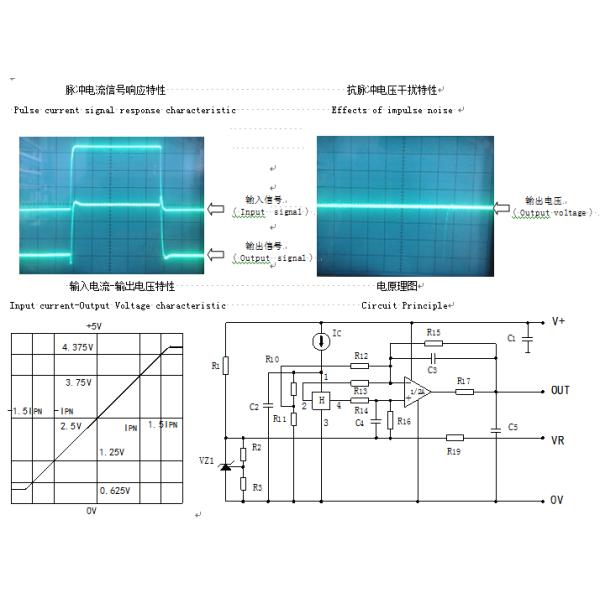

Characteristics chart

TOKEN Open Loop Hall Effect Current Sensor For BMS Electric Vehicle
