Feature:

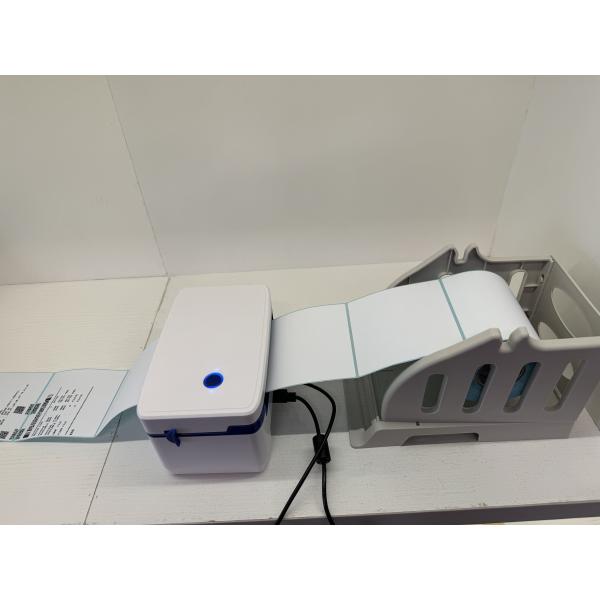

1, 4 inch direct thermal label printer, no need ribbon / ink
2, Easy operation and usage
3, USB and bluetooth interface,enable to use with computer and mobile phone
4, Small size , free external label holder
5, Both roll type and fanfold type thermal label suitable
6, Multiple languages supported
Package:
1, color box package for each printer
2, 12 boxes per carton, Carton size: 57*39*57cm

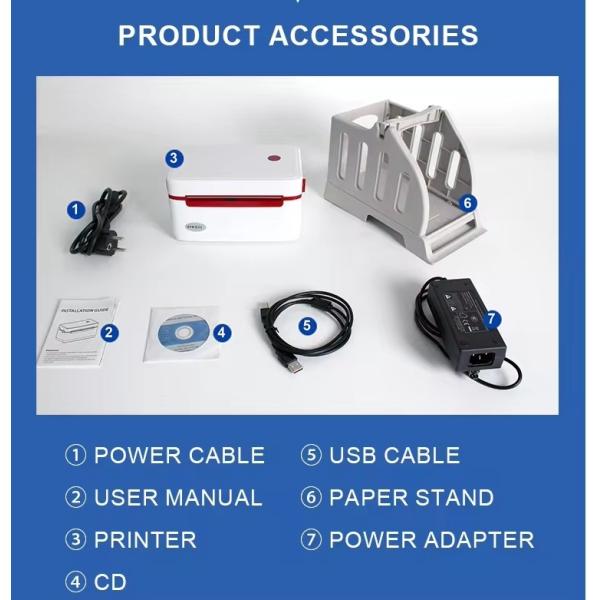

Packing list:
Barcode label printer * 1
Power adaptor and cabel * 1
USB cable * 1
External label holder * 1
User manual * 1
CD * 1
Specification:
Label printer specification | ||
Printing Feature | Resolution | 203DPI |
Print method | Direct thermal | |
Max.print speed | 152mm(6")/s | |
Max.print width | 108mm(4.25") | |
Max.print length | 1778mm(70") | |
Media | Media type | Gap,black mark,continuous,fan-cold and punched hole |
Media width | 32 ~ 118mm | |
Media thickness | 0.06 ~0.25mm | |
Media core diameter | 25.4 ~76.2mm | |
Label roll capacity | 127mm(5") (External label holder supported diameter) | |
Performance Features | Processor | 32-bit CPU |
Memory | 8MB Flash Memory/8MB SDRAM | |
Interface | USB/USB+Bluetooth/USB+Lan/USB+WIFI (optional) | |
Internal fonts | 8 alpha-numeric bitmap fonts,Windows fonts are downloadable from software | |
Barcode | 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8) /CODE39/ITF/CODE93/CODE128 UCC,subsets A,B,C,Codabar,MSI,PLESSEY,POSTNET,China POST |
2D | QR Code, PDF-417,Maxicode,Datamatrix | |
Roation | 0°,90°,180°,270° | |
Emulaion | TSPL,EPL | |
Power Supply | Input | AC 100V-240V 50/60HZ |
Output | DC 24V/2.5A,60W | |
Physical Characteriestics | Dimensions | 220D*180W*162H |
Weight | 1.2KG | |
Lifetime | Print head lifetime | 50km |
