Specifications
OS :
Android 12.0
Memory :
8GB RAM + 128GB ROM
Display :
5 inch
Scanner :
2D Zebra Scanner(Optional with Long Range Scanner)
Protection Grade :
IP67
Optional :
NFC, LF RFID, UHF RFID, Fingerprint
Description

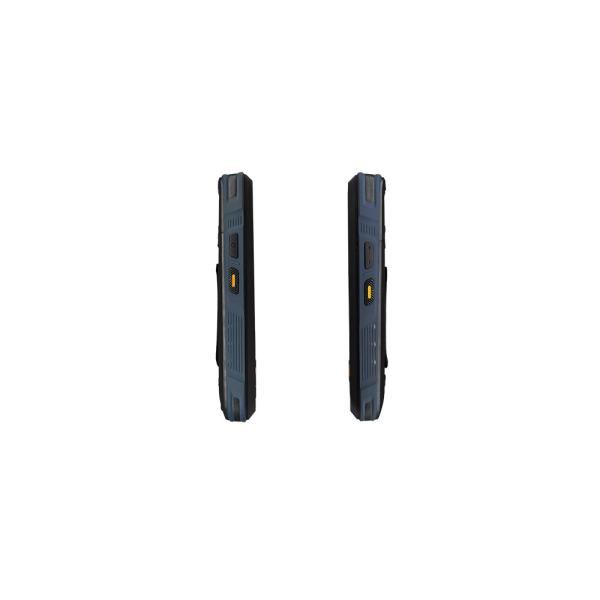

Rugged handheld computer that exhibits extremely powerful performance.
PB-N70 is a rugged handheld computer that exhibits extremely powerful performance. Built with Android 12.0 and a high-performance processor, it features vigorous system configuration. With rich functionality features like barcode scanning, sturdy WiFi performance, NFC, front and rear cameras, it possesses the best price versus performance ratio. PB-N70 is immensely perfect to be implemented in a wide spectrum of industries, including logistics, warehousing, retail, etc.

Specifications

Physical parameter
Size 171(H)*81(W)*24.4(T)mm (26.6mm at the scanner)
Weight

350g (including battery, weight varies with different configurations)
Display 5.0-inch IPS color display, resolution 720*1280
Touch screen

Supports multi-touch; the screen can be operated even if there is water or wearing gloves
Backlight LED backlight
Battery Removable polymer lithium-ion battery, capacity: 5000mAh; 3.7V, normal use time: more than 12 hours, standby time: 300 hours
Card slot Micro SIM card x 1, TF card x 1
Interfaces Type-C USB x 1, supports OTG function
Method to informe Sound, vibration
Keyboard Back, Home, Menu
Audio Microphone, speaker, earpiece
Button Power button, volume +/- button, scan button*3, custom buttons*4
Power Adapter

Charging time is 3-4 hours, using the standard power adapter and data cable supports optional fast charging, fast charging is 2.5 hours
Security PSAM Support ISO7816 standard, support 2 PSAM cards
Sensor Gravity sensor, light sensor, distance sensor, vibration motor
Performance parameters
CPU 8-core, 2.0GHz
Operating system Android 12.0(GMS)
Memory 4GB RAM + 64GB ROM (optional 3GB+32GB or 8GB+128GB)
GNSS Support GPS, Galileo, Glonass, Beidou
Developing Environment
OS Android 12.0OS, supports GMS certification
SDK Software Development Kit
Language Java
Tool Eclipse / Android Studio
Reliability

Drop height

 Within the operating temperature range, all 6 sides can withstand the impact of being dropped to the concrete floor from a height of 1.2 meters 30 times.
Rolling Continuous rolling for 1000 rounds of 0.5m, with 6 contact surfaces still running stably after rolling
Vibration Random (10 Hz to 30KHz); 60 minutes per axis, 3 axes
Static Protection +/- 10kv air discharge; +/-6kv contact electric
Operating Temp. - 20 °C to 60 °C
Storage Temp. - 40 °C to 70 °C
Humidity 95% Non-Condensing
Protection level
 IP67, IEC sealing standards
Data communication
WWAN 2G: GSM(850/900/1800/1900MHz)
3G: WCDMA(850/900/1900/2100MHz)
4G: FDD:B1/B3/B4/B7/B8/B12/B20; TDD:B38/B39/B40/B41
WIFI WIFI frequency: 2.4GHz & 5GHz WIFI protocol: 802.11
a/b/g/n/ac protocol
GPS Beidou, Glonass, GPS, Galileo
Bluetooth Support Bluetooth 2.1+edr/3.0+ HS/4.1+HS+5.0
Transmission distance 5-10 meters
Data Collection
2D Scanner Autonomous Powerful 2D Scanner Engine.
Zebra: SE4710/SE5500.
Honeywell: N6603.
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies:PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal,Dutch Postal (KIX), etc.
Camera Front: 5MP; Rear: 13MP(can be customized); Support Autofocus flash;
Fingerprint Collection method: capacitive press type.
Fingerprint capture area: 13.54mm*18.81mm.
Image resolution: 508dpi.
Image size: 256*360pixel.
Fingerprint capacity: 1000 pieces.
Comparison time: <0.1 seconds.
Fingerprint recognition false recognition rate (FAR): <0.0001%.
Fingerprint recognition rejection rate (FRR): <1%.
FBI fingerprint module: optional.
LF RFID Support 125k and 134.2k, effective recognition distance 3-5cm
NFC Support. Reading distance: 0-5cm (card type depending)
HF RFID 13.56Mhz, support 14443A/B;15693 agreement, effective recognition distance 3-5cm
Inbuilt UHF RFID CHN frequency:920-925Mhz

US frequency:902-928Mhz
EU frequency:865-868Mhz
Protocol standard:EPC C1 GEN2/ISO18000-6C
Antenna parameter:spiral antenna(3dbi)
Card reading distance: according to different labels, the effective

distance is 2~5m
Thermometry Infrared temperature measurement 20:1 (-20℃-360℃), 2500℃

temperature measurement can be customized
Seithmic Measurement Speed, acceleration, displacement
Thermal Imaging 5-meter thermal imaging, can be customized according to needs
Intercom Intercom at different frequencies such as 433MHz/2.4G
Ad hoc network Support
ETC Support
