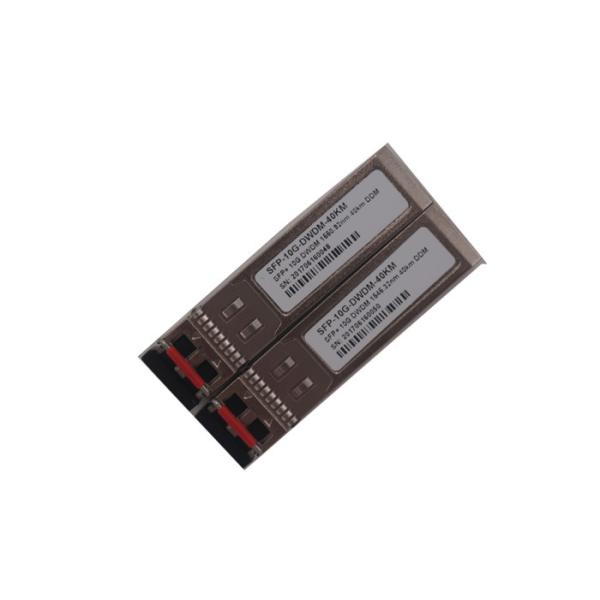

10G wdm SFP Transceiver 120km 10GBASE-BX SFP+ 1330nm 40km optic transceiver

1. Description

• The SFP+module single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.
• The HD-SFP+/10G-ER module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.
• The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

2. Applications

• 10GBASE-LR at 10.3125Gbps
• 10GBASE-LW at 9.953Gbps
• Other Optical Links
• For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
• For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
• 1G/2G/4G/ 8G/10G Fiber Channel applications.

3. Features

• Up to 10.3Gb/s data rates
• 1G/2G/4G/ 8G/10G Fiber Channel applications.
• Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
• Single 3.3V Supply
• Up to 20km on 9/125um SMF
• A:1270nm DFB Laser transmitter,1330nm receiver
• B:1330nm DFB Laser transmitter,1270nm receiver
• Compliant with IEEE802.3ae10GBASE-LR and10GBASE-LW
• SFP+ MSA SFF-8431 Compliant
• Digital Diagnostic SFF-8472 Compliant
• RoHS compliant and Lead Free
• Operating case temperature: Commercial 0°C to 70°C / Industrial -40℃~+85℃
• For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
• For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
