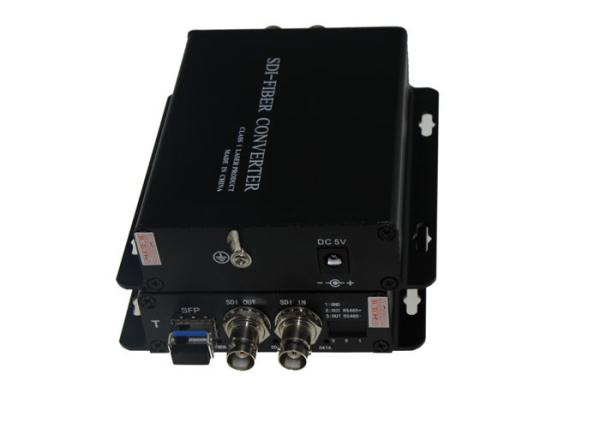

BNC Video To Fiber Converter , HD SDI to fiber optic converter with ST connector
BNC Video To Fiber Converter , HD SDI to fiber optic converter with ST connector
Specifications
Brand Name :
HD
Model Number :
HD-SDI-3G-1V1D-T/RF
Certification :
CE/ROHS/FCC/ISO 9001
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
50000 pcs per month
Delivery Time :
3-7working days after received deposit
Packaging Details :
Packed in carton
Standard :
ANSI X3T12TP-PMD IEEE 802.3/802.3u
Operating mode :
Full duplex/half duplex (only for RS-485/422 interface)
Video Interface :
SDI
Transmission distance :
0-100KM
Wavelenth :
1310nm/1550nm
Power Supply :
AC220V/50Hz
Audio Channel :
Forward/ Reverse Audio
Description

1 / 2 / 4 Channel Video HDSDI Converter Sdi to fiber converters with ST connector

Features

1. Compatible with HD-SDI and ASI signals, SDI / ASI signal adaptive

2. Meet SMPTE259M, SMPTE297M, SMPTE310, SMPTE305 (SDTI) standard
3. Automatically adapt SDI143 Mbps, 177 Mbps, 270Mbps, 360 Mbps, 540Mbps, 1.48Gbitt rate
4. High-precision PCR correction, the average PCR jitter is usually maintained at 20 ~ 60ns
5. Transmitter output power 0 ~ -14dBm (loss determined according to the actual chain of transmission power)
6. By Pathological (extremely harsh environments) Test
7. Support 1080P 30HZ / 1080I / 720P; suitable for HD-SDI monitoring system and the broadcasting system.
8. Full surface mount technology
9. Industrial design, high reliability
10. Support customization and OEM


Technical Specification

Product Name HD-SDI video converter
Model HD-SDI-3G-2V1D-T/RF
Description Compatible with SDI and ASI signal,SDI/ASI signal self-adaption
Ports 2 channel HD-SDI, + 1 channel reverse data(RS485/232/422 data)
Transmission Distance 20km-100km
Fiber Interface FC, 1310nm/1550nm
Video Interface BNC
Reflection loss >15dB
Working Environment Operating Temperature: -40°~ 85°C
Storage Temperature: -45°~ 95°C
Operating Humidity: 5%~95%, non-condensing
EMI Compatiblity FCC Class A, CE
Total power consumption 3w(Input:DC5V2A)
Power Supply AC85-260V/50Hz
Warranty 3 year warranty


Mechanical Structure & Environment

Power DC5V 2A
Power Consumption ≤6W
Working Temperature -15ºC ~65ºC
Storage Temperature -40ºC ~85ºC
Relative Humidity 5%~95% ( no condensation)
MTBF ≥ 100000Hours




Application

  • Urban Intelligent Traffic Monitoring System (ITS), Safe City
  • Highway monitoring system, electronic road monitoring, capture system
  • Large industrial enterprise security monitoring system, network multifunction system
  • Remote multimedia teaching / campus monitoring, video conferencing systems
  • Long-distance radio and television, high-quality video and audio transmission system
  • Building intercom, military communications, military surveillanceBNC Video To Fiber Converter , HD SDI to fiber optic converter with ST connector

Ordering information

Part No. Description Optic Specification Fiber Connector
HD-1HD-20/3G-SDI 1 x 3G-SDI 25/30FPS video/audio + 1 x return RS485 data 2.5G NORMAL SFP / SM / WDM / 20Km Simplex LC
HD-2HD-20/3G-SDI 2 x 3G-SDI 25/30FPS video/audio + 1 x return RS485 data 2.5G NORMAL SFP / SM / CWDM / 20Km Simplex LC
HD-4HD-20/3G-SDI 4 x 3G-SDI 25/30FPS video/audio + 1 x return RS485 data 2.5G NORMAL SFP / SM / CWDM / 20Km Simplex LC
Part No. Description Optic Specification Fiber Connector
HD-1HD-20/HD-SDI 1 x HD-SDI 25/30FPS video/audio + 1 x return RS485 data 1.25G NORMAL SFP / SM / WDM / 20Km Simplex LC
HD-2HD-20/HD-SDI 2 x HD-SDI 25/30FPS video/audio + 1 x return RS485 data 1.25G NORMAL SFP / SM / CWDM / 20Km Simplex LC
HD-4HD-20/HD-SDI 4 x HD-SDI 25/30FPS video/audio + 1 x return RS485 data 1.25G NORMAL SFP / SM / CWDM / 20Km Simplex LC
SDI To Fiber Converter Series broadcasting system / With clock recovery / supporting Pathological Code
Part No. Description Optic Specification Fiber Connector
HD-1HD-20/3G-SDI 1 x 3G-SDI 25/30/50/60FPS video/audio + 1 x return RS485 data 2.97G VIDEO SFP / SM / WDM / 20Km Simplex LC
HD-2HD-20/3G-SDI 2 x 3G-SDI 25/30/50/60FPS video/audio + 1 x return RS485 data 2.97G VIDEO SFP / SM / CWDM / 20Km Simplex LC
HD-4HD-20/3G-SDI 4 x 3G-SDI 25/30/50/60FPS video/audio + 1 x return RS485 data 2.97G VIDEO SFP / SM / CWDM / 20Km Simplex LC
Part No. Description Optic Specification Fiber Connector
HD-1HD-20/HD-SDI 1 x HD-SDI 25/30/50/60FPS video/audio + 1 x return RS485 data 1.485G VIDEO SFP / SM / WDM / 20Km Simplex LC
HD-2HD-20/HD-SDI 2 x HD-SDI 25/30/50/60FPS video/audio + 1 x return RS485 data 1.485G VIDEO SFP / SM / CWDM / 20Km Simplex LC
HD-4HD-20/HD-SDI 4 x HD-SDI 25/30/50/60FPS video/audio + 1 x return RS485 data 1.485G VIDEO SFP / SM / CWDM / 20Km Simplex LC

Company strength

  1. We have the high-tech machine, which could resistance the extreme weather, no matter how cold or how hot the weather is.
  2. Our products already certificated by FCC,CE,RoHS.The quality and the after sales-service could be guaranteed.
  3. We are standard factory , certificated by ISO9001:2015

Company Profile

2009 HANDAR OPTICS Established in Nov 2009 , with professional R&D and sales team who had been working in fiber optical telecommunication field since 2004 .

2010 HANDAR OPTICS started to produce full range of multi-functional video/audio/data/Ethernet/Telephone/Alarm to fiber converters and became to one of the leading manufacturers in this field

2011 HANDAP OTPCIS founded our engineers team to develop the SFP transceivers , and start to produce 155M and 1.25G SFP transceivers at Aug 2011

2012 HANDAR OPTICS started the project for 10G SFP+

2013 HANDAR OPTICS founded our engineers team to develop the Industrial level Ethernet Switch and POE switch . and stated to produce at the end of 2013 .

2014 HANDAR OPTICS started the project for 40G QSFP/CFP/CFP2

2015 HANDAR OPTICS improved our products for analog video/audio/data multiplexer to High-Definition series , include Analog high-definition TVI/CVI/AHD and Digital high-definition SDI/HDMI . We became to the leading manufacturer of such products in Shenzhen China .

2016 HANDAR OPTICS moved to new office with better workshop which allow us to offer better products and services to our partners .

2017 HANDAR OPTICS will keep focusing on fiber optical telecommunications field and offer to all our partners higher quality and better services .
