Specifications
Brand Name :
Horizon laser
Model Number :
DPX-W2000
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
3~5 days
Packaging Details :
Wooden box
Product Name :
Handheld Laser Welding Machine
Laser power :
2000W
Pulse Width: :
5M
Applicable Industries :
Building Material Shops
Application material :
Metal Materials
Usage :
metal welding
Power Supply :
380V 10%/50/60Hz
Cooling Method :
Water Cooliing
Description

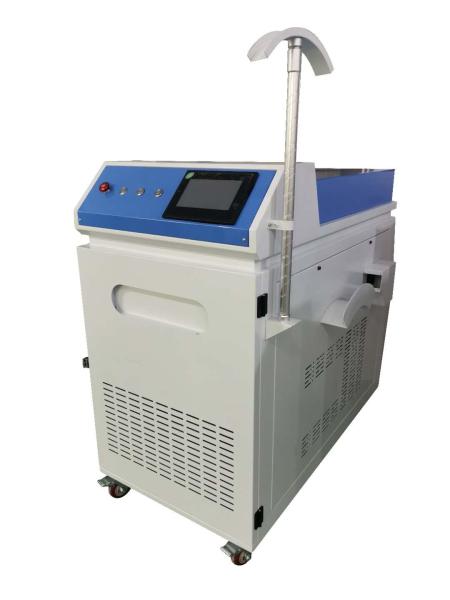

2000 Watt Handheld Laser Welding Machine For Houshold Appliances

Product Description:
Handheld Fiber laser welding machine is a laser welding equipment which couples the high energy laser beams into the optical fiber, after long-distance transmission, then transformed into parallel lights through collimating mirror to be focused on the work piece to implement the welding. The welding methods include vertical welding, paraller welding, stitch welding and so on.

Panters:

Model
BFW SERIES
Laser Type
CW FIBER LASER
Laser Wavelength
1060nm
Laser Maximum Power
500W/1000W /1500W
Max. Melting Penetration Depth
2.0 MM / 3.0MM/4.0mm
Total Power Consumption
8KW <16KW / <18KW
Min line width
≤0.15mm
Cooling System
Water Cooling
Continous working time
24 Hours
Environment temperature
0-35°C
Power requirements
380V/3 Phases /50Hz or 60Hz( 220V/ Single Phase/50 or 60Hz)

Recommended welding thickness for different materials
Material DPX-W1000 DPX-W1500 DPX-W2000
Stainless steel 1.5mm 3mm 5mm
Carbon steel 1.5mm 3mm 5mm
Galvanized sheet 1mm 2.5mm 3.5mm
Aluminum alloy 1mm 2.5mm 3.5mm
brass 1mm 2mm 3mm
Advantages with Handheld Laser Welding Machine:
A. Handheld Laser Welding Machine is easy to handle and don't need the professional welder.
B. With 8-15m fiber wire, Can weld long-distance and large-area parts.
C. High quality and very stable: With a long lifespan to 100000 hours and free of maintance.
D. High efficiency: more than 5 times of the TIG welding with low energy consumption.
E. Various welding proceses: jam welding, seal welding, spot welding, stitch welding and overlap welding .
F:Inappreciable heat-affected zone, little deformation good-looking smoothly welding seam.
G. Little remedial work after welding, high-quality of welding line, precise control of positioning accuracy, small spot focus and automated welding
H: Low cost, no consumables, energy saving and enviroment protection.
I: Can support the different welding wires for stainless steel, Aluminum and Copper

Houshold Appliances 5M 2000W Automatic Laser Welder

1.The work efficiency is 5~10 times that of ordinary argon arc welding.

2. The laser welding machine has stable performance and can be connected to tooling and robots to realize automatic welding

5. OUR SERVICE :
1. 1 year Guarantee for the whole machine.
2. 12 months Guarantee and free spare parts supply during this period.
3. 24 hours on line service
4. 3-7 days lead time
5. We will provide the Instruction Book, Operational manual and Training Video
6. Provide technical support for the whole lifetime on line
7. TT/Ali Trade Assurance payment
8. Shipping By air, DHL, Sea.
