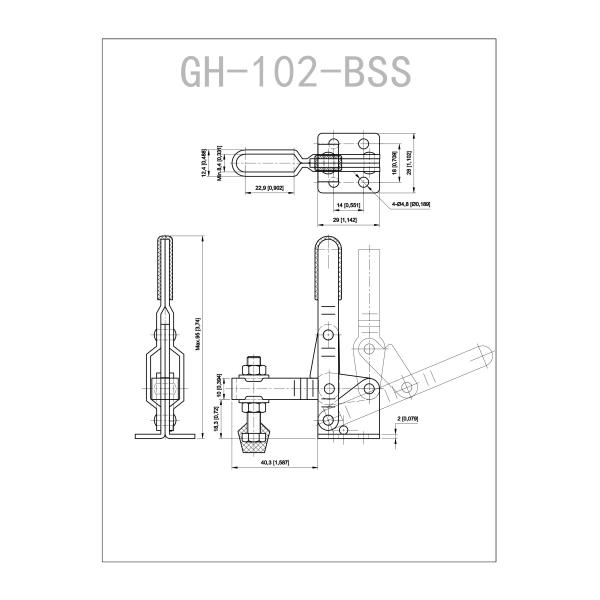

Goodhand Small Duty Stainless Steel Vertical Handle Toggle Clamp GH-102-BSS

Manual Quick Release Vertical Hold Down Toggle Clamp GH-102-BSS

Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Railway Vehicle Industry (including subways and light rail vehicles)

1. Body keel welding is used as fixtures for welding molds.
Main application models: 102-BSS,101-J,10247,22502-B,11421,203-F,12130,702-C,702-D.

2. For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps.

3. Welding of door panels is used as positioning bolts and fixtures for welding jigs. Main application models: 11412,12205,10247,225-D,21382,304-C,304-E etc.

4. Welding of seats is used as fixtures for welding fittings. Main application models: 12265,11421,36020,22235 etc.

5. The production of molded foams for luxury seats is used as fixtures for foaming molds. Main application models: 702-D,40341,304-H etc.

6. The adhesion of luxury auto interior accessories is used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.

Plastic Products Manufacturing Industry

Plastic products are basically divided into two categories: blow molding and injection molding. At present, no manual toggle clamp has been found in blow molding, while a large number of manual toggle clamps have been used for injection molding products. Even single-machine and single-model "injection molding machines" have begun to replace the old screw rod with 7-head manual toggle clamps or corner cylinders for fixing molds.

Notes:
(1) For the single-machine single-model injection molding machine, manual toggle clamp 7-heads and corner cylinders are widely used to replace the old screw rod nut fixing molds.

(2) In the loop injection molding production line, the manual toggle clamp is widely used as open/close locking mechanism for the upper and lower molds on the molds of the production line.

(3) In the production line of injection molding, the manual toggle clamp is widely used as a locking mechanism in its mold.
Main application models:102-BSS, 10448,302-F,36060,303-E,40341,431 etc.

Automobile Industry

1. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly. Main application models: 201,201-A,201-B,101-A etc.

2. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models: 102-BSS,201,201-A,201-B,101-B.

2) used as end caps for foaming molds. Main application models: 304,305 series.

3. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping fixtures for "casting molds"; Main application models: 431,40341.

2) Dashboards, etc. (using PU materials); used as clamping fixtures for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.

4) Lining (with leather, wool cloth materials) is used as fixing fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
