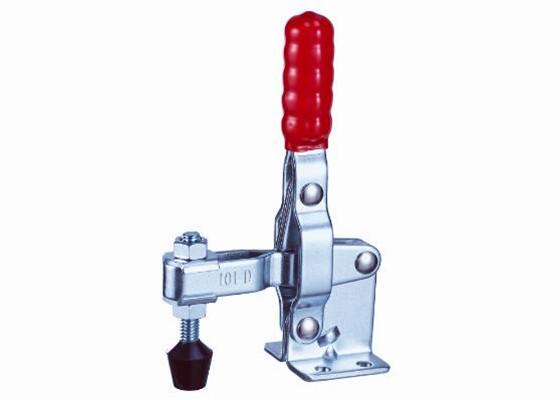

Galvanized Vertical Handle Toggle Clamp Used For Welding Fittings GH-101-D

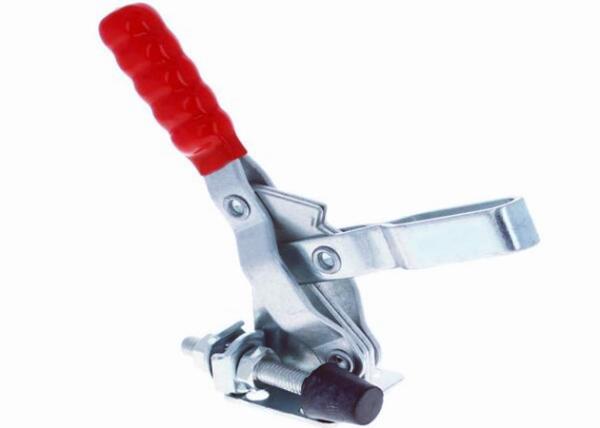

Manual Quick Release Flanged Base Vertical Hold Down Toggle Clamp GH-101-D

Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Automobile Industry

1. Welding of various car seats is used as positioning bolts and fixtures for welding fittings. Main application models: 101-D,11412,12265,102-B,36020,303-E etc.

2. The production of molded foams for luxury car seats is used as fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.

3. The production of various automobile (motorcycle) mufflers is used as fixtures for welding jigs.
Main application models: 11412,10247,12305,22175,25382,36020,303-E,305-H etc.

4. The production of various automobile (motorcycle) carburetors is used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.

5. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly. Main application models: 101-D,201,201-A,201-B,101-A etc.

6. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models: 201,201-A,201-B,101-B.

2) used as end caps for foaming molds. Main application models: 304,305 series.

Electronics Industry

1. Manual toggle clamps are used in the assembly line and testing process of small motors and electric tools.
Main application models: 12050,12050-U,101-A,102-B,301-A,304-C etc.

2. The metal shell of various electrical appliances, such as water heaters, microwave ovens, air conditioners, refrigerators, cabinets, and chassis is quickly clamped on the "welding molds" as a fixture. Main application models: 11412,203-F,225-D,21502-B,102-B,101-D

3. Electrostatic spraying equipment and manual toggle clamps serve as accessories, mainly for barrel cover opening and closing. (In the spraying production line, a manual toggle clamp is sometimes used to fix the processed object).
Main application models: 40323,431,40341,451 etc.

4. One of the production equipment for PCB boards, jet-soldering machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.

5. The manual toggle clamp is used as a component on the "mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.
