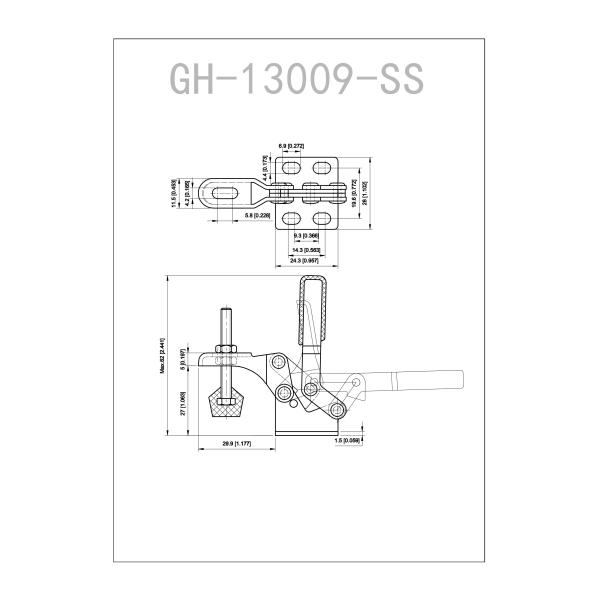

Small Holding Force Stainless Steel Toggle clamp Use For Fix Metal Plate GH13009-SS

Manual Quick Release Vertical Hold Down Toggle Clamp GH-13009-SS

Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Motorcycle Industry

1. Welding of car frames is used as positioning bolts and fixtures for welding molds.
Main application models: 13009SS,12265,11412,11421,101-B,12205,10247,22175,25382,36020,304-E,304-H,303-E,36060,702-C,30509 etc.

2. Steering column: welding of front and rear forks and guard frames is used as positioning bolts and fixtures for welding jigs.
Main application models: 11421,11412,22175,36020,302-F,303-E etc.

3. The production of engine cylinder heads and cylinder blocks is used as fixtures for drilling machines.
Main application models: 25383,25382,12265-A,12132-A etc.

4. Carburetors, mufflers and wire harnesses are all used in the same way as in the "automobile industry."
Note: Manual toggle clamps can be used for all products or parts that are similar to the above points regarding the manufacture of materials and production methods and have the characteristics of continuous mass production.

Railway Vehicle Industry (including subways and light rail vehicles)

1. Body keel welding is used as fixtures for welding molds.
Main application models: 101-J,10247,22502-B,11421,203-F,12130,702-C,702-D.

2. For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps.

3. Welding of door panels is used as positioning bolts and fixtures for welding jigs. Main application models: 13009SS,11412,12205,10247,225-D,21382,304-C,304-E etc.

4. Welding of seats is used as fixtures for welding fittings. Main application models: 12265,11421,36020,22235 etc.

5. The production of molded foams for luxury seats is used as fixtures for foaming molds. Main application models: 702-D,40341,304-H etc.

6. The adhesion of luxury auto interior accessories is used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.

Plastic Products Manufacturing Industry

Plastic products are basically divided into two categories: blow molding and injection molding. At present, no manual toggle clamp has been found in blow molding, while a large number of manual toggle clamps have been used for injection molding products. Even single-machine and single-model "injection molding machines" have begun to replace the old screw rod with 7-head manual toggle clamps or corner cylinders for fixing molds.

Notes:
(1) For the single-machine single-model injection molding machine, manual toggle clamp 7-heads and corner cylinders are widely used to replace the old screw rod nut fixing molds.

(2) In the loop injection molding production line, the manual toggle clamp is widely used as open/close locking mechanism for the upper and lower molds on the molds of the production line.

(3) In the production line of injection molding, the manual toggle clamp is widely used as a locking mechanism in its mold.
Main application models: 10448,302-F,36060,303-E,40341,431 etc.

Features:
1. Installation base divided into two parts and relatively rotating, easy to install
2. Fast and flexible loading and clamping with stable clamping force
3. Adjustable compression force height suitable for different height of door plank and frame
4. Safe and convenient to operate
5. High effciency
6. Small size with strong tightly force
7. Handle is wrapped with rubber, easy to operate
8. Greatly reducing operation time for processing, assembling,fixing
Use with the optional Toggle Clamp Base Plate: Tap your own holes to adapt a wide selection of Toggle Clamps or custom weld Toggle Clamps onto a base plate.
Toggle Clamps offer QuickActing lock and release action for fast clamping, and easier removal of the finished workpiece.
Ideal for production work.
Our company specializes in the manufacture of vertical,horizontal,push-pull and latch-type fast fixture precision stamping meatl parts. It's widely used in electronica,communicationa,sircraft,automotive,welding,solid plastic,wood, sports equipment and other machanical metal parts of the solid given anti-deformation processing and manufacturing which. Greatly improve efficiency,reduce working hours,and increase revenues.
