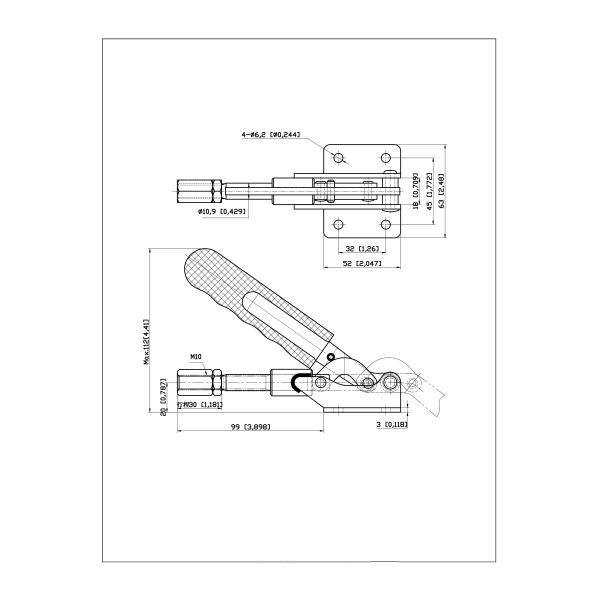

200KG Capacity Push Pull Toggle Clamp Used for Riveting and Welding Jigs GH-31501

Quick Release Push and Pull Type Hold Down Handle Toggle Clamp GH-31501

Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Electronics Industry

1. Electronic toys, game consoles and IC cards.

2. The production of weighing sensors uses manual toggle clamps, with process locations unknown.

3. In the production of electronic wiring, manual toggle clamps are used for embedded wires.
Main application models: 30600HL,30600PR,31200HL,31200PR.

4. For the production of electronic components such as filters and amplifiers, manual toggle clamps are used on test equipment and test jigs.
Main application models: 31501, 101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.

5. A manual toggle clamp is used as fittings in electronic production equipment, such as crest welders, reflow soldering machines, DDC machines, reflow ovens, stretching machines, and screen printing machines.
Main application models: 101-A,102-B,40341,80325 etc.

6. Manual toggle clamps are used in the assembly line and testing process of small motors and electric tools.
Main application models: 12050,12050-U,101-A,102-B,301-A,304-C etc.

7. The metal shell of various electrical appliances, such as water heaters, microwave ovens, air conditioners, refrigerators, cabinets, and chassis is quickly clamped on the "welding molds" as a fixture.

Main application models: 11412,203-F,225-D,21502-B,102-B,101-D

8. Electrostatic spraying equipment and manual toggle clamps serve as accessories, mainly for barrel cover opening and closing. (In the spraying production line, a manual toggle clamp is sometimes used to fix the processed object).
Main application models: 40323,431,40341,451 etc.

9. One of the production equipment for PCB boards, jet-soldering machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.

10. The manual toggle clamp is used as a component on the "mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.

Plastic Products Manufacturing Industry

Plastic products are basically divided into two categories: blow molding and injection molding. At present, no manual toggle clamp has been found in blow molding, while a large number of manual toggle clamps have been used for injection molding products. Even single-machine and single-model "injection molding machines" have begun to replace the old screw rod with 7-head manual toggle clamps or corner cylinders for fixing molds.

Notes:
(1) For the single-machine single-model injection molding machine, manual toggle clamp 7-heads and corner cylinders are widely used to replace the old screw rod nut fixing molds.

(2) In the loop injection molding production line, the manual toggle clamp is widely used as open/close locking mechanism for the upper and lower molds on the molds of the production line.

(3) In the production line of injection molding, the manual toggle clamp is widely used as a locking mechanism in its mold.
Main application models: 31501, 10448,302-F,36060,303-E,40341,431 etc.

Note: Manual toggle clamps can be used for all products or parts that are similar to the above points regarding the manufacture of materials and production methods and have the characteristics of continuous mass production.
