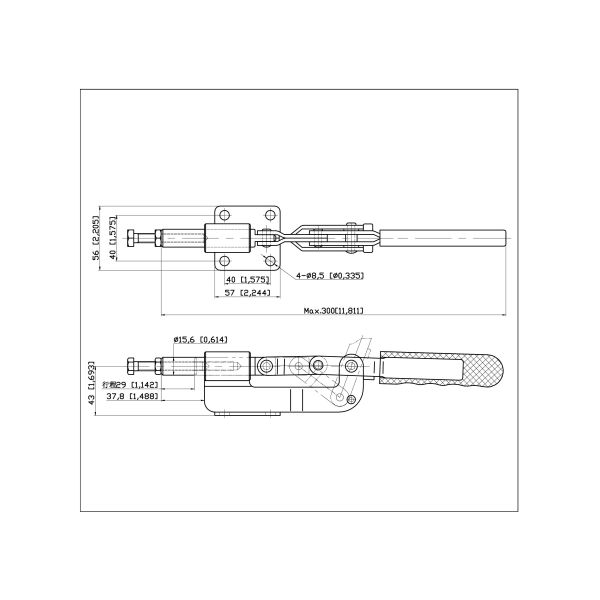

300KG Capacity Quick Release Push Pull Toggle Clamp Used as Metal Fixtures GH-36060

Quick Release Push and Pull Type Hold Down Handle Toggle Clamp GH-36060

Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Electronics Industry

1. Electronic toys, game consoles and IC cards.

2. The production of weighing sensors uses manual toggle clamps, with process locations unknown.

3. In the production of electronic wiring, manual toggle clamps are used for embedded wires.
Main application models: 30600HL,30600PR,31200HL,31200PR.

4. For the production of electronic components such as filters and amplifiers, manual toggle clamps are used on test equipment and test jigs.
Main application models: 101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.

5. A manual toggle clamp is used as fittings in electronic production equipment, such as crest welders, reflow soldering machines, DDC machines, reflow ovens, stretching machines, and screen printing machines.
Main application models: 101-A,102-B,40341,80325 etc.

6. Manual toggle clamps are used in the assembly line and testing process of small motors and electric tools.
Main application models: 12050,12050-U,101-A,102-B,301-A,304-C etc.

7. The metal shell of various electrical appliances, such as water heaters, microwave ovens, air conditioners, refrigerators, cabinets, and chassis is quickly clamped on the "welding molds" as a fixture.

Main application models: 11412,203-F,225-D,21502-B,102-B,101-D

8. Electrostatic spraying equipment and manual toggle clamps serve as accessories, mainly for barrel cover opening and closing. (In the spraying production line, a manual toggle clamp is sometimes used to fix the processed object).
Main application models: 40323,431,40341,451 etc.

9. One of the production equipment for PCB boards, jet-soldering machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.

10. The manual toggle clamp is used as a component on the "mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.

Logistics Equipment Manufacturing Industry

1. For the welding of metal parts such as fork trucks and cabs, manual toggle clamps are used as fixtures for "welding jigs."
Main application models: 11412,10247,12265 etc.

2. For the welding of metal parts of manual movers, platform trucks and stacking trucks, manual toggle clamps are used as fixtures for "welding jigs." Main application models: 11412,203-F,225-D,101-H,101-E etc.

3. For the iron wire welding of cages and cage carriers, manual toggle clamps are used as fixtures and positioning bolts for "welding fixtures of the iron wire. Main application models: 36060,203-F,201,302-F,101-A,304-C etc.

4. For the welding of racks, manual toggle clamps are used as positioning bolts and fixtures for forming and assembling "welding molds."
Main application models: 11412,225-D,203-F,302-F etc.
5. For the welding of metal parts of tool cabinets and mobile cabinets, manual toggle clamps are used as fixtures for "welding molds."
Main application models: 11412,225-D,203-F etc.
6. Barcode readers, scanners, printers.

Note: Manual toggle clamps can be used for all products or parts that are similar to the above points regarding the manufacture of materials and production methods and have the characteristics of continuous mass production.
