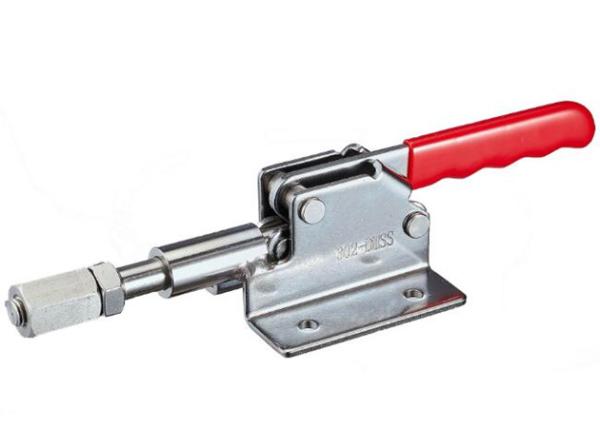

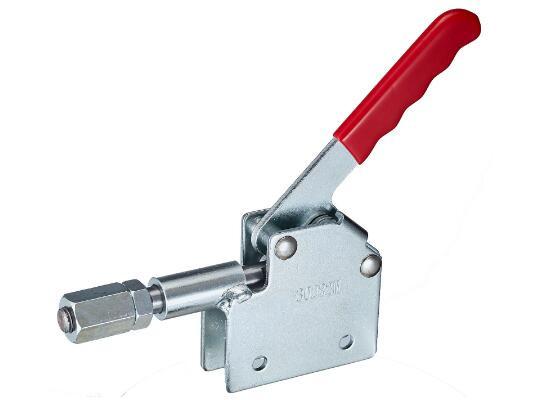

Push Pull Toggle Clamp Straight Line Action Used As Welding Mouds GH-302-DM

Quick Release Push and Pull Type Hold Down Handle Toggle Clamp GH-302-DM

Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Electronics Industry

1. Electronic toys, game consoles and IC cards.

2. The production of weighing sensors uses manual toggle clamps, with process locations unknown.

3. In the production of electronic wiring, manual toggle clamps are used for embedded wires.
Main application models: 30600HL,30600PR,31200HL,31200PR.

4. For the production of electronic components such as filters and amplifiers, manual toggle clamps are used on test equipment and test jigs.
Main application models: 302-DM, 101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.

5. A manual toggle clamp is used as fittings in electronic production equipment, such as crest welders, reflow soldering machines, DDC machines, reflow ovens, stretching machines, and screen printing machines.
Main application models: 101-A,102-B,40341,80325 etc.

6. Manual toggle clamps are used in the assembly line and testing process of small motors and electric tools.
Main application models: 12050,12050-U,101-A,102-B,301-A,304-C etc.

7. The metal shell of various electrical appliances, such as water heaters, microwave ovens, air conditioners, refrigerators, cabinets, and chassis is quickly clamped on the "welding molds" as a fixture.

Main application models: 302-D,11412,203-F,225-D,21502-B,102-B,101-D

8. Electrostatic spraying equipment and manual toggle clamps serve as accessories, mainly for barrel cover opening and closing. (In the spraying production line, a manual toggle clamp is sometimes used to fix the processed object).
Main application models: 40323,431,40341,451 etc.

9. One of the production equipment for PCB boards, jet-soldering machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.

10. The manual toggle clamp is used as a component on the "mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.

Plastic Machinery Manufacturing Industry

Manual toggle clamps are used as fittings for such machines as plastic crushers, vibration screens, and dryers.
Main application models: 431,101-B,40341 etc.

Note: Manual toggle clamps can be used for all products or parts that are similar to the above points regarding the manufacture of materials and production methods and have the characteristics of continuous mass production.

Push-Pull Toggle Clamp

The handle of this clamp moves the securing bar in a straight line. Once the handle is engaged, the securing arm pushes into an object, locks, and holds it in place. Generally, you can lock the clamp in two positions. They are also suited for clamping different objects together, such as pieces of wood and molds.
The push-pull clamp has a superb plunger that travels in and out. As the name suggests, the clamp offers push and pull offers. It may lock in either the pull or push position. It may also be referred to as a straight line or plunger-style clamp.

Basic Mechanics of Toggle Clamp

A toggle clamp is a linkage that can apply a powerful clamping force. The good news is that it requires little effort to lock or even unlock. With its ease of use, it’s no wonder why many people make it a leading option. Typically, this is accomplished thru a geometric trick. This directs the force into the base. But it does not oppose the lock or unlock action. You can look at common styles that demonstrate the trick.
With this geometric trick, you will be fascinated by how a toggle performs from start to finish. This fantastic feature makes accomplishing a task easier than you imagine. While toggles have lots of designs, the operational principle is the same in most cases.
