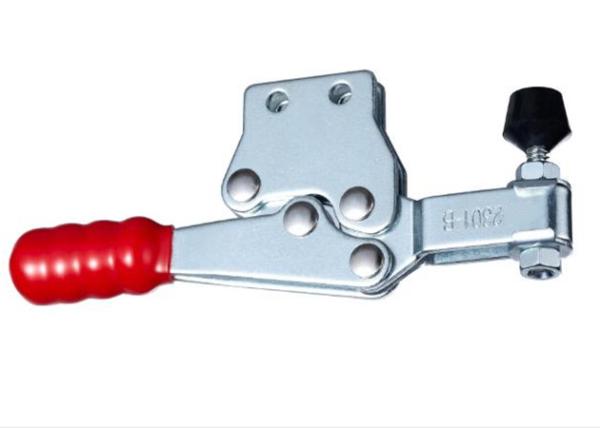

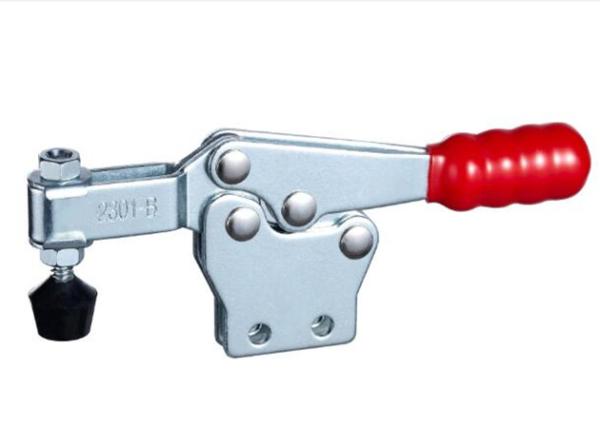

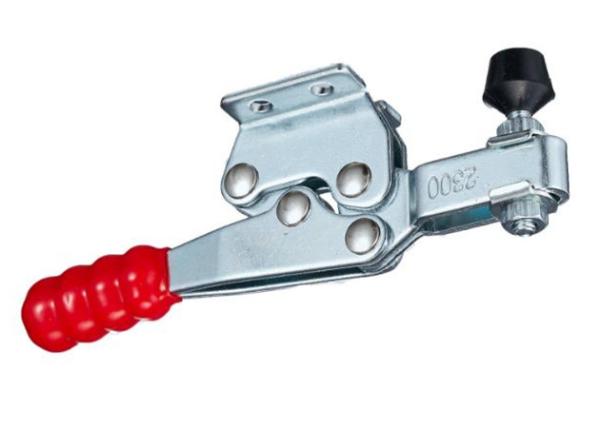

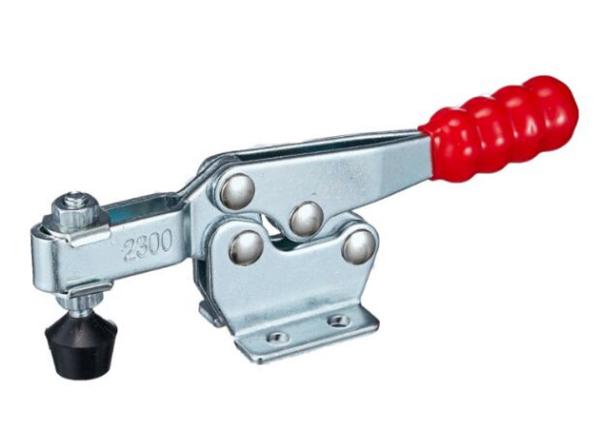

150lbs Holding Capacity Small U Shaped Bar Horizontal Handle Toggle Clamp GH-2300

Horizontal Hold Down Handle Toggle Clamp GH-2300

Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Motorcycle Industry

1. Welding of car frames is used as positioning bolts and fixtures for welding molds.
Main application models: 2300, 12265,11412,11421,101-B,12205,10247,22175,25382,36020,304-E,304-H,303-E,36060,702-C,30509 etc.

2. Steering column: welding of front and rear forks and guard frames is used as positioning bolts and fixtures for welding jigs.
Main application models: 11421,11412,22175,36020,302-F,303-E etc.

3. The production of engine cylinder heads and cylinder blocks is used as fixtures for drilling machines.
Main application models: 25383,25382,12265-A,12132-A etc.

4. Carburetors, mufflers and wire harnesses are all used in the same way as in the "automobile industry."
Note: Manual toggle clamps can be used for all products or parts that are similar to the above three points regarding the manufacture of materials and production methods and have the characteristics of continuous mass production.

Electronics Industry

1. Electrostatic spraying equipment and manual toggle clamps serve as accessories, mainly for barrel cover opening and closing. (In the spraying production line, a manual toggle clamp is sometimes used to fix the processed object).
Main application models: 40323,431,40341,451 etc.

2. One of the production equipment for PCB boards, jet-soldering machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 2300, 101-A,201,20300,21800 etc.

3. The manual toggle clamp is used as a component on the "mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.

4. Electronic toys, game consoles and IC cards.

5. The production of weighing sensors uses manual toggle clamps, with process locations unknown.

6. In the production of electronic wiring, manual toggle clamps are used for embedded wires.
Main application models: 30600HL,30600PR,31200HL,31200PR.

7. In manufacturing batteries (mainly cell phone batteries or stacked cell battery blocks like cell phone batteries, such as laptop batteries; other batteries will also be used, but in small quantities), manual toggle clamps are used in:
(1) the semi-finished electric cores produced are assembled into battery blocks and used in the "assembly fixture" on the assembly line,
Main application models: 101-A,102-B,22100,201-B,36204 etc.
(2) the comprehensive performance of the battery block is tested and used in the "test jig."
Main application models: 101-A,201,20400,20800 etc.

8. In the manufacture of mobile phones (or similar products), manual toggle clamps are used in the:
(1) production of circuit boards.
(2) mobile phone comprehensive performance test. When the mobile phone is assembled without batteries, the comprehensive performance of the mobile phone is tested, with the fixture used in the "test jig."
Main application models: 101-A,101-B.
