Specifications
Brand Name :
YouYuan
Model Number :
YY-T200
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export Wooden Package
PLC Control :
Mitsubishi
Stable Production Speed :
30-60 packs per min
Servo control :
8 sets
Packing products :
Twins packing and single packing
Description

PLC Program Control Automatic Paper Napkin Packing Machine 30-60 packs per min

YY-T200 Automatic Paper Napkin Packing Machine

Description

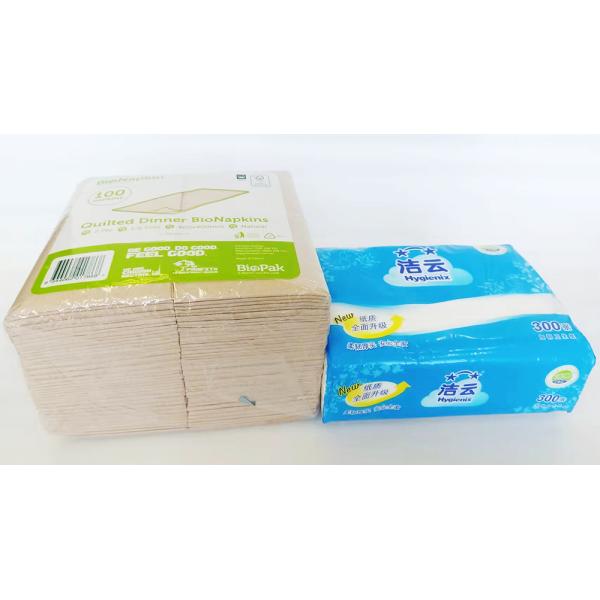

YY-T200 Automatic Paper Napkin Packing Machine is developed for single packaging and twins packaging of facial tissues, napkin tissues, kitchen paper, V-fold paper towels.

This machine adopts 8 sets servos for controlling the movements,they are main pusher,paper feeding,film pulling,film cutting,perforation,paper center sending,paper forwarding,package pressing,dynamic edge guides,siding sealing sewing,side seal lift up & down,film folding lift up & down.With advantages of complete operation configuration,high efficiency,easily operation,wide size applicable range,quick for side changeover,convenient for maintenance,low cost for using etc.

Technical Specification

Features Description Remark
Scope of application Film pack soft drawn facial tissue,hand towel,single pack napkin,twin pack tissue.
Paper sorting mode Automatic Smart Feeding 5 sectional intelligent soft type paper feeding mode
Design production speed ≤65packs/min Relate to packaging size
Stable production speed 50-60packs/min Tissue height:≤90mm,
≤60packs/min Tissue height:≥90mm
Packaging film changing ≤2min Relate to experience and skill
Paper length 125-300mm Can be customize if your product exceed this size
Paper height 60-170mm
Paper width 115-250mm
Moulds 3 sets Standard configuration,sizes are provide by buyer.
Machine dimension L4400mm,W3780mm,H2000mm
Machine weight ≤4000KG
Packaging material Double sides hot seal CPP film
Film thickness 0.04mm-0.05mm
Max.film roll diameter 500mm
Film core diameter 76mm According to international standard
Max.film width 500mm
Compressed air ≥0.5mpa,100L/min Buyer prepare
Power supply 380V/50HZ Can be customize
Total power consumption 15.47KW
Adaptive voltage change +/-10%
I/O input 24VDC
I/O output 24VDC
Machine movement mode 11 shafts servo positioning control Electric cam movement curve
Main transmission mode Electric cam transmission
Machine color and craft Grey,static electric spray coating craft

International color code no.:

RAL7032

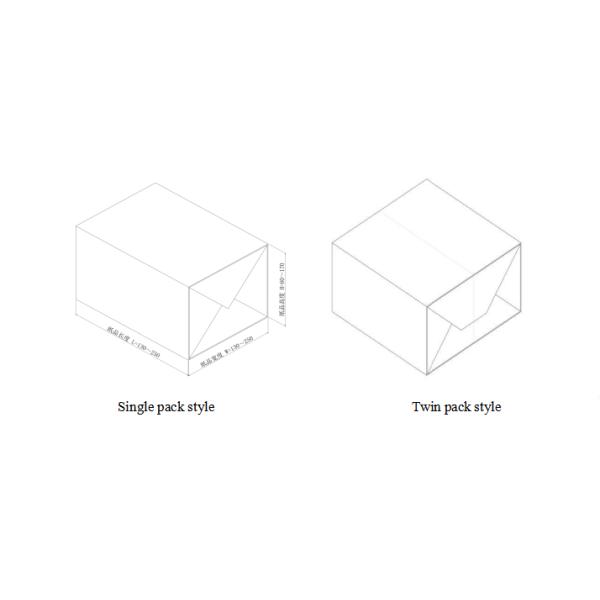

Packing type 3D packing Packaging film overlap sealing,even for both sides

Automatic Smart Feeding Mitsubishi Paper Napkin Packing Machine 3D Packing

Automatic Smart Feeding Mitsubishi Paper Napkin Packing Machine 3D Packing

Automatic Smart Feeding Mitsubishi Paper Napkin Packing Machine 3D Packing

After Sale Services

Spare Parts

YouYuan provides around-the-clock parts support to keep your business moving.

  • 24/7 breakdown support
  • 2,600+ part numbers stocked in our warehouse
  • Expediting for non-stock parts requests
  • Professional team members dedicated to supporting your parts needs

Installation

We're here to get you started on the right foot.

  • Complete installation and start-up support

  • Start-up and calibration support

  • Training
