ZPS-1300 Truck Tire Shredder With Conveyors 50mm Outlet Size 5ton Per Hour Tire Crusher
ZPS-1300 Truck Tire Shredder With Conveyors 50mm Outlet Size 5ton Per Hour Tire Crusher
ZPS-1300 Truck Tire Shredder With Conveyors 50mm Outlet Size 5ton Per Hour Tire Crusher
ZPS-1300 Truck Tire Shredder With Conveyors 50mm Outlet Size 5ton Per Hour Tire Crusher
ZPS-1300 Truck Tire Shredder With Conveyors 50mm Outlet Size 5ton Per Hour Tire Crusher
ZPS-1300 Truck Tire Shredder With Conveyors 50mm Outlet Size 5ton Per Hour Tire Crusher
ZPS-1300 Truck Tire Shredder With Conveyors 50mm Outlet Size 5ton Per Hour Tire Crusher
ZPS-1300 Truck Tire Shredder With Conveyors 50mm Outlet Size 5ton Per Hour Tire Crusher
Specifications
Place of Origin :
Jiangsu China
Brand Name :
HANLV
Certification :
ISO9001, CE
Model Number :
ZPS-1300
MOQ :
1
Price :
Negotiable
Packaging Details :
Film sea packing or wooden crate
Delivery Time :
30 days after deposit
Payment Terms :
TT, L/C
Supply Ability :
100sets / YEAR
Description

Introduction:

LSJ Tire Shredder is used to be shred radial tire and fiber into rire chips of 50×50mm size under normal temperature,the tire needs to be debeaded before shredding.It maily consists of motor,speed reducer,machine frame,shreddingblades,rotary screener,transmission system,etc.

Structure and Principle

1 The shredding blade edges are made of hard alloy after special hardness treatment,wear-proof.The blade edges are made replaceable without dismantling the machine,blades changing and repairing jobs are made easy and not costly and more heavy-duty,advanced technology and high output.

2 The machine adopts low noise,steady and high torque planet-gear speed reducer,easy and safe operation.

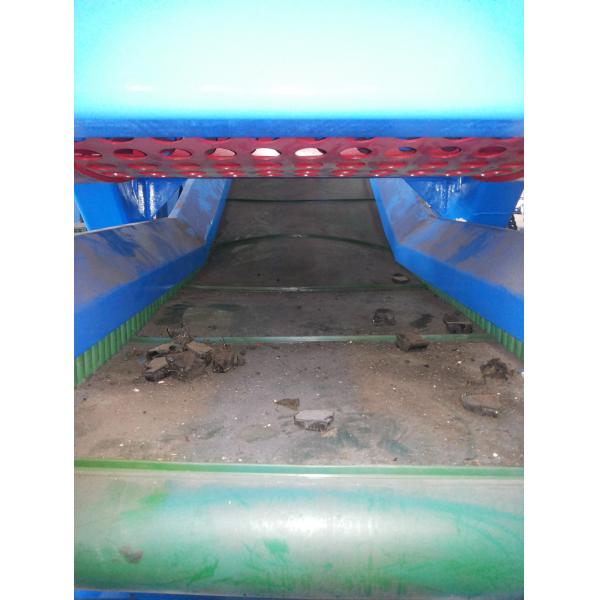

3The rotary screener is of steel net structure which hasd large area for screening qualified size of tire chips to discharge quickly.Low consumption,high output and advanced technology.

Model 1300E 1300
Capacity(T/H) 2~5 2~5
Feeding size(mm) <1250 <1250
Output size(mm) <50×50 <50×50
Motor power(Kw) 45+45+7.5 45+45+7.5
Main shaft speed(rpm) 13 13
Weight(T) 21 21

ZPS-1300 Truck Tire Shredder With Conveyors 50mm Outlet Size 5ton Per Hour Tire CrusherZPS-1300 Truck Tire Shredder With Conveyors 50mm Outlet Size 5ton Per Hour Tire CrusherZPS-1300 Truck Tire Shredder With Conveyors 50mm Outlet Size 5ton Per Hour Tire Crusher
