Stainless Steel 2205 5T/HR Duplex Falling Film Evaporator used Pillow Plate Module

Introduction

The working principle of the plate falling film evaporator is that when the plate falling film evaporator works, the feed liquid enters the distributor from the top of the heating chamber, so that the feed liquid is evenly distributed on both sides of the vertical heating pillow plates and falls in the form of a film while evaporating.

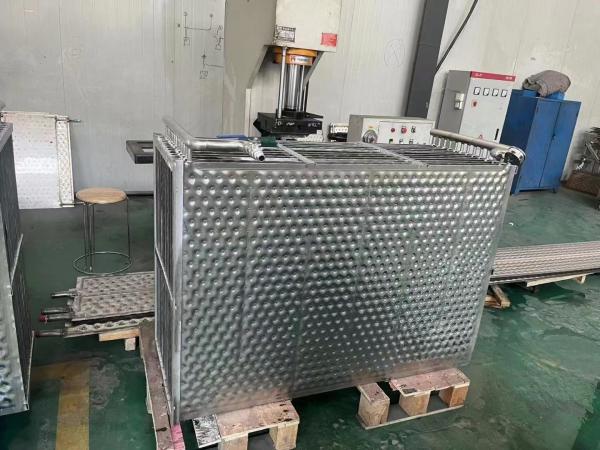

Pillow plate module, one of key parts of Falling Film Evaporator, consists of a group of double embossed pillow plates. which is made of two plates with same thickness, after inflating by nitrogen gas, or high pressure water, the surface of both sides is deformed, increase heat area and reduce energy consumption.

Features

1, not easy to scale

2. High heat transfer coefficient

3. Conducive to the collection and elimination of uncondensed steam.

4. Convenient mechanical cleaning

5. For the special secondary steam channel, the entrainment of mist is reduced by more than 50% compared with the tube type.

6. Plates can be grouped and can be used for different heat sources at the same time.

Technical overview
