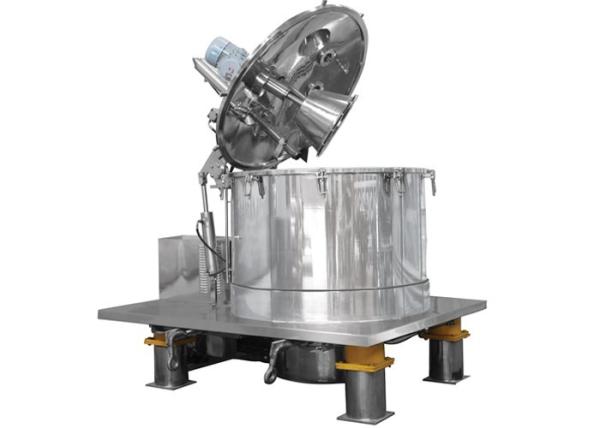

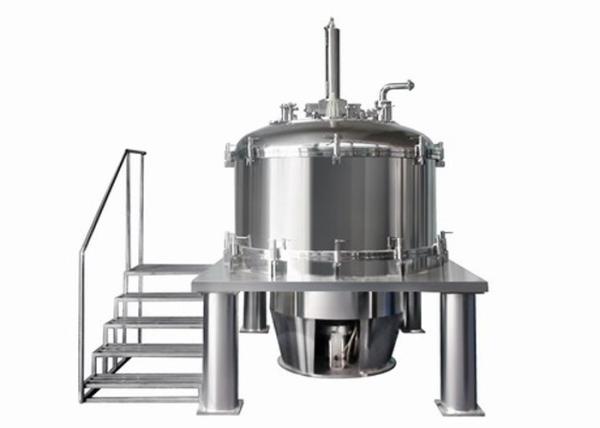

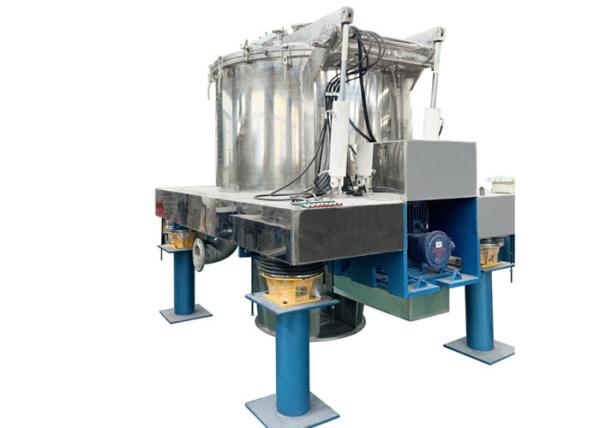

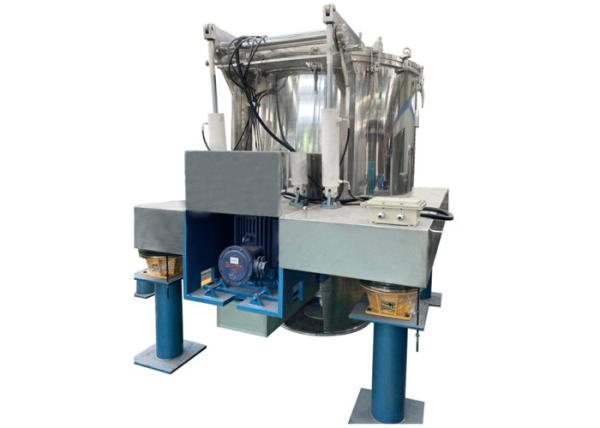

Factory price flat plate centrifuge scraper bottom discharge separator​

Brief introdcution

PPSBDL model flat type centrifuge is designed based on GMP standard and environmental protection sanitary requirement, it is a new model bottom dischage centrifuge. It cancelled traditional suspension support leg, and adopts flat plate balance weight and high viscosity damp vibration isolator without base installation. Inverter controls the motor, it concects directly with the bowl through the motor spindle, which makes the bowl rotating at high speed around itself axis to form centrifugal force field, then the centrifugal force pushes the material equispaced on the bowl to separate the solid and the liquid. The liquid penetrates the solid and the filter screen gap, then it is crossed to the main case space, and discharged from the bottom liquid outlet, the solid material will hold back int the bowl. After processed, the bowl speed reduced, and the scraper would scrape the solid material, discharge it through the outlet on the bottom of bowl.

Main Features
1. Bag-shaking device to clear out residue filter cake
2. Disassemble drum liquid blocking plate, auto-locking, easy replace of filter bag.
3. Built-in gas cylinder design, cramped construction.
4. Self-cooling rotation joint, reliable operating and running.
5. Totally enclosed type solid discharge hopper design, isolated material part with driving device.

Our services
1. 12 months guarantee period from machine arriving date.
2. Our technicians could be dispatched for overseas service.
3. 7*24 hours technical consultation.
4. Your workers could get trained both in our factory and yours.
5. Routine tracing till the machine work properly will be done timely.
6. Your suggestions or any comments & reflection would be treated in priority.
7. Marketing team will visit you during our visit in your country if you require.

Tips:vertical centrifugal pumps,flat bottom centrifuge, bag shaking centrifuge
