Product Description:

Diode Laser.

The semiconductor laser spot welding process is thermal conductivity welding, which is achieved by adjusting the laser power and radiation time to melt the metal material. Due to the uniform distribution of spot energy, a gradual decrease in laser energy gradient can be achieved, thereby solving the problem of porous porosity caused by the collapse of pseudo keyholes at the end of spot welding seams.

Semiconductor lasers can form keyhole effects during continuous welding and have strong penetration ability.

During continuous thermal conductivity welding, the welding process is stable, the surface is smooth, the shape is beautiful, and the weld section is semi circular, which can achieve the welding of metal sheet structural components (butt welding, lap welding, fillet welding, etc.), and the weld width can reach 3.5mm; During continuous deep penetration welding, the welding process is stable, free of spatter, and the weld cross-section is Y-shaped. The strength after welding can meet the requirements for the use of the workpiece.

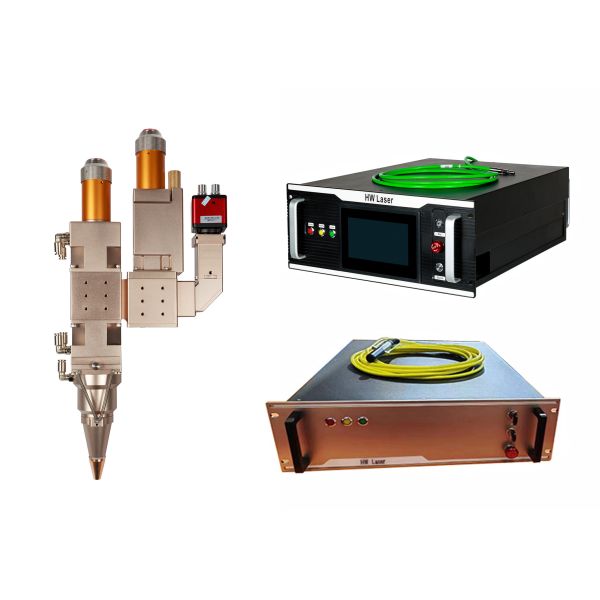

Hybrid Diode and Fiber Laser Welding

Semiconductor lasers are combined with single-mode continuous fiber lasers to achieve different weld cross-sections (semi circular, V-shaped, U-shaped, Y-shaped) through different laser energy ratios. They are widely used for sealing welding of new energy power battery shells and packaging welding of filters.

Features:

1.Reduce welding defects, Improve welding efficiency.

2.Cover all of laser wave.

3.Has great advantages for welding middle-thick highly reflective materials like aluminum and copper.

4.Special for welding cover of power battery.

Diode laser (915nm) and fiber laser (1064nm) Hybrid-laser welding can achieve diode laser source and fiber laser source coaxial recombination. It is used in thick and highly reflective metal welding (gold, silver, copper, aluminum). The reflective materials have more highly absorptivity for diode-fiber hybrid laser make less spark in welding process and achieve quality welding and nice welding surface.

Widely used in cover of power battery seal welding, with good quality and smooth welding surface to perfectly resolve battery leakage of explosion point. Greatly improve welding efficiency.

Technical Parameters:

Applications:

Semiconductor lasers have been widely used in metal material welding due to their excellent performance. Due to its large light spot, uniform distribution of beam quality, and high absorption rate of metal materials, it is suitable for welding thin metal plates, such as household hardware, mechanical products, and automotive components, due to its stable molten pool, no splashing, and smooth and beautiful weld surface during the welding process. The following is an introduction to the application of semiconductor lasers in welding technology.

Support and Services:

We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.

• Troubleshooting and repair
• Software updates and upgrades
• Performance optimization and maintenance
• Replacement parts
• User training and education

If you have any questions or need assistance with our Handheld Welding Head products, please contact us.

HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.

Packing and Shipping:

FAQ:

Q: What is the Laser source brand of Diode laser and Fiber laser?

A: The Laser sources brand name is HanWei.

Q: Why Choose HanWei Hybrid laser welding machine?

A: High efficiency, Deep penetration, Fast welding, Stable quality.

Q: Where is the Place of Origin of the Metal Laser Welding Machine?

A: Shenzhen, China.

Q: What is the Certification of the Metal Laser Welding Machine?

A: CE&FDA.

Q: What is the Minimum Order Quantity of the Metal Laser Welding Machine?

A: The Minimum Order Quantity is 1.
