Specifications
Brand Name :
HanWei
Model Number :
HW-20-60150
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
6000 Set per year
Delivery Time :
5 work days
Packaging Details :
Welding head: 9Kg. 39*22*29cm. Wire feeding device: 17Kg. 70*40*65cm. Paper Box.
Product Name :
Handheld Welding Head Single Motor
Head Weight :
0.7 Kg
Laser Shape :
Line "-"
Laser Frequency :
400 Hz
Welding Bead :
0.5-5mm Adjustable
Cooling Method :
Water Cooling
Description

Metal Welding Instrument Handheld Laser Head Welding Wire Steel And Aluminum

Handheld Welding Head Single Motor Handheld Welding Description:

Laser welding is a new and advanced welding method, it is one of important aspects in material processing technology application.

The single motor wobble handheld welding is new welding type of laser welding field, the laser beam can be swing by motor lens to form more widely welding width and depth.The working principle is : Through the swing beam to reform output laser beam shape to get the output beam size more bigger and more stronger penetrating power.

The Handheld Welding Head single motor wobble type of Fiber Laser Welding Machine is exclusively designed and manufactured by HanWei Laser.

The company HanWei Laser Equipment Co.,Ltd is one of the only a few supplier around the world, who can research and develop,manufacturing the whole set of handheld laser welding machine : Handheld welding head → Laser control system → Wobble control system → Wire Feeding device→ Laser Source.

HanWei Laser develops and manufactures main part of laser welding machine such as laser control system, laser welding head. and also provides detail accessories and whole laser welding solution for customers : From consumable parts such as protective lens, nozzle to automatic and robot laser welding solution :

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

Handheld Welding Head Specification:
Product Name Handheld Welding Head
Usable Laser Power 1000W-3000W
Laser Source Fiber Laser Source
Interface type QBH
Accessible wave range 1064 nm
Net weight 0.7 kg
Laser head size 216*287 mm
Laser head packing size 39*22*29cm.
Laser head packing gross weight 9kg
Standard single route wire feeding device packing Info 17Kg. 70*40*65cm.
Double route wire feeding device packing Info 30Kg. 79*45*70cm.
Usable laser source Most of laser source
Handheld Welding Head Features and Advantages:
*Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
*The control system is very easy and requires little prior knowledge on the part of the operator.
*With safety lock function to ensure safety process.
*Internal structure of welding head with extremely simple design, easy to operate and maintenance.
*Adjustable Laser beam range: 0.5 - 5 mm.
*Support standard single route wire feeding.
*Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.
*Laser beam scan mode: Various shape.
*Supply Four welding modes (CW – Continue, Adjust laser out frequency, Argon weld type, QCW mode peak power output).
*Independent Research and Develop all products:Laser head, Control system, Wire Feeding device. Safety lock.
*Digital setting parameters in welding machine interface.
*Support different languages.
*All performance features can be customized to meet individual customer requirements.

Handheld Welding Head Product Show:

Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

Laser welding head, control system, monitor, power supply and spare parts. With safety lock function to ensure safety process.

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

Standard single route wire feeding device

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

Paper Box Packing

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

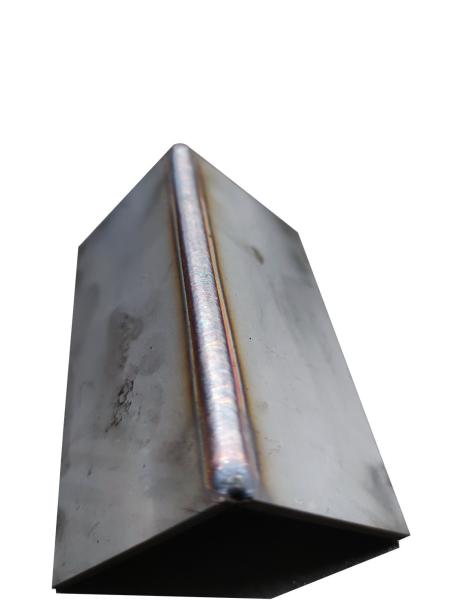

Welding Sample Show

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

Nozzle

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum

Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.

400Hz Handheld Welding Head , Fiber Laser Head With Wire Steel Aluminum
