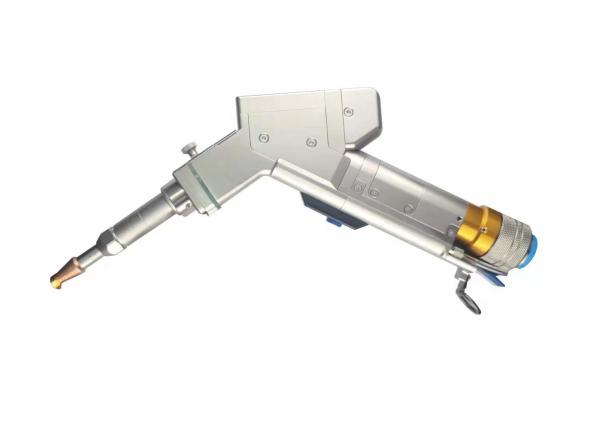

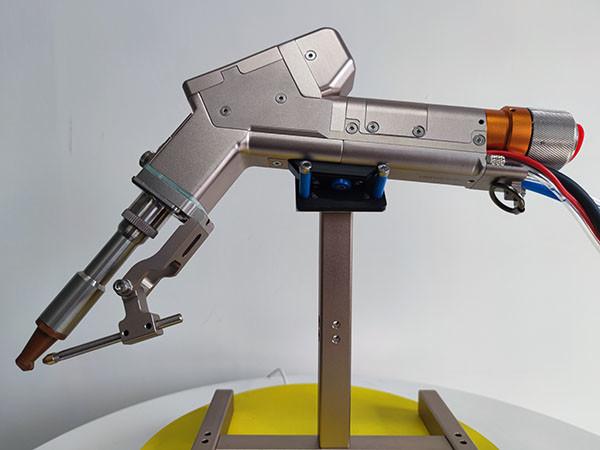

Portable Fiber Laser Welding Head Water Cooling Single Motor
Portable Fiber Laser Welding Head Water Cooling Single Motor
Portable Fiber Laser Welding Head Water Cooling Single Motor
Portable Fiber Laser Welding Head Water Cooling Single Motor
Portable Fiber Laser Welding Head Water Cooling Single Motor
Portable Fiber Laser Welding Head Water Cooling Single Motor
Portable Fiber Laser Welding Head Water Cooling Single Motor
Portable Fiber Laser Welding Head Water Cooling Single Motor
Specifications
Brand Name :
HanWei
Model Number :
HW-20-60150
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
5 work days
Packaging Details :
Welding head: 9Kg. 39*22*29cm. Wire feeding device: 17Kg. 70*40*65cm. Paper Box.
Price :
Negotiation
Supply Ability :
6000 Set per year
Product Name :
Fiber Laser Welding Head Single Motor Handheld Head
Head Weight :
0.7 Kg
Laser scanning shape :
Line “-”
Welding width :
0.5~5mm adjustable
Control System :
Touch Monitor Digital Control Sysytem
Cooling Method :
Water Cooling
Automatic and Robot :
Support
Wire Feeding :
Support
Description

Fiber Laser Welding Head for Industrial Applications Handheld Laser Welding Type

Fiber Laser Welding Head Single motor Wobble Handheld Laser Head Description:

The company HanWei Laser Equipment Co.,Ltd is one of the only a few supplier around the world, who can research and develop,manufacturing the whole set of handheld laser welding machine : Handheld welding head → Laser control system → Wobble control system → Wire Feeding device→ Laser Source.

Portable Fiber Laser Welding Head Water Cooling Single Motor

The Handheld Laser Welding Head with its user-friendly small size, light in weight, large welding bead advantages is very popular in the laser welding industry.
HanWei Laser Independent develop the full set handheld laser welding head and control system put on the market. The Laser Head and control system adopt the safety lock: Output the laser only when the nozzle touch the workpiece to prevent harming others.

Portable Fiber Laser Welding Head Water Cooling Single Motor

The handheld laser welding head adopt drawer type of protection lens setting for convenience of users themselves for a replacement.

Portable Fiber Laser Welding Head Water Cooling Single Motor
The Handheld Laser Welding Head single motor wobble type with laser welding range adjustment, light weight, more depth of fusion advantages to adapt to use in different scenes.

Fiber Laser Welding Head Specification:
Model HW-20-60150
Usable Laser Power 1500W-3000W
Welding Thickness 10mm Steel
Welding Materials StainlessSteel, Aluminum
Interface type QBH
Accessible wave range 1064nm
Laser Head weight 0.7 kg
Laser head size 216*287 mm
Robot and Automatic Welding Solution Support
Laser head packing size 39*22*29cm.
Laser head packing gross weight 9kg
Standard single route wire feeding device packing Info 17Kg. 70*40*65cm.
Double route wire feeding device packing Info 30Kg. 79*45*70cm.
Usable laser source Most of laser source

Fiber Laser Welding Head Features and Advantages:
*Extremely Light in weight.
*User-friendly holding design.
*Simple control system.
*Safety switch function.
*Simple structure is easy to maintenance.
*Adjustable Laser beam range: 0.5 - 5 mm.
*Steel wire, Aluminum wire feeding support.
*Laser beam scan mode: Line “-”.
*Supply Four welding modes (CW – Continue, Adjust laser out frequency, Argon weld type, QCW mode peak power output).
*Signal cable customized. 50m length possible.
*Support customized languages in control system.
*All performance features can be customized to meet individual customer requirements.

Fiber Laser Welding Head Product Show:

Portable Fiber Laser Welding Head Water Cooling Single Motor

Portable Fiber Laser Welding Head Water Cooling Single Motor

Portable Fiber Laser Welding Head Water Cooling Single Motor

Portable Fiber Laser Welding Head Water Cooling Single Motor

Portable Fiber Laser Welding Head Water Cooling Single Motor

Paper Box Packing

Portable Fiber Laser Welding Head Water Cooling Single MotorPortable Fiber Laser Welding Head Water Cooling Single Motor

Welding Sample Show

Portable Fiber Laser Welding Head Water Cooling Single Motor

Portable Fiber Laser Welding Head Water Cooling Single Motor

Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.

Portable Fiber Laser Welding Head Water Cooling Single Motor

Welding Head Size

Portable Fiber Laser Welding Head Water Cooling Single MotorPortable Fiber Laser Welding Head Water Cooling Single MotorPortable Fiber Laser Welding Head Water Cooling Single MotorPortable Fiber Laser Welding Head Water Cooling Single Motor

Nozzle

Portable Fiber Laser Welding Head Water Cooling Single Motor

Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.

Portable Fiber Laser Welding Head Water Cooling Single Motor
