Fiber Handheld Single Motor Laser Welding Machine for Steel / Stainless Steel and Aluminum
Fiber Handheld Single Motor Laser Welding Machine for Steel / Stainless Steel and Aluminum
Fiber Handheld Single Motor Laser Welding Machine for Steel / Stainless Steel and Aluminum
Fiber Handheld Single Motor Laser Welding Machine for Steel / Stainless Steel and Aluminum
Fiber Handheld Single Motor Laser Welding Machine for Steel / Stainless Steel and Aluminum
Fiber Handheld Single Motor Laser Welding Machine for Steel / Stainless Steel and Aluminum
Specifications
Brand Name :
HanWei
Model Number :
HW-20-60150
Certification :
CE
Place of Origin :
Shenzhen. China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Laser Power :
Up to 3000W
Welding Materials :
Steel / Stainless Steel / Aluminium
Welding Beam Size :
0-5mm Adjustable ( 0-10mm option )
Electrical Input Voltage :
220v 50Hz / 60Hz
Collimation Focal Length :
60mm
Focusing Focal Length :
150mm
Laser Output Mode :
4 mode ( CW, PWM, QCW, Argon )
Cooling water :
Purified water
Feeding Wires :
0.8&1.0&1.2&1.6mm wire feeding ( 2.0mm wire feeding option )
Double Route Wire Feeder :
Option (Same time double route feeding)
Description

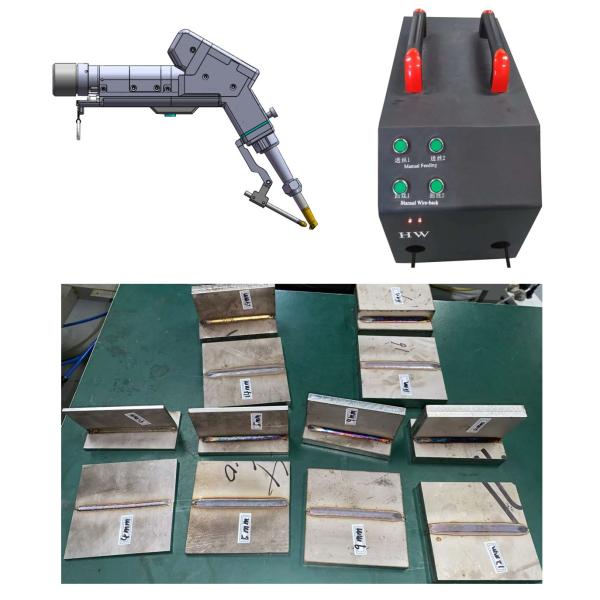

Fiber Handheld Single Motor Laser Welding Machine

Handheld Laser Welding Machine Description:

The Handheld Single Wobble Welding Head represents a significant leap in welding technology, particularly for welding steel, stainless steel, and aluminum. This advanced device is equipped with four laser output modes: CW, PWM, QCW, and Argon.
The CW mode offers a continuous and stable laser emission, which is essential for creating precise and reliable welds on steel, stainless steel, and aluminum. It ensures a seamless welding process, providing a steady energy flow for optimal results. The PWM mode, with adjustable pulse width modulation, allows for fine-tuning of the weld characteristics to meet the specific requirements of these three metals, regardless of their different thicknesses. The QCW mode combines high peak power and moderate average power, making it highly efficient in handling various welding tasks on steel, stainless steel, and aluminum, from thin aluminum sheets to thick steel and stainless steel parts, while minimizing heat-affected zones. The Argon mode, designed to work with argon gas, is crucial for achieving high-quality welds on stainless steel and aluminum, reducing oxidation and impurities and enhancing the appearance of the welds.
When welding steel, stainless steel, and aluminum, this welding head excels. It produces clean, precise, and strong weld seams with minimal spatter and distortion. The welding arc is stable, enabling smooth and continuous welding. Whether dealing with thin or thick sections of these materials, it achieves excellent fusion, ensuring the durability and integrity of the welded joints. Thus, it can easily meet the strict quality demands of a wide range of welding projects, from assembling delicate aluminum electronic components to fabricating heavy-duty steel and stainless steel industrial structures.

Fiber Handheld Single Motor Laser Welding Machine for Steel / Stainless Steel and Aluminum

Handheld Laser Welding Machine Features:

  • Product Name: Fiber Laser Welding Gun
  • Handheld Laser Gun Weight: 0.7kg
  • Laser Power: Up to 3000w
  • Laser Beam Size: 0~5mm Adjustable
  • Welding Materials: Steel / Stainless Steel / Aluminium
  • Handheld Laser Gun Materials: Aluminium alloy & Stainless Steel
  • Welding Beam Form: Line “一”
  • Fiber Connector: QBH
  • Positioning: Red Guide Beam
  • Cooling method: Water Cooling

The Fiber Laser Welding Head, an essential component of the handheld single wobble welding system, presents a high-power Fiber Laser Gun equipped with a QBH fiber connector. The laser beam size is adjustable from 0 to 5mm, accompanied by a red guiding beam for accurate positioning. Weighing merely 0.7kg, it provides remarkable convenience and excellent portability. The handheld single wobble design endows it with exceptional flexibility, enabling it to effortlessly manage diverse welding angles and intricate operations. Its human-oriented design also enhances the operator's comfort during prolonged usage.
Featuring an ergonomic design, it not only fulfills elaborate welding demands but also takes into account both the functionality in welding and the comfort over extended periods. Its lightweight and compact structure ensures a comfortable grip and can easily accommodate different welding tasks in various work environments, be it large-scale manufacturing in factories or outdoor on-site maintenance work. It is, therefore, an ideal choice for both delicate and heavy-duty welding operations.

Handheld Laser Welding Machine Technical Parameters:

Product Name

Handheld Single Motor Laser Welding Machine

Welding Power

Up to 3000W

Welding Beam Size

0-5mm Adjustable ( 0-10mm option )

Feeding Wires

Standard type : 0.8&1.0&1.2&1.6mm wire ( Option: 2mm wire )

Double Route Wire Feeder

Option ( Same time double route feeding )

Welding Beam Form

Line " 一 "

Fiber Connector

QBH

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Handheld Laser Gun Weight

0.7kg

Welding Parameter Save

30 kinds of different welding parameter save

Gas

Argon / Nitrogen

Fiber Handheld Single Motor Laser Welding Machine for Steel / Stainless Steel and Aluminum

Handheld Laser Welding Machine Application Advantages:

The HanWei HW-20-60150 handheld welding machine, powered by CW, PWM, QCW, and Argon laser modalities, ushers in a novel echelon of welding proficiency.
CW discharges a constant laser for exceedingly precise and stable welds that are indispensable in delicate tasks. PWM's adjustable pulse width modulation facilitates effortless accommodation to assorted metal thicknesses and intricate configurations. QCW, by amalgamating high peak and moderate average power, manages thin foils to thick slabs with efficacy. The Argon mode capitalizes on argon's inert property to curtail oxidation, begetting impeccable and long-lasting welds.
This machine's mobility affords on-site expediency, and its wireless functionality augments productivity, rendering it a cornerstone in construction, manufacturing, and repair undertakings.
The handheld single wobble version, augmented by these modes, outperforms conventional welding techniques when it comes to slender metals such as stainless steel, steel, and aluminium. Its ergonomically designed, lightweight welding head ensures a cozy and firm hold. With a safety latch and touch-out light, it is both user-intuitive and secure even for novices. It fabricates first-rate welds expeditiously, without blemishes or discoloration, and its anti-interference and self-developed control system ensure dependable operation in a wide gamut of applications, spanning from electronics to heavy industry sectors.
Handheld Laser Welding Machine Packing:
  • One User Manual
  • One Fiber Laser Welding Head​
  • One Controller
  • One 15v Power Supply
  • One Touch Screen Monitor
  • One Safety Switch Clip
  • A set of Connection Cables and Line
  • Seven kinds of nozzles
  • Two Protective Lens
  • One Wire feeding device

Fiber Handheld Single Motor Laser Welding Machine for Steel / Stainless Steel and Aluminum

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. has successfully developed a series of welding laser products that meet international advanced standards. For example, the AMB spot ring spot welding machine has a technical solution that is unparalleled among global enterprises. The 'AMB spot ring spot + blue light composite swing welding machine' not only fills the domestic gap but also leads the world. It addresses the problems of inconsistent laser welding, rough welding surfaces, and spattering when processing highly resistant materials like copper and gold. The 'AMB spot ring spot + semiconductor composite welding machine' solves the challenges of welding speed and the uniformity of fusion depth for aluminum materials in power batteries. The'semiconductor + single lamp single rod 600W composite laser welding machine' overcomes the difficulties of low productivity, poor welding quality, and slow processing speed in power battery sealing nail welding.

Hanwei Laser's products have extensive applications in various fields such as new energy batteries, automotive, automotive parts, electronic circuits, fiber optic communication equipment, mobile phones, household appliances, kitchen and bathroom hardware, precision instruments, medical devices, solar energy, the eyewear industry, and the motor industry. In many of these industries, a large number of products exhibit an unmatched welding performance.
