2000W Air-Cooled Welding Machine For Welding Stainless Steel / Steel And Aluminum
2000W Air-Cooled Welding Machine For Welding Stainless Steel / Steel And Aluminum
2000W Air-Cooled Welding Machine For Welding Stainless Steel / Steel And Aluminum
2000W Air-Cooled Welding Machine For Welding Stainless Steel / Steel And Aluminum
2000W Air-Cooled Welding Machine For Welding Stainless Steel / Steel And Aluminum
2000W Air-Cooled Welding Machine For Welding Stainless Steel / Steel And Aluminum
Specifications
Brand Name :
HanWei
Model Number :
HW-20-60150
Certification :
CE
Place of Origin :
Shenzhen. China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Laser Power :
2000W
Welding Materials :
Steel / Stainless Steel / Aluminium
Electrical Input Voltage :
220v 50Hz / 60Hz
Handheld Laser Gun Weight :
0.7 Kg
Welding Beam Size :
0-5mm Adjustable ( 0-10mm option )
Collimation Focal Length :
60mm
Focusing Focal Length :
150mm
Welding Thickness :
4mm Stainless steel Full Penetration
Feeding Wires :
0.8&1.0&1.2&1.6mm wire feeding ( 2.0mm wire feeding option )
Laser Output Mode :
4 mode ( CW, PWM, QCW, Argon )
Welding Parameter Save :
30 kinds of different welding parameter save
Description

Air-Cooled Welding Machine for Welding Stainless Steel / Steel and Aluminum

Air-Cooled Welding Machine for Welding Stainless Steel / Steel and Aluminum Description:

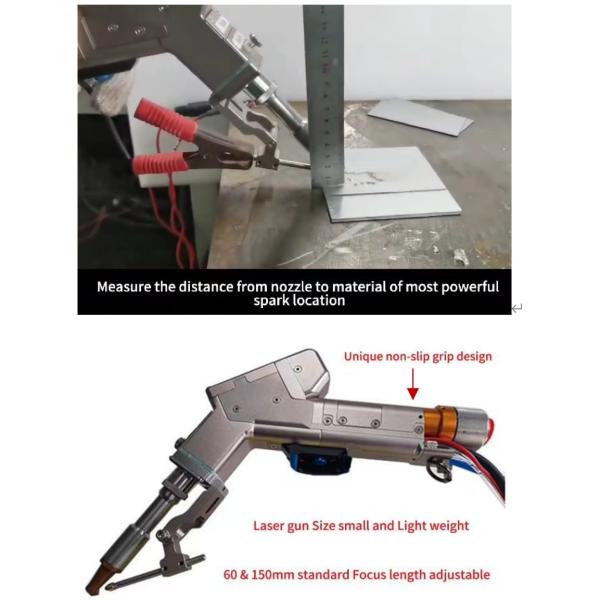

The Handheld Single Wobble Welding Head is an extremely advanced welding device. Guided by a user-centered design concept, it skillfully tackles complex welding requirements, especially in the welding of stainless steel, carbon steel, and aluminum. It painstakingly considers the practical elements of the welding operation and the convenience during extended periods of use, offering a more expert and accurate operational mode for welding assignments.
The welding head features a compact, lightweight, and human-factor-designed structure, guaranteeing a comfortable and reliable hold. It can be easily adjusted to fit various welding tasks in a broad spectrum of working conditions. Whether it is mass production in industrial plants or outdoor on-site repair work related to stainless steel, carbon steel, or aluminum, it is able to achieve satisfactory results.

2000W Air-Cooled Welding Machine For Welding Stainless Steel / Steel And Aluminum

Air-Cooled Welding Machine for Welding Stainless Steel / Steel and Aluminum Features:

  • Handheld Laser Gun Weight: 0.7kg
  • Product Name: Fiber Laser Welding Head
  • Laser Beam Size: 0~5mm Adjustable
  • Fiber Cable: 10m Standard. (15 / 20m Option)
  • Fiber Connector: QBH
  • Handheld Laser Welding Machine
  • Positioning: Red Guide Beam
  • Gas: Argon / Nitrogen

The Fibre Laser Welding Head is a high-powered Fibre Laser Device equipped with a QBH fibre connector. The diameter of its laser beam can be adjusted within the range of 0 - 5mm, and it is furnished with a red pilot beam for alignment. This Fiber Optic Laser Welding Nozzle is lightweight and ergonomically designed, with a total weight of only 0.7kg.

Air-Cooled Welding Machine for Welding Stainless Steel / Steel and Aluminum Parameters:

Product Name

Air-Cooled Handheld Single Motor Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

2000W

Welding Beam Size

0-5mm Adjustable

Welding Beam Form

Line " 一 "

Cooling method in Winter

Add Antifreeze

Position Guide

Red Guide Light

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Handheld Laser Gun Weight

0.7kg

Fiber Connector

QBH

Cooling Method

Air-Cooled

2000W Air-Cooled Welding Machine For Welding Stainless Steel / Steel And Aluminum

Air-Cooled Welding Machine for Welding Stainless Steel / Steel and Aluminum Application Advantages:

The HanWei HW-20-60150 handheld welding equipment showcases remarkable performance in a variety of scenarios. Its outstanding portability endows it with extraordinary convenience for on-site welding tasks, making it applicable at any location. The wireless welding function simplifies the operation and accelerates the completion of welding projects. Notably, this equipment adopts an air-cooling system, which effectively dissipates heat and ensures stable operation during the welding process. It is highly beneficial in the construction, manufacturing, and repair industries, serving as a crucial instrument for those in search of a reliable and efficient welding solution.
The handheld single oscillating welding appliance presents an excellent substitute for conventional argon arc welding and electric welding when dealing with thin metal sheets such as stainless steel, steel, and aluminium. The welding nozzle is lightweight, compact, and human-engineered to ensure a comfortable manipulation experience. It is furnished with a safety catch and a touch-sensitive indicator light. Its user-friendliness imposes minimal requirements on the operator. The welding seam is of premium quality, the welding speed is rapid, and there are no welding traces, no color change, and no need for post-welding polishing. With its powerful anti-interference capabilities and a self-developed control mechanism, along with the efficient air-cooling design, this welding machine stands out as a top choice in the field.

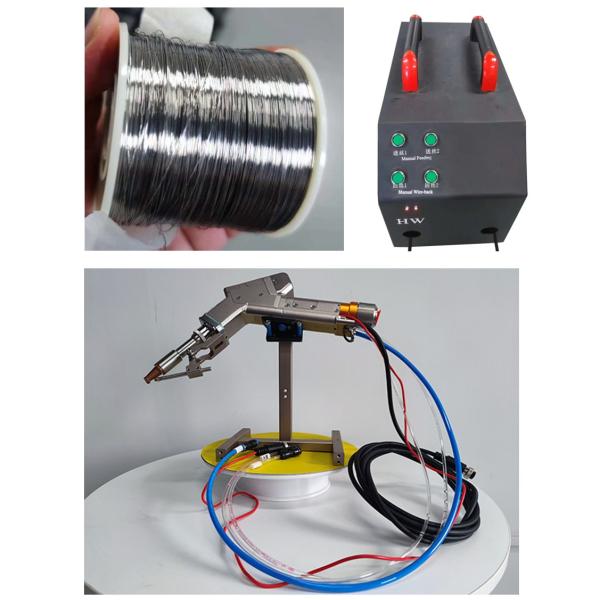

Air-Cooled Welding Machine for Welding Stainless Steel / Steel and Aluminum Packing:
  • One Fiber Laser Welding Head
  • One User Manual
  • Two Protective Lens
  • Seven kinds of nozzles
  • One Controller
  • One Touch Screen Monitor
  • One Wire feeding device
  • One 15v Power Supply
  • A set of Connection Cables and Line
  • One Safety Switch Clip

​2000W Air-Cooled Welding Machine For Welding Stainless Steel / Steel And Aluminum

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. has achieved a remarkable feat by developing a diverse range of welding laser products with state-of-the-art international technology. For instance, the AMB spot ring spot welding machine features a unique technical approach that sets it apart from similar offerings by companies worldwide. Additionally, the "AMB spot ring spot + blue light composite swing welding machine" represents a revolutionary innovation. It not only fills the void in the domestic market but also makes its premiere on a global scale. This advanced machine effectively resolves the long-standing challenges in laser welding of highly reflective materials like copper and gold, such as erratic welding results, rough welding surfaces, and spattering problems.
Hanwei Laser endeavors to equip all global integrators with outstanding welding technology. The company is among the select few globally that can concentrate on the R&D, production, and sales of the entire industrial chain of various types of lasers for welding, laser control systems, laser optics, and laser welding procedures. It is a national high-tech and specialized new enterprise. The product portfolio mainly comprises nine series of laser welding machines, namely AMB spot ring spot welding machine, blue light welding machine, blue + fibre optic Composite welding machine, semiconductor + fiber optic composite welding machine, YAG + semiconductor composite welding machine, YAG laser welding machine, semiconductor laser welding machine, fiber optic mould repair welding machine, QCW laser welding machine, along with their corresponding laser welding control systems, laser welding optical systems, and related peripheral products.
