Handheld Laser Welding Machine for Welding Stainless Steel / Steel and Aluminum
Handheld Laser Welding Machine for Welding Stainless Steel / Steel and Aluminum
Handheld Laser Welding Machine for Welding Stainless Steel / Steel and Aluminum
Handheld Laser Welding Machine for Welding Stainless Steel / Steel and Aluminum
Handheld Laser Welding Machine for Welding Stainless Steel / Steel and Aluminum
Handheld Laser Welding Machine for Welding Stainless Steel / Steel and Aluminum
Specifications
Brand Name :
HanWei
Model Number :
HW-20-60150
Certification :
CE
Place of Origin :
Shenzhen. China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Handheld Laser Gun Weight :
0.7 Kg
Welding Materials :
Steel / Stainless Steel / Aluminium
Laser Power :
2000W
Welding Beam Size :
0-5mm Adjustable ( 0-10mm option )
Electrical Input Voltage :
220v 50Hz / 60Hz
Feeding Wires :
0.8&1.0&1.2&1.6mm wire feeding ( 2.0mm wire feeding option )
Welding Thickness :
4mm Stainless steel Full Penetration
Collimation Focal Length :
60mm
Focusing Focal Length :
150mm
Laser Output Mode :
4 mode ( CW, PWM, QCW, Argon )
Welding Parameter Save :
30 kinds of different welding parameter save
Description

Handheld Welding Machine for Welding Stainless Steel / Steel and Aluminum

Handheld Welding Machine for Welding Stainless Steel / Steel and Aluminum Description:

The Handheld Single Wobble Welding Head represents a highly sophisticated welding apparatus. With a design philosophy centered around user experience, it adeptly addresses intricate welding demands, particularly when it comes to welding stainless steel, carbon steel, and aluminum. It meticulously takes into account the practical aspects of the welding process and the ease of use during prolonged periods of operation, presenting a more proficient and precise operational approach for welding tasks.
The welding head is characterized by its lightweight, space-efficient, and ergonomically engineered structure, ensuring a pleasant and secure grip. It can be effortlessly adjusted to accommodate diverse welding tasks across a wide range of working scenarios. Be it large-scale production in industrial facilities or exterior on-site repair work involving stainless steel, carbon steel, or aluminum, it is capable of attaining favorable outcomes.

Handheld Laser Welding Machine for Welding Stainless Steel / Steel and Aluminum

Handheld Welding Machine for Welding Stainless Steel / Steel and Aluminum Features:

  • Product Name: Fiber Laser Welding Head
  • Fiber Cable: 10m Standard. (15 / 20m Option)
  • Handheld Laser Gun Weight: 0.7kg
  • Handheld Laser Welding Machine
  • Gas: Argon / Nitrogen
  • Laser Beam Size: 0~5mm Adjustable
  • Fiber Connector: QBH
  • Positioning: Red Guide Beam

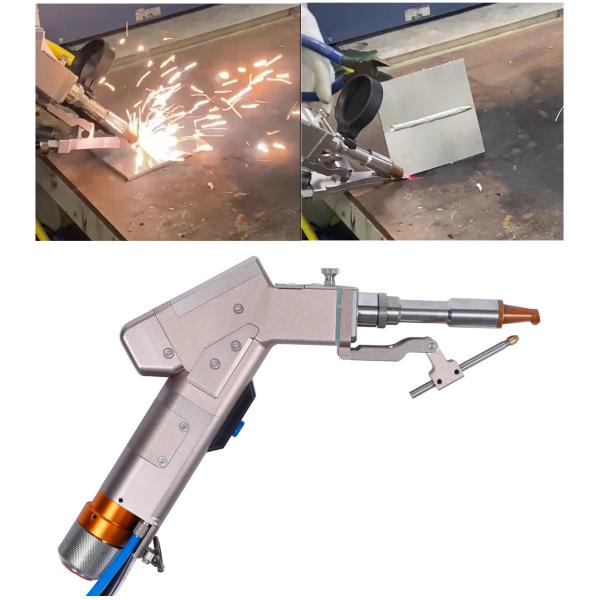

The Fibre Laser Welding Head is a high-powered Fibre Laser Gun furnished with a QBH fibre connector. The magnitude of its laser beam is adjustable within the range of 0 - 5mm, and it is equipped with a red guiding beam for positioning purposes. This Fiber Optic Laser Welding Nozzle is lightweight and designed with user convenience in mind, having a total weight of merely 0.7kg.

Handheld Welding Machine for Welding Stainless Steel / Steel and Aluminum Parameters:

Product Name

Handheld Single Motor Laser Welding Machine

Welding Power

2000W

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Beam Size

0-5mm Adjustable

Fiber Connector

QBH

Cooling method in Winter

Add Antifreeze

Position Guide

Red Guide Light

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Welding Beam Form

Line " 一 "

Handheld Laser Gun Weight

0.7kg

Welding Parameter Save

30 kinds of different welding parameter save

Handheld Laser Welding Machine for Welding Stainless Steel / Steel and Aluminum

Handheld Welding Machine for Welding Stainless Steel / Steel and Aluminum Application Advantages:

The HanWei HW-20-60150 handheld welding apparatus demonstrates remarkable capabilities in various situations. Its mobility offers extraordinary convenience for field welding tasks, allowing it to be utilized at any site. The cordless welding feature simplifies the operation and expedites the accomplishment of welding jobs. This equipment is highly beneficial in the construction, manufacturing, and repair sectors, serving as a vital tool for those seeking a dependable and efficient welding solution.
The handheld single oscillating welding device presents an outstanding substitute for traditional argon arc welding and electric welding when dealing with thin metal plates like stainless steel, steel, and aluminium. The welding nozzle is lightweight, small-sized, and ergonomically designed to guarantee a pleasant handling experience. It is furnished with a safety latch and a touch-activated indicator light. Its ease of use imposes few demands on the operator. The welding seam is of top-notch quality, the welding speed is swift, and there are no welding marks, no color alteration, and no need for post-welding buffing. It has powerful anti-interference abilities and is equipped with a self-developed control system.

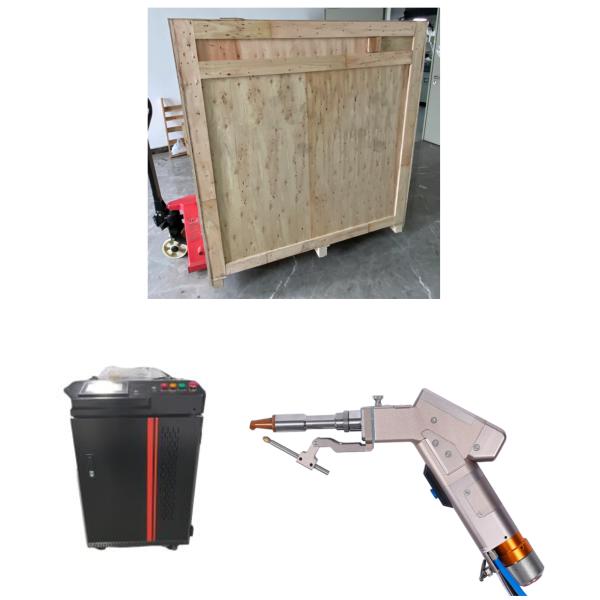

Handheld Welding Machine for Welding Stainless Steel / Steel and Aluminum Packing:
  • One Fiber Laser Welding Head
  • Two Protective Lens
  • One Touch Screen Monitor
  • One Controller
  • Seven kinds of nozzles
  • One 15v Power Supply
  • A set of Connection Cables and Line
  • One Wire feeding device
  • One Safety Switch Clip
  • One User Manual

​Handheld Laser Welding Machine for Welding Stainless Steel / Steel and Aluminum

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. has accomplished an extraordinary achievement by developing a variety of welding laser products with international cutting-edge technology. For example, the AMB spot ring spot welding machine has a distinct technical solution that differentiates it from similar products provided by companies across the globe. Moreover, the "AMB spot ring spot + blue light composite swing welding machine" is a ground-breaking innovation. It not only plugs the gap in the domestic market but also makes a global debut. This sophisticated machine successfully tackles the persistent problems in laser welding of highly reflective materials such as copper and gold, like unstable welding outcomes, coarse welding surfaces, and spattering issues.
Hanwei Laser aims to endow all global integrators with excellent welding technology. The company is one of the few in the world that can focus on the research and development, production, and sales of the entire industrial chain of diverse types of lasers for welding, laser control systems, laser optics, and laser welding procedures. It is a national high-tech and specialized new enterprise. The product range mainly consists of nine series of laser welding machines, namely AMB spot ring spot welding machine, blue light welding machine, blue + fibre optic Composite welding machine, semiconductor + fiber optic composite welding machine, YAG + semiconductor composite welding machine, YAG laser welding machine, semiconductor laser welding machine, fiber optic mould repair welding machine, QCW laser welding machine, together with their corresponding laser welding control systems, laser welding optical systems, and related peripheral products.
