Handheld Single Motor Laser Welding Machine with Four Laser Welding Modes
Handheld Single Motor Laser Welding Machine with Four Laser Welding Modes
Handheld Single Motor Laser Welding Machine with Four Laser Welding Modes
Handheld Single Motor Laser Welding Machine with Four Laser Welding Modes
Handheld Single Motor Laser Welding Machine with Four Laser Welding Modes
Handheld Single Motor Laser Welding Machine with Four Laser Welding Modes
Specifications
Brand Name :
HanWei
Model Number :
HW-DZJS-1500
Certification :
CE
Place of Origin :
Shenzhen. China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Laser Power :
1500W
Electrical Input Voltage :
220v 50Hz / 60Hz
Welding Materials :
Steel / Stainless Steel / Aluminium
Collimation Focal Length :
60mm
Focusing Focal Length :
150mm
Welding Beam Size :
0-5mm Adjustable ( 0-10mm option )
Feeding Wires :
0.8&1.0&1.2&1.6mm wire feeding ( 2.0mm wire feeding option )
Laser Output Mode :
4 mode ( CW, PWM, QCW, Argon )
Welding Thickness :
4mm Stainless steel Full Penetration
Welding Parameter Save :
30 kinds of different welding parameter save
Description

Handheld Single Motor Laser Welding Machine with Four Laser Welding Modes

Handheld Laser Welding Machine with Four Laser Welding Modes Description:

The Handheld Single Wobble Welding Head represents a cutting - edge and revolutionary welding implement. Adopting user - oriented design principles, it adeptly addresses intricate welding requirements by meticulously taking into account both the practical elements of the welding procedure and the comfort during long - term usage. It provides a more efficient and precise operational approach for welding projects.
This welding head is characterized by a lightweight, compact, and ergonomically designed structure, ensuring a comfortable and secure grip. It can be readily adjusted to diverse welding tasks under a wide range of working circumstances. Whether it's large - scale production in factories or outdoor on - site repair work, it is fully capable of achieving outstanding outcomes

Handheld Single Motor Laser Welding Machine with Four Laser Welding Modes

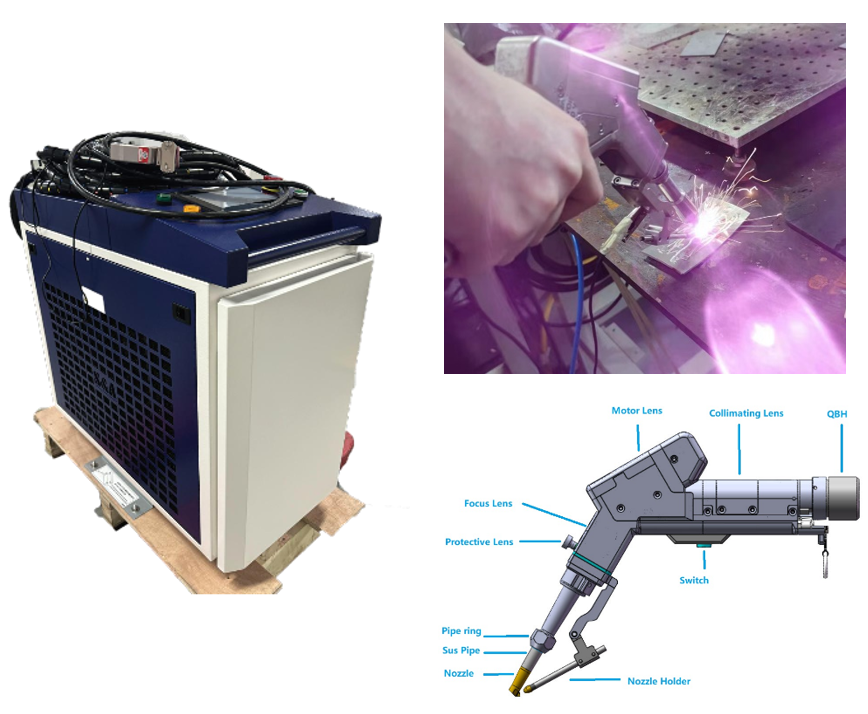

Handheld Laser Welding Machine with Four Laser Welding Modes Features:

  • Handheld Laser Welding Machine
  • Product Name: Fiber Laser Welding Head
  • Handheld Laser Gun Weight: 0.7kg
  • Fiber Cable: 10m Standard. (15 / 20m Option)
  • Laser Beam Size: 0~5mm Adjustable
  • Positioning: Red Guide Beam
  • Fiber Connector: QBH
  • Gas: Argon / Nitrogen

The Fibre Laser Welding Head is a high - performing Fibre Laser Device equipped with a QBH fibre coupler. The diameter of its laser beam can be adjusted within the range of 0 - 5mm, and it is furnished with a red alignment beam for accurate positioning. This Fiber Optic Laser Welding Tip is lightweight, with a total weight of merely 0.7kg, and is designed with the utmost consideration for the end - user's comfort.

Handheld Laser Welding Machine with Four Laser Welding Modes Technical Parameters:

Product Name

Handheld Single Motor Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

1500W

Handheld Laser Gun Weight

0.7kg

Welding Beam Form

Line " 一 "

Welding Beam Size

0-5mm Adjustable

Welding Parameter Save

30 kinds of different welding parameter save

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Fiber Connector

QBH

Position Guide

Red Guide Light

Cooling method in Winter

Add Antifreeze

Handheld Single Motor Laser Welding Machine with Four Laser Welding Modes

Handheld Laser Welding Machine with Four Laser Welding Modes Application Advantages:

The HanWei HW-DZJS-1500 handheld welding device showcases remarkable capabilities in numerous scenarios. Its portability provides unparalleled convenience for on - site welding, enabling it to be utilized almost everywhere. The cable - free welding feature streamlines the operation, hastening the rapid completion of welding tasks. This product is highly valuable in the construction, manufacturing, and repair industries, emerging as an indispensable tool for those in search of a reliable and efficient welding instrument.
The handheld single oscillating welding machine serves as an excellent alternative to traditional argon arc welding and electric welding techniques when working with thin metal sheets such as stainless steel, steel, and aluminum. The welding torch is lightweight, compact, and ergonomically crafted to ensure a comfortable grip. It is equipped with a safety lock and a touch - sensitive indicator light. Its user - friendly design places minimal requirements on the operator. The weld seam is of superior quality, the welding speed is fast, and there are no welding marks or color alterations, thus eliminating the need for post - welding grinding. It demonstrates robust anti - interference capabilities and is equipped with an internally developed control system.

Handheld Laser Welding Machine with Four Laser Welding Modes Packing:

  • One Fiber Laser Welding Head
  • One Wire feeding device
  • One Controller
  • One 15v Power Supply
  • A set of Connection Cables and Line
  • Seven kinds of nozzles
  • Two Protective Lens
  • One Touch Screen Monitor
  • One Safety Switch Clip
  • One User Manual

​Handheld Single Motor Laser Welding Machine with Four Laser Welding Modes

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. presents a diverse range of laser equipment, including both desktop and handheld types. These setups incorporate advanced fiber, pulsed or continuous wave, blue laser, diode laser, and hybrid laser technologies, carefully designed to meet the distinct requirements of customers. Additionally, they offer customized solutions for particular applications and provide training and assistance to enable customers to make the most of their laser systems. With branches and subsidiaries spanning Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global presence, serving clients around the globe.
Hanwei Laser centers its core business on the field of laser welding. The company is committed to providing international laser integration enterprises with world - class laser welding technology. It aims to offer top - tier welding technology to all integrators. As one of the few global national high - tech specialized and emerging enterprises, it specializes in the R & D, production, and marketing of various welding lasers, laser control systems, laser optical systems, and laser welding processes across the entire industrial chain.
