Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel
Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel
Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel
Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel
Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel
Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel
Specifications
Brand Name :
HanWei
Model Number :
HW-DZJS-2000
Certification :
CE
Place of Origin :
Shenzhen. China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Laser Power :
2000W
Welding Materials :
Steel / Stainless Steel / Aluminium
Welding Beam Size :
0-5mm Adjustable ( 0-10mm option )
Electrical Input Voltage :
220v 50Hz / 60Hz
Welding Thickness :
4mm Stainless steel Full Penetration
Collimation Focal Length :
60mm
Focusing Focal Length :
150mm
Feeding Wires :
0.8&1.0&1.2&1.6mm wire feeding ( 2.0mm wire feeding option )
Laser Output Mode :
4 mode ( CW, PWM, QCW, Argon )
Welding Parameter Save :
30 kinds of different welding parameter save
Description

Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel

Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel Description:

The Compact Single Motor Welding Head represents a cutting - edge and innovative welding instrument. Adopting a user - focused design approach, it adeptly addresses intricate welding requirements by meticulously taking into account both the functionality of the welding procedure and the comfort for long - term usage. It provides a more productive and precise way of operation for welding undertakings.
This welding head features a light - weight, streamlined, and ergonomically designed construction, ensuring a comfortable and steady grip. It can be effortlessly adapted to different welding jobs under a wide range of working circumstances. Whether it is large - scale factory manufacturing or outdoor on - site repair operations, it is fully capable of achieving outstanding outcomes.

Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel

Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel Features:

  • Handheld Laser Welding Machine
  • Product Name: Fiber Laser Welding Head
  • Fiber Connector: QBH
  • Positioning: Red Guide Beam
  • Fiber Cable: 10m Standard. (15 / 20m Option)
  • Laser Beam Size: 0~5mm Adjustable
  • Handheld Laser Gun Weight: 0.7kg
  • Gas: Argon / Nitrogen

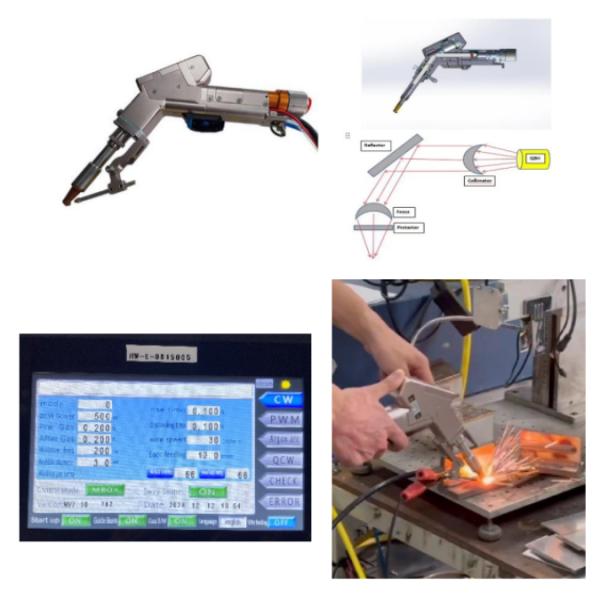

The fiber laser welding head represents a high - end fiber laser device featuring a QBH fiber coupler. The diameter of its laser beam can be adjusted within the range of 0 - 5mm. Moreover, it is equipped with a red alignment beam to guarantee accurate positioning.
This fiber optic laser welding nozzle is lightweight, with an overall weight of merely 0.7kg. It has been designed with great regard for the comfort of the end - user.

Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel Technical Parameters:

Product Name

Handheld Single Motor Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

2000W

Handheld Laser Gun Weight

0.7kg

Welding Beam Form

Line " 一 "

Welding Beam Size

0-5mm Adjustable

Welding Parameter Save

30 kinds of different welding parameter save

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Fiber Connector

QBH

Position Guide

Red Guide Light

Cooling method in Winter

Add Antifreeze

Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel

Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel Application Advantages:

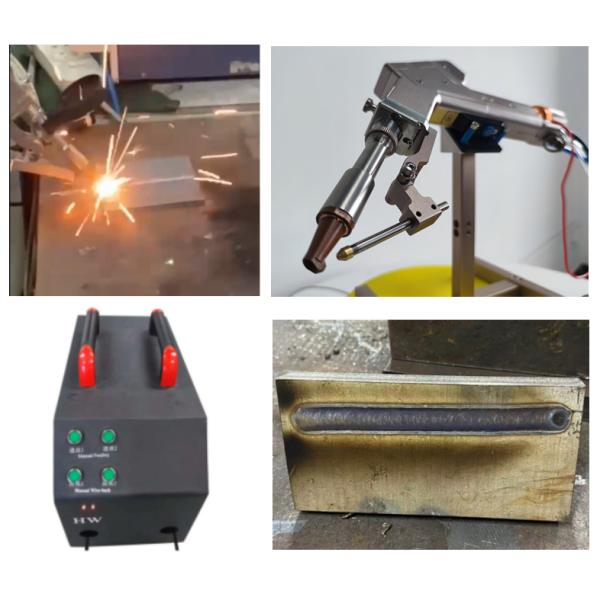

The HanWei HW - DZJS - 2000 portable welding apparatus showcases remarkable performance across a diverse range of scenarios. Its portability provides unparalleled ease for on - site welding work, enabling its application in almost any location. The wireless welding feature streamlines the procedure, expediting the prompt completion of welding assignments. This product plays a crucial role in the construction, manufacturing, and repair industries, emerging as an indispensable tool for those in search of a reliable and efficient welding implement.

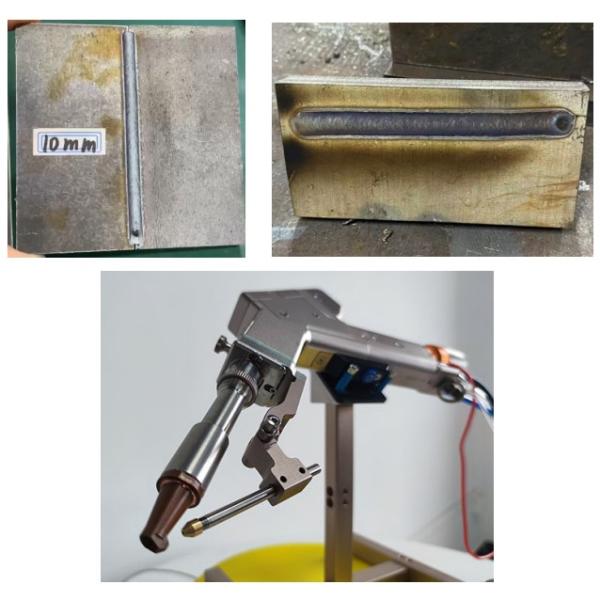

The handheld single - oscillation welding unit serves as an outstanding alternative to traditional argon arc welding and electric welding techniques when handling thin metal sheets such as stainless steel, carbon steel, and aluminum. The welding torch is lightweight, compact, and ergonomically engineered to guarantee a comfortable grip. It is furnished with a safety latch and a touch - sensitive indicator light. Its user - friendly layout requires minimal effort from the operator. The weld seam is of superior quality, the welding speed is fast, and there are no welding traces or color alterations, thus obviating the need for post - welding buffing. It exhibits robust anti - interference properties and is equipped with an in - house developed control mechanism.

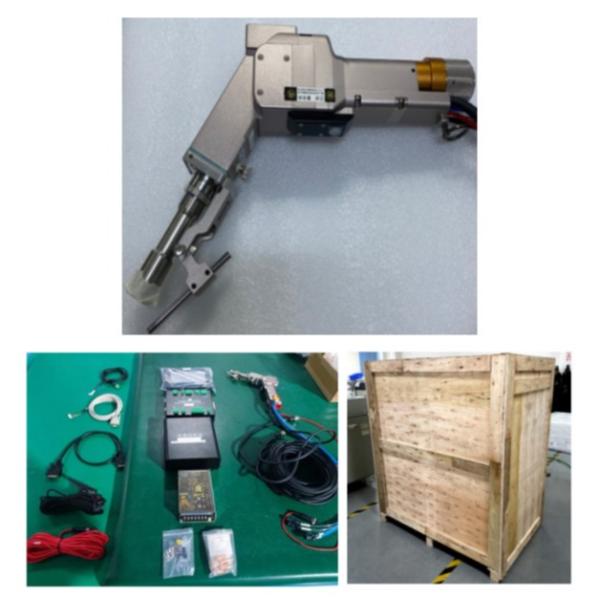

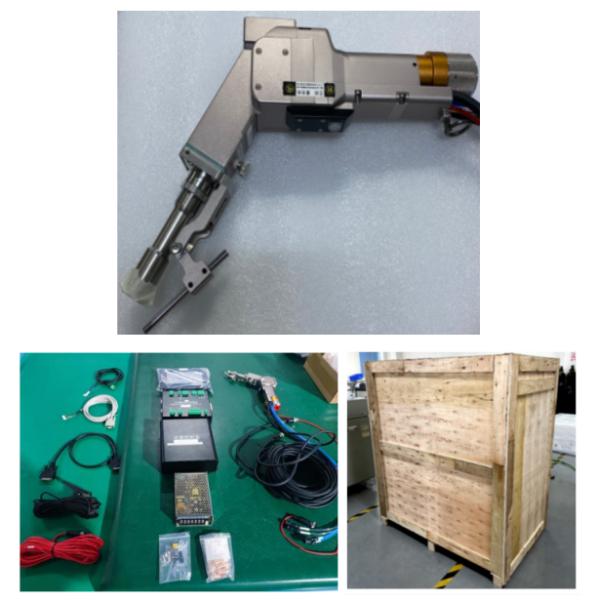

Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel Packing:

  • One Fiber Laser Welding Head
  • Two Protective Lens
  • One Controller
  • One User Manual
  • One 15v Power Supply
  • A set of Connection Cables and Line
  • Seven kinds of nozzles
  • One Wire feeding device
  • One Touch Screen Monitor
  • One Safety Switch Clip

​Lightweight Handheld Single Motor Laser Welding Machine For Welding 5mm Stainless Steel

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. presents a comprehensive range of laser equipment, encompassing both desktop and handheld types. These configurations employ cutting - edge fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies, crafted to meet the distinct requirements of customers. Additionally, they offer customized solutions for particular applications and provide training and assistance to enable customers to make the most of their laser systems. With branches and affiliates spread across Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global presence, serving clients around the globe.

Hanwei Laser centers its core business on the laser welding field. The company is committed to supplying international laser integration companies with top - notch laser welding technology. Its aim is to provide high - quality welding technology to all integrators. As one of the few global national high - tech specialized and innovative enterprises, it specializes in the research and development, production, and marketing of diverse welding lasers, laser control systems, laser optical systems, and laser welding processes across the entire industrial chain.
