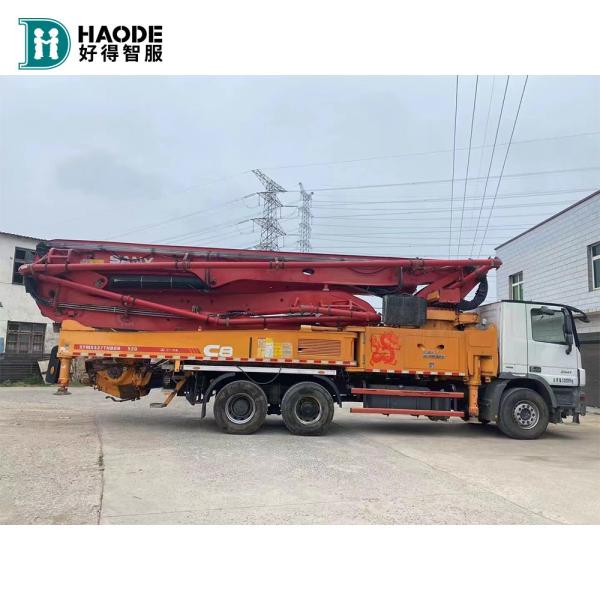

Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
Specifications
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location :
None
Power Type :
Other
Place of Origin :
China
Power :
315/1600rpm
Weight :
41000 KG
Max. vertical conveying distance :
52M
Max. horizontal conveying distance :
48M
Productivity :
180 m3/h
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Year :
2014
Working hours :
8001-10000
Model Number :
SYM5337THB52
Product name :
Concrete Pump Truck
Brand :
SANY
WHATSAPP: :
+86 17375708691
Total weight :
41000kg
Max. speed :
80km/h
Maximum net engine power :
300KW
Engine type :
6WF1D
Max. pumping height: :
52m
Displacement: :
12.94 L
Packaging Details :
Standard packing
Port :
Zhejiang,Guangzhou
Supply Ability :
10000 Piece/Pieces per Month
Price :
$100,000.00/sets 1-4 sets
MOQ :
1pc
Description
Powerful HAODE Sany SYM5337THB 52m Mortar Concrete Pump Truck Boom Concrete Pumps Machine
model
SYM5337THB
full length
13850mm
Total width
2500mm
Total height
4000mm
Self-respect
41800kg
Vertical height of boom
56m
Horizontal length of boom
51m
Vertical depth of boom
36.6m
Minimum expansion height
15.2m
First section arm
length
11390mm
Corner
90°
Second section arm
length
9230mm
Corner
180°
Third section arm
length
8750mm
Corner
180°
Fourth section arm
length
11070mm
Corner
240°
Fifth section arm
length
8080mm
Corner
180°
Turntable rotation angle
±360°
Width of front outrigger
6200mm
Width of rear outrigger
7405mm
Concrete displacement
Low pressure
180m3/h
high pressure
120m3/h
Theoretical pumping pressure
Low pressure
8.3Mpa
high pressure
12Mpa
Theoretical pumping times
Low pressure
29 times/minute
high pressure
19times/minute
Inner diameter of delivery cylinder
260mm
Conveying cylinder stroke
2100mm
Hydraulic system
Open
System oil pressure
32Mpa
Fuel tank capacity
680L
Water tank volume
620L
Conveying pipe diameter
125mm
End hose length
3m
End hose diameter
125mm
BENZ Actros 4141Chassis model
BENZ Actros 4141
OM501LA. IV /3engine model
OM501LA. IV /3
Engine power
300kW/1000rpm
Emission Standards
Country IV
Fuel tank volume
400L
Displacement
11.946L
Maximum speed
80km/h
Braking distance
≤ 10m/30km/h
