Specifications
Place of Origin :
Beijing
Brand Name :
HUATEC
Model Number :
FD201B
MOQ :
1pcs
Packaging Details :
Standard export package
Delivery Time :
1-4days
Payment Terms :
T/T, Paypal, Western Union
Certification :
ISO, CE, GOST
Supply Ability :
500pcs per month
Description

Digital ultrasonic flaw detector FD201B, ultrasonic detector, NDT, UT, ndt test

Features for digital ultrasonic flaw detector FD201B:

DAC, AVG curves

AWS function

High-speed capture and very low noise

Gate and DAC alarm;Acoustic-Optical alarm

Solid metal housing (IP65)

High contrast viewing of the waveform from bright

Powerful pc software and reports can be export to excel

  • Automated display precise flaw location (Depth d, level p, distance s, amplitude, sz dB, ф)
  • Automated switch three staff gauge ((Depth d, level p, distance s)
  • Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
  • Ten independence setup, any criterion can be input freely, we can work in the scene without test block
  • Big memory of 300 A graph and 30000 thickness value
  • Automated gain and gain scan, automated echo degree
  • Peak hold and Peak memory
  • Powerful PC software and reports can be export to excel
  • RS232/USB
  • The embeded software can be online updated
  • Li battery, continue working time up to 10 hours
  • Display freeze
  • Lock and unlock function of system parameters
  • Dormancy and screen savers
  • Electronic clock calendar
  • Two gates setting and alarm indication

Specifications

Title

Parameter

Title

Parameter

Measuring Range(mm)

2.5 ~ 5000

Measurement Mode

Single, Dual, Thru

Vertical Linearity Error

≤3%

Reject

0~80%

Horizontal Linearity Error

≤0.2%

Pulse Displacement(μs)

-20 ~ +3400

Sensitivity Leavings

>60dB

Zero(μs)

0.0 ~ 99.99

Dynamic range

>32dB

Port Type

BNC

Resolving Power

≥40

Operating Temperature (℃)

-20~50

Frequency Range(MHz)

0.5 ~ 15

H×W×D(mm)

240×180×50

Gain(dB)

0 ~ 110

Weight(kg)

1.8

Material Velocity(m/s)

1000 ~ 9999

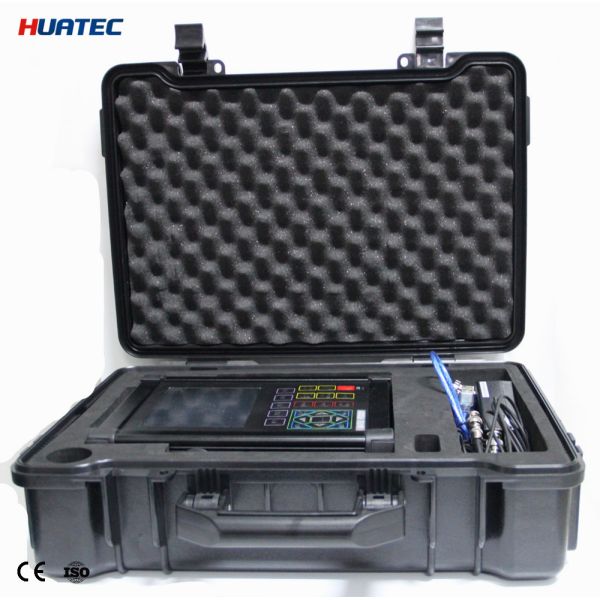

Standard delivery

Digital Ultrasonic Flaw Detector Main unit

2.5MHz-ф20 straight probe

4MHz-8x9mm, 60 degree angle probe

4A/9V power adapter

Probe connection cable (BNC to BNC)

Probe connection cable (BNC to LEMO)

USB2.0 –RS232 converter

Instruction manual

Calibration certificate

Carrying case

Additional accessories

Data managing software

Data managing cable RS232

Leather bag

All kinds of angle and straight probe, double crystal probe at any size with frequency 0.5—15MHz

Connection cable for probe LEMO and BNC

Lithium ion battery

Power adapter (4A/9V)

Test block V1

Test block V2

Test block DAC, ASME etc.
