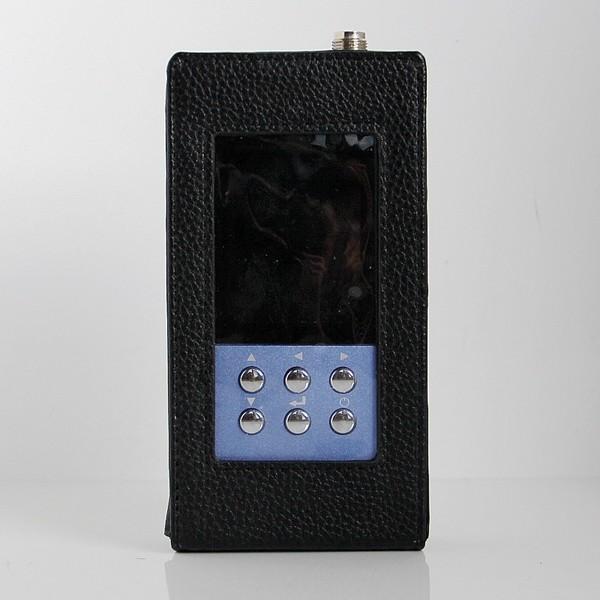

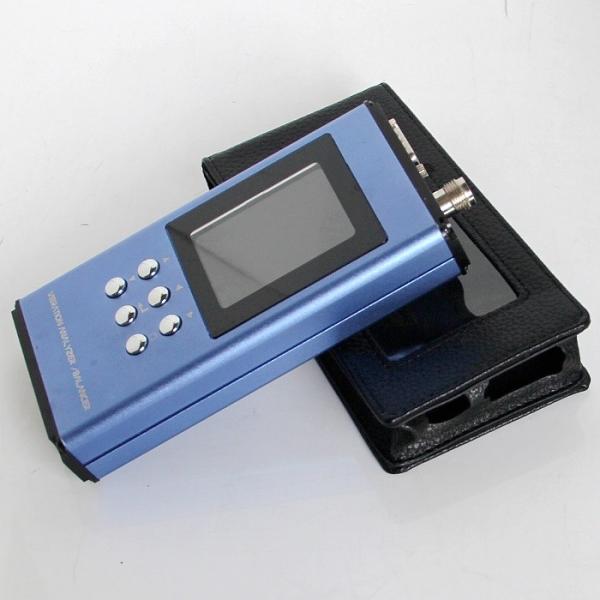

HGS911HD Balancer / Vibration Spectrum Analyzer / Data Collector

HGS911HD is an easy operate and small sized economical vibration Spectrum analyzer & data collector. It can be used for overall vibration measurement, spectrum analysis and measurement of high frequency acceleration envelope design makes it very effective for bearing fault detection. HGS911HD testing data can be outputed to computer for database and trending analysis.

It is also a low-cost, easy-to-use balancing meter with the measurement of Amplitude,Rotation speed RPM, & Phase measurement.

Features:

Easy to use FFT spectrum analyzer, 400 lines

Measurement of high frequency acceleration envelope makes it a very effective bearing fault detector

Download from computer database point / location ID & upload overall value to database for trending

Powerful standard condition monitoring software

Parameter selection of Acceleration, velocity, displacement and acceleration envelope for FFT.

USB 2.0 interfaces to computer

Date/Time & Battery Status Display

True RMS measurement

RPM, Amplitude, Phase measurement for balancing

Specification:

Maximum measurement range / Resolution / frequency range (may change):

# Note: Demodulated from 15kHz-40kHz

Accuracy of vibration measurement:

Noise Level (without vibration input): ACC<0.25 m/s2, VEL<0.5mm/s, Disp<1mm

Non-linearity: ±5% + 2 digits

Frequency response accuracy: ±5% + 2 digits

Rechargeable Li-ion battery, Automatic power off, >20 hours operation time

Operation temperature range: 0 - 50°C

Pickup: Accelerometer with extension stinger and magnetic mount,

Optional tacho-sensor Optional 1 or 2 accelerometers. For 2 accelerometers, a mechanical switch provided.

Rotation speed measurement range: 10-60000 RPM

Storage: 200 sets of ID, acceleration, velocity, displacement, envelope & spectrum

Size: 150 x 70 x 25 (mm)

Weight: 320 gram (including battery)

Trouble-Shooting

If other faults are found, make detailed records and contact HUATEC Group Corporation, www.huatecgroup.com.

Maintenance

Battery Charging

Rechargeable battery is used in HUAEC Group HGS911HDD data collector. It will take several hours to fully charge the battery and then it will be ready for >20 hours of continuous operation.

Calibration

HUAEC Group HGS911HD and accelerometer should be calibrated periodically. The cycle of calibration is normally one year.
