Pan Head Thread Cutting Metal Tapping Screws With Collar , Self Tapping Metal Screws
Pan Head Thread Cutting Metal Tapping Screws With Collar , Self Tapping Metal Screws
Pan Head Thread Cutting Metal Tapping Screws With Collar , Self Tapping Metal Screws
Pan Head Thread Cutting Metal Tapping Screws With Collar , Self Tapping Metal Screws
Pan Head Thread Cutting Metal Tapping Screws With Collar , Self Tapping Metal Screws
Pan Head Thread Cutting Metal Tapping Screws With Collar , Self Tapping Metal Screws
Specifications
Brand Name :
Runtai
Model Number :
Tapping Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5ton/day
Delivery Time :
14-21 days
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Nicekl Plated Steel Pan Head with Collar Thread Cutting Tapping Screws
Material :
Stainless Steel Brass Copper Aluminum Alloy Steel
Standard :
DIN,ANSI,JIS,ASTM,GB
Size :
M1-M30 for choose
Surface Treatment :
Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide
Grade :
4.8 8.8 10.9 12.9 for choose
Description

Nicekl Plated Steel Pan Head with Collar Thread Cutting Tapping Screws

Products Description

A flange under the head distributes holding pressure and reduces the risk of crushing thin metal. They penetrate 0.025" and thinner sheet metal. Length is measured from under the flange. Head height includes the flange. hey're beveled under the head for use in countersunk holes. Screws cut threads in drilled holes as they’re turned, so they require less driving torque and cause less stress on your material than thread forming screws.

Products Specification

Material Nickel-Plated Steel
Thread Size 6-32
Screw Size No. 6
Screw Size Decimal Equivalent 0.138"
Length 1/2"
Flat Head Profile Standard
Head
Diameter 0.262"
Height 0.083"
Drive Size No. 2
Drive Style Phillips
Drill Bit Size No. 31
Drill Bit Size Decimal Equivalent 0.12"
Thread Direction Right Hand
Threading Fully Threaded
Thread Type UNC
Thread Spacing Coarse
Tapping Method Thread Cutting
Tapping Screw Type F
Head Type Flat
Countersink Angle 82°
Tip Type Blunt
Shank Cross Section Round
System of Measurement Inch
For Use In Aluminum, Brass, Cast Iron, Sheet Metal
RoHS Not Compliant

Note: Material, Size and Surface Treatment for choose.

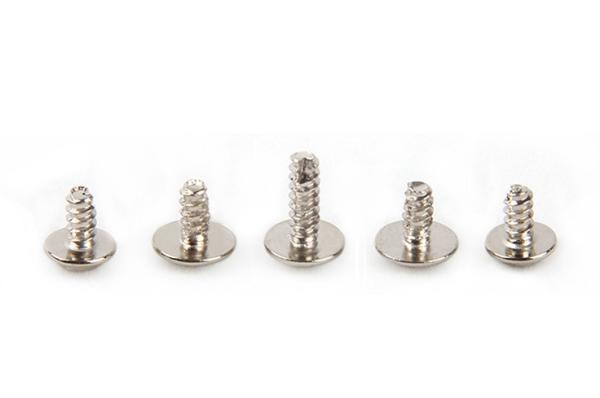

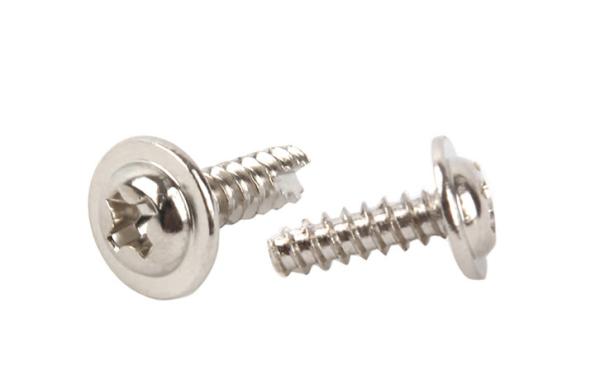

More Products Pictures
