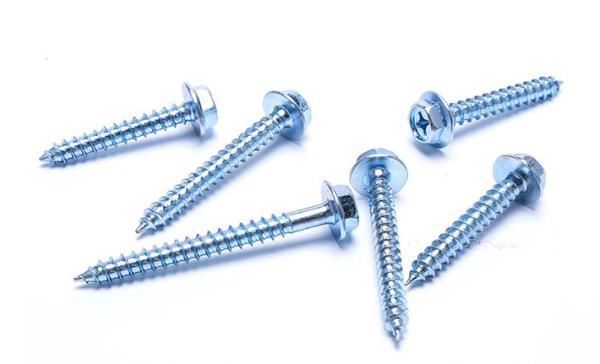

Blue Zinc Plated Drive Hexagon Flanged Head Metal Tapping Screws Pointed Screws
Blue Zinc Plated Drive Hexagon Flanged Head Metal Tapping Screws Pointed Screws
Blue Zinc Plated Drive Hexagon Flanged Head Metal Tapping Screws Pointed Screws
Blue Zinc Plated Drive Hexagon Flanged Head Metal Tapping Screws Pointed Screws
Blue Zinc Plated Drive Hexagon Flanged Head Metal Tapping Screws Pointed Screws
Blue Zinc Plated Drive Hexagon Flanged Head Metal Tapping Screws Pointed Screws
Specifications
Brand Name :
Runtai
Model Number :
Tapping Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5ton/day
Delivery Time :
14-21 days
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Blue Zinc Plated Phillips Drive Hexagon Flanged Head Tapping Screws with Washer
Material :
Stainless Steel Brass Copper Aluminum Alloy Steel
Standard :
DIN,ANSI,JIS,ASTM,GB
Size :
M1-M30 for choose
Surface Treatment :
Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide
Port :
Shanghai
Description

Blue Zinc Plated Phillips Drive Hexagon Flanged Head Tapping Screws Hexagon Flanged Head Pointed Screws

Products Description

These steel screws are zinc plated to resist corrosion in wet environments. All have a hex head for a secure grip with a wrench and a flange to reduce the risk of crushing thin metal. They penetrate 0.025" and thinner sheet metal. Length is measured from under the flange. Head height includes the flange. Phillips drive easily install while using it. Slotted drive is optional drive for choose.

Products Specification

Material Zinc-Plated Steel
Screw Size No. 14
Screw Size Decimal Equivalent 0.242"
Length 1 1/2"
Head
Width 0.375"
Height 0.24"
Flange Diameter 0.52"
Drive Style External Hex/Slotted/Phillips
Drill Bit Size 5.5 mm
Drill Bit Size Decimal Equivalent 0.2165"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 10
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Hex
Hex Head Profile Standard
Tip Type Pointed
Shank Cross Section Round
Screw Features Flanged
System of Measurement Inch
For Use In Sheet Metal
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.
