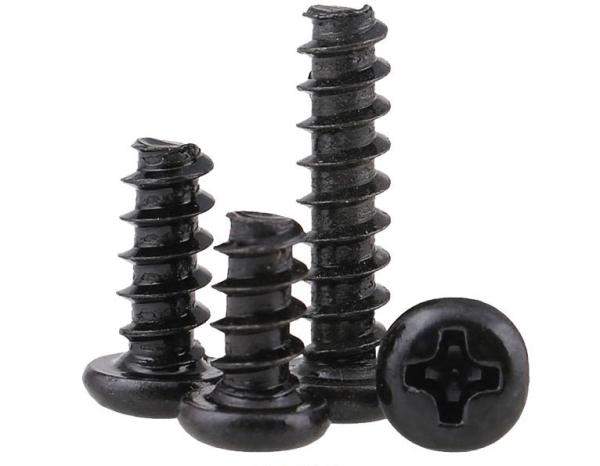

Round Head Type B Thread Forming Metal Tapping Screws Blunt Point Sheet Metal Screws
Round Head Type B Thread Forming Metal Tapping Screws Blunt Point Sheet Metal Screws
Round Head Type B Thread Forming Metal Tapping Screws Blunt Point Sheet Metal Screws
Round Head Type B Thread Forming Metal Tapping Screws Blunt Point Sheet Metal Screws
Round Head Type B Thread Forming Metal Tapping Screws Blunt Point Sheet Metal Screws
Round Head Type B Thread Forming Metal Tapping Screws Blunt Point Sheet Metal Screws
Specifications
Brand Name :
Runtai
Model Number :
Tapping Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5ton/day
Delivery Time :
14-21 days
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Black Zinc Plated Phillips Round Head Type B Thrad-Forming Screws
Material :
Stainless Steel Brass Copper Aluminum Alloy Steel
Standard :
DIN,ANSI,JIS,ASTM,GB
Size :
M1-M30 for choose
Surface Treatment :
Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide
Grade :
4.8 8.8 10.9 12.9 for choose
Description

Black Zinc Plated Phillips Round Head Type B Thrad-Forming Screws Pan Head Blunt Point Sheet Metal Screws

Products Description

These steel screws are black zinc plated to resist corrosion in wet environments. Often referred to as Type B thread-forming screws, they require a drilled hole and are typically used in 0.050"-0.200"material. Length is measured from under the head.

Products Specification

Material Black Zinc-Plated Steel
Screw Size No. 10
Screw Size Decimal Equivalent 0.190"
Length 1/2"
Head
Diameter 0.373"
Height 0.133"
Drive Size No. 2
Drive Style Phillips
Drill Bit Size No. 21
Drill Bit Size Decimal Equivalent 0.159"
Approximate Threads per Inch 16
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type B
Head Type Rounded
Rounded Head Profile Standard
Rounded Head Style Pan
Tip Type Blunt
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal
RoHS Not Compliant

Note: Material, Size and Surface Treatment for choose.

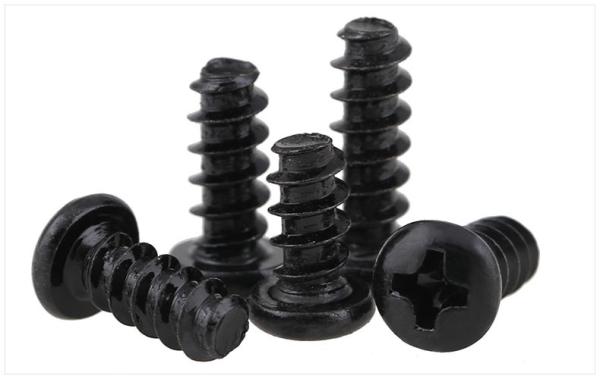

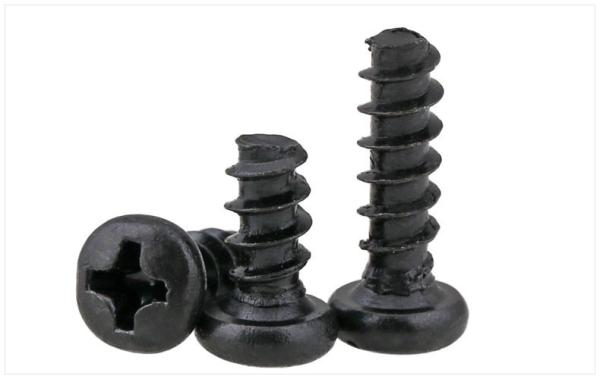

More Products Pictures
