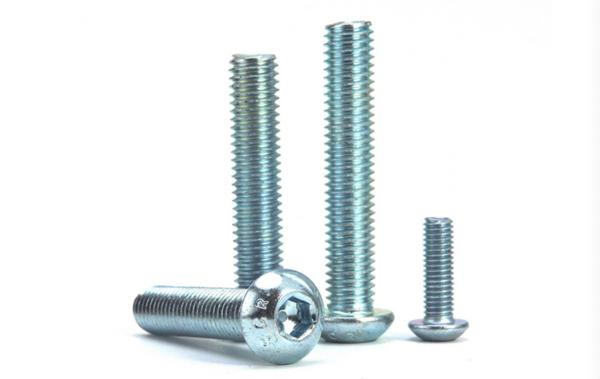

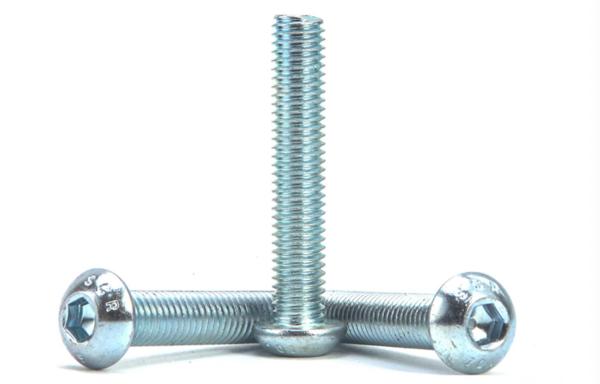

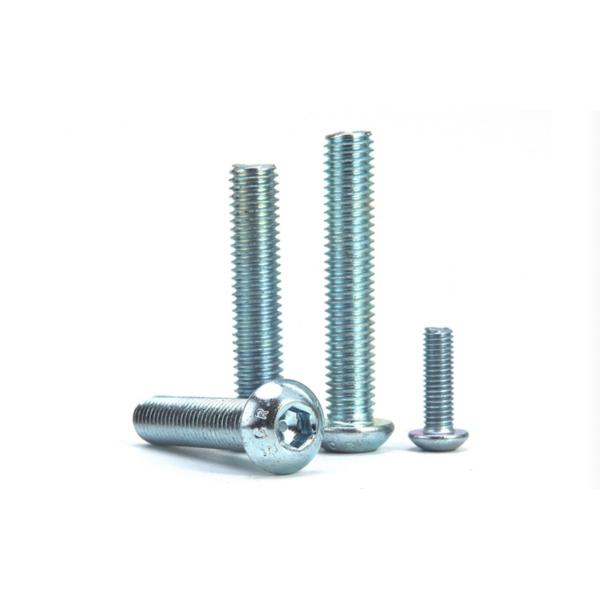

White Zinc Plated Hex Socket Head Screw Class 10.9 ISO7380 Standard
White Zinc Plated Hex Socket Head Screw Class 10.9 ISO7380 Standard
White Zinc Plated Hex Socket Head Screw Class 10.9 ISO7380 Standard
White Zinc Plated Hex Socket Head Screw Class 10.9 ISO7380 Standard
White Zinc Plated Hex Socket Head Screw Class 10.9 ISO7380 Standard
White Zinc Plated Hex Socket Head Screw Class 10.9 ISO7380 Standard
Specifications
Brand Name :
Runtai
Model Number :
Pan Head Phillips Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability :
5 Ton/ days
Delivery Time :
15-20 working days
Packaging Details :
PP bag+Carton box+ Wooden Pallet
Size :
M1-M30 for choose
Material :
Steel, Stainless Steel, Brass, Aluminum Alloy
Grade :
4.8 8.8 10.9 12.9 for choose
Surface treatment :
zinc plated, nickel plated, black phosphates for choose
Standard :
DIN ISO JIS ANSI
Products Name :
White Zinc Plated Steel Round Head Socket Drive Machine Screws
Description

White Zinc Plated Steel Round Head Socket Drive Machine Screws ISO7380 Class 10.9 Pan Head Hex Drive Screws

Products Description

These alloy steel screws are nearly twice as strong as stainless steel button head screws. Length is measured from under the head.

Zinc-plated alloy steel screws resist corrosion in wet environments. Screws with a blue-dyed finish have a distinctive blue color that makes them easy to distinguish.

Products Specification

Thread Size M5
Thread Pitch 0.8 mm
Length 20 mm
Threading Fully Threaded
Head Diameter 9.50 mm
Head Height 2.75 mm
Drive Style Hex
Drive Size 3 mm
Material Zinc-Plated Alloy Steel
Fastener Strength Grade/Class Class 10.9
Hardness Rockwell C32
Tensile Strength 140,000 psi
Thread Type Metric
Thread Spacing Coarse
Thread Fit Class 6g
Thread Direction Right Hand
Head Type Rounded
Rounded Head Style Button
Rounded Head Profile Standard
System of Measurement Metric
Specifications Met ISO 7380
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.

More Products Pictures

White Zinc Plated Hex Socket Head Screw Class 10.9 ISO7380 StandardWhite Zinc Plated Hex Socket Head Screw Class 10.9 ISO7380 Standard
