Stainless Steel Torx Drive Pan Head Tapping Screws for Sheet Metal Six-Lobe Drive Pan Head Pointed Screws
Stainless Steel Torx Drive Pan Head Tapping Screws for Sheet Metal Six-Lobe Drive Pan Head Pointed Screws
Stainless Steel Torx Drive Pan Head Tapping Screws for Sheet Metal Six-Lobe Drive Pan Head Pointed Screws
Stainless Steel Torx Drive Pan Head Tapping Screws for Sheet Metal Six-Lobe Drive Pan Head Pointed Screws
Stainless Steel Torx Drive Pan Head Tapping Screws for Sheet Metal Six-Lobe Drive Pan Head Pointed Screws
Stainless Steel Torx Drive Pan Head Tapping Screws for Sheet Metal Six-Lobe Drive Pan Head Pointed Screws
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Runtai
Model Number :
Tapping Screws
Supply Ability :
5 Tons/Day
Packaging Details :
PP bag+Carton box+ Wooden Pallet
MOQ :
50000
Price :
Negotiable
Certification :
ISO9001/TS16949
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
14-21 days
Products Name :
Stainless Steel Torx Drive Pan Head Tapping Screws
Material :
steel Stainless Steel Red Copper Aluminum Alloy For Choose
Surface treatment :
zinc plated, nickel plated, black phosphates for choose
Size :
M1-M30 for choose.
Standard :
DIN, ISO, JIS, AISI
Port :
Shanghai
Description

Stainless Steel Torx Drive Pan Head Tapping Screws for Sheet Metal Six-Lobe Drive Pan Head Pointed Screws

Products Descriptions

Made from 18-8 stainless steel, these hex head screws have good chemical resistance and may be mildly magnetic. A Torx drive has more points of contact than Phillips, slotted, and square drives, allowing you to apply extra force with less slippage or damage to the recess. These steel screws are zinc plated to resist corrosion in wet environments. They penetrate 0.025" and thinner sheet metal. Length is measured from under the head.

Products Specifications

Material 18-8 Stainless Steel
Screw Size No. 8
Screw Size Decimal Equivalent 0.164"
Length 7/8"
Head
Diameter 0.322"
Height 0.115"
Drive Size T20
Drive Style Torx
Drill Bit Size No. 29
Drill Bit Size Decimal Equivalent 0.136"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 15
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Rounded
Rounded Head Profile Standard
Rounded Head Style Pan
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.

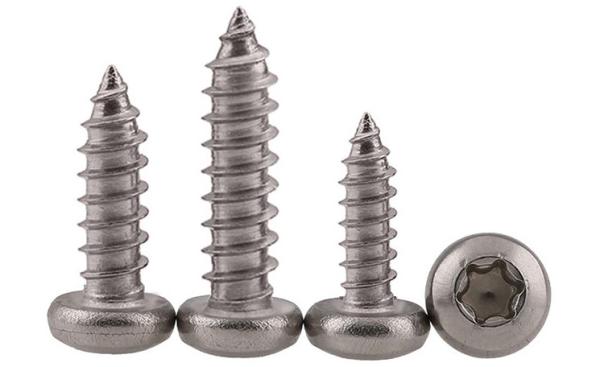

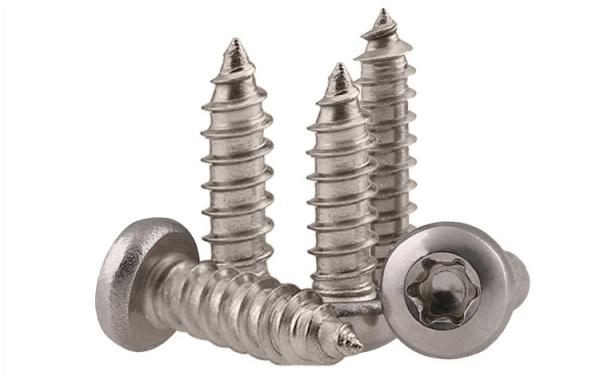

More Products Pictures

Stainless Steel Torx Drive Pan Head Tapping Screws for Sheet Metal Six-Lobe Drive Pan Head Pointed ScrewsStainless Steel Torx Drive Pan Head Tapping Screws for Sheet Metal Six-Lobe Drive Pan Head Pointed Screws
