Black Oxide Steel Combination Slotted/Phillips Drive Pan Head Self Tapping Screws
Black Oxide Steel Combination Slotted/Phillips Drive Pan Head Self Tapping Screws
Black Oxide Steel Combination Slotted/Phillips Drive Pan Head Self Tapping Screws
Black Oxide Steel Combination Slotted/Phillips Drive Pan Head Self Tapping Screws
Black Oxide Steel Combination Slotted/Phillips Drive Pan Head Self Tapping Screws
Black Oxide Steel Combination Slotted/Phillips Drive Pan Head Self Tapping Screws
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
RUNTAI
Model Number :
Tapping Screws
Supply Ability :
5 Tons/day
Packaging Details :
PP bag+Carton box+ Wooden Pallet
MOQ :
50000
Price :
Negotiable
Certification :
ISO9001/TS16949
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
14-21 days
Products Name :
Black Oxide Steel Combination Slotted/Phillips Drive Pan Head Self Tapping Screws
Standard :
DIN, ISO, JIS, ANSI
Size :
M1-M30 for choose.
Material :
steel Stainless Steel Red Copper Aluminum Alloy For Choose
Grade :
4.8, 8, 10.9,12.9
Surface treatment :
Zinc plated, nickel plated, black phosphates for choose
Description

Black Oxide Steel Combination Slotted/Phillips Drive Pan Head Self Tapping Screws

Products Descriptions

These steel screws are zinc plated to resist corrosion in wet environments. They penetrate 0.025" and thinner sheet metal. Length is measured from under the head.

Products Specifications

Material Zinc-Plated Steel
Screw Size No. 10
Screw Size Decimal Equivalent 0.190"
Length 2 1/2"
Head
Diameter 0.373"
Height 0.133"
Drive Size No. 2
Drive Style Phillips/Slotted
Drill Bit Size No. 21
Drill Bit Size Decimal Equivalent 0.159"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 12
Thread Direction Right Hand
Threading Partially Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Rounded
Rounded Head Profile Standard
Rounded Head Style Pan
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.

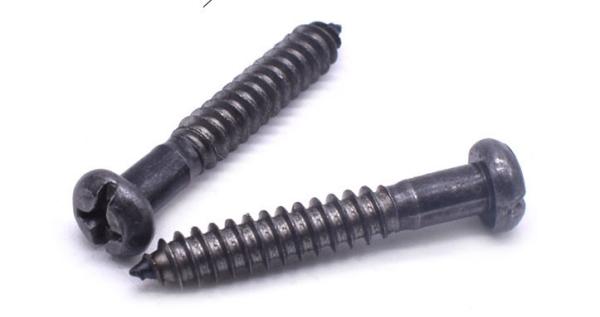

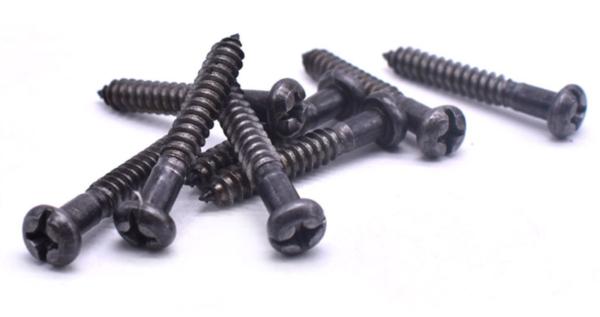

More Products Pictures

Black Oxide Steel Combination Slotted/Phillips Drive Pan Head Self Tapping ScrewsBlack Oxide Steel Combination Slotted/Phillips Drive Pan Head Self Tapping Screws
