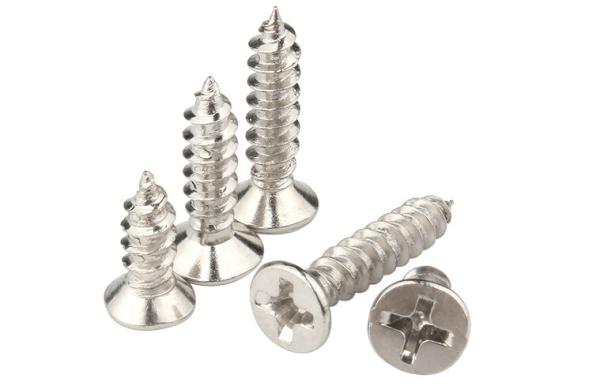

Nickel Plated Steel Flat Head Self Tapping Screws DIN7982 Type C Countersunk Head Pointed Screws
Nickel Plated Steel Flat Head Self Tapping Screws DIN7982 Type C Countersunk Head Pointed Screws
Nickel Plated Steel Flat Head Self Tapping Screws DIN7982 Type C Countersunk Head Pointed Screws
Nickel Plated Steel Flat Head Self Tapping Screws DIN7982 Type C Countersunk Head Pointed Screws
Nickel Plated Steel Flat Head Self Tapping Screws DIN7982 Type C Countersunk Head Pointed Screws
Nickel Plated Steel Flat Head Self Tapping Screws DIN7982 Type C Countersunk Head Pointed Screws
Specifications
Brand Name :
Runtai
Model Number :
Tapping Screws
Certification :
ISO9001/TS16949
Place of Origin :
China
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000ton/month
Delivery Time :
15-20 working
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Nickel Plated Steel Flat Head Self Tapping Screws
Standard :
DIN,ANSI,JIS,ASTM,GB
Size :
M1-M30 for choose
Material For Choose :
Carbon Steel, Stainless Steel,Brass, Aluminum Alloy
Surface Treatment :
Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide
Grade :
4.8, 8.8, 10.9, 12.9 ,14.9
Description

18-8 Stainless Steel Phillips Flat Head Screws for Sheet Metal Stainless Steel Countersunk Self Tapping Screws

Products Description

These steel screws are available with corrosion-resistant finishes. They're beveled under the head for use in countersunk holes. Screws penetrate 0.025" and thinner sheet metal. Length is measured from the top of the head.

Nickel-plated steel screws have a decorative finish and are more corrosion resistant than zinc-plated screws.

Products Specification

Material Nickel-Plated Steel
Screw Size No. 6
Screw Size Decimal Equivalent 0.138"
Length 3/4"
Flat Head Profile Standard
Head
Diameter 0.262"
Height 0.083"
Drive Size No. 2
Drive Style Phillips
Drill Bit Size No. 32
Drill Bit Size Decimal Equivalent 0.116"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 18
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Flat
Countersink Angle 82°
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal
RoHS Not Compliant

Note: Material, Size and Surface Treatment for choose.

More Products Pictures

Nickel Plated Steel Flat Head Self Tapping Screws DIN7982 Type C Countersunk Head Pointed Screws

Nickel Plated Steel Flat Head Self Tapping Screws DIN7982 Type C Countersunk Head Pointed Screws
