M1-M30 Stainless Steel Machine Screws , ASMEB18.6.3 Flat Head Phillips Machine Screw
M1-M30 Stainless Steel Machine Screws , ASMEB18.6.3 Flat Head Phillips Machine Screw
M1-M30 Stainless Steel Machine Screws , ASMEB18.6.3 Flat Head Phillips Machine Screw
M1-M30 Stainless Steel Machine Screws , ASMEB18.6.3 Flat Head Phillips Machine Screw
M1-M30 Stainless Steel Machine Screws , ASMEB18.6.3 Flat Head Phillips Machine Screw
M1-M30 Stainless Steel Machine Screws , ASMEB18.6.3 Flat Head Phillips Machine Screw
Specifications
Brand Name :
Runtai
Model Number :
Fillister Head Phillips Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability :
5 Ton/ days
Delivery Time :
15-20 working days
Packaging Details :
PP bag+Carton box+ Wooden Pallet
Size :
M1-M30 for choose
Material :
Steel, Stainless Steel, Brass, Aluminum Alloy
Grade :
4.8 8.8 10.9 12.9 for choose
Surface treatment :
zinc plated, nickel plated, black phosphates for choose
Standard :
DIN ISO JIS ANSI
Products Name :
Stainless Steel Narrow Fillister Head Phillips Screws
Description

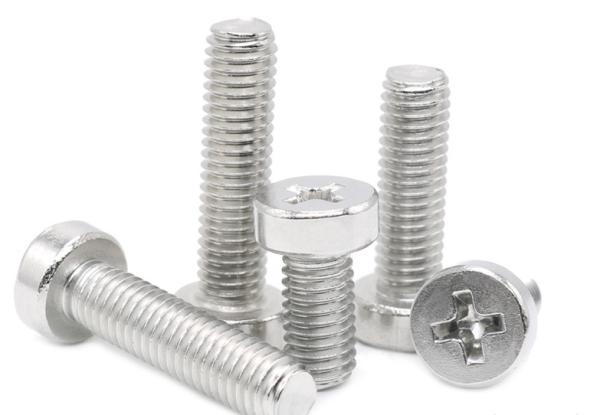

Stainless Steel Narrow Fillister Head Phillips Screws ASMEB18.6.3 Cup Head Phillips Drive Screws

Products Description

Taller than cheese head screws, these have a deep drive to maximize driving power and a narrow diameter to fit in tight spaces. Made from 18-8 stainless steel, they are chemical resistant and may be mildly magnetic. All are passivated for added protection against oxidation and corrosion. Length is measured from under the head

Products Specification

Thread Size 8-32
Length 3/8"
Threading Fully Threaded
Head Diameter 0.270"
Head Height 0.156"
Drive Style Phillips
Drive Size No. 2
Material 18-8 Stainless Steel
Finish Passivated
Hardness Rockwell B85
Tensile Strength 80,000 psi
Screw Size Decimal Equivalent 0.164"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2A
Thread Direction Right Hand
Head Type Rounded
Rounded Head Style Fillister
Rounded Head Profile High, Narrow
System of Measurement Inch
Specifications Met ASME B18.6.3
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.
