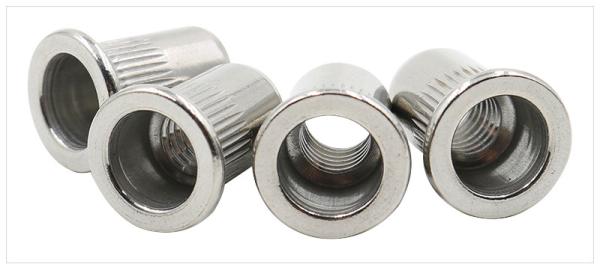

Stainless Steel Flat Head Ribbed Rivet Nuts , Grade 4.8 Grade 12.9 Knurled Rivet Nut
Stainless Steel Flat Head Ribbed Rivet Nuts , Grade 4.8 Grade 12.9 Knurled Rivet Nut
Stainless Steel Flat Head Ribbed Rivet Nuts , Grade 4.8 Grade 12.9 Knurled Rivet Nut
Stainless Steel Flat Head Ribbed Rivet Nuts , Grade 4.8 Grade 12.9 Knurled Rivet Nut
Stainless Steel Flat Head Ribbed Rivet Nuts , Grade 4.8 Grade 12.9 Knurled Rivet Nut
Stainless Steel Flat Head Ribbed Rivet Nuts , Grade 4.8 Grade 12.9 Knurled Rivet Nut
Specifications
Brand Name :
Runtai
Model Number :
Rivet Nuts
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5 Ton/days
Delivery Time :
14-21 days
Packaging Details :
PP bag+Carton box+ Wooden Pallet
Size :
M1-M30 for choose
Material :
Steel Stainless Steel Red Copper Aluminum Alloy For Choose
Grade :
4.8 8.8 10.9 12.9 for choose
Surface treatment :
Zinc plated, nickel plated, black phosphates for choose
Products Name :
Stainless Steel Flat Head Ribbed Rivet Nuts
Port :
Shanghai
Description

Stainless Steel Flat Head Ribbed Rivet Nuts Stainless Steel Flat Head Knurling Rivet Nuts

Products Descriptions

The most corrosion resistant twist-resistant rivet nuts we offer, these stand up to chemicals. A ribbed body holds the nut in place so it won't turn when tightening a screw. Also known as blind inserts, they can be installed when you have access to only one side of the material. Install in a drilled hole using a rivet nut tool. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.

Products Specifications

Material 18-8 Stainless Steel
Thread
Size M8
Pitch 1.25 mm
Type Metric
Spacing Coarse
Fit Class 6H
Direction Right Hand
Drill Bit Size 11 mm
Drill Bit Decimal Size Equivalent 11 mm
For Material Thickness 0.7 to 3 mm
Body
Type Ribbed
Diameter 11 mm
Length 16 mm
Installed Length 12 mm
Flange
Diameter 15 mm
Thickness 1.5 mm
Nut Type Rivet
End Type Open
For Use In Metal
RoHS Compliant
