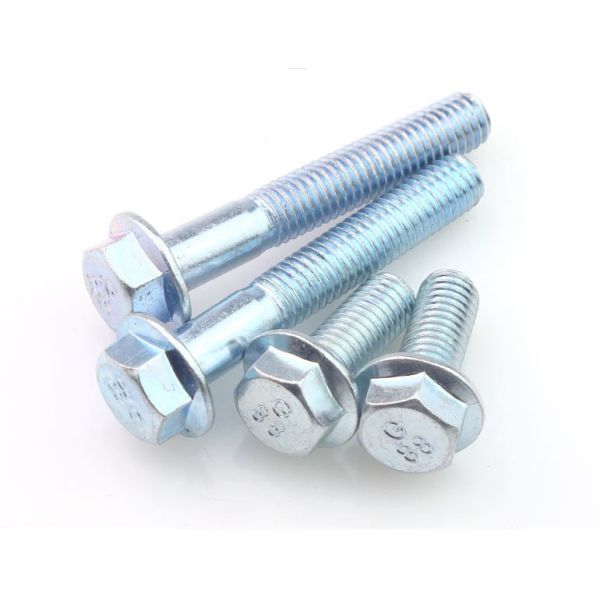

Class 8.8 Steel White Zinc Plated Flange Hex Head Screws Zinc Plated M8 Flange Hex Bolts
Class 8.8 Steel White Zinc Plated Flange Hex Head Screws Zinc Plated M8 Flange Hex Bolts
Class 8.8 Steel White Zinc Plated Flange Hex Head Screws Zinc Plated M8 Flange Hex Bolts
Class 8.8 Steel White Zinc Plated Flange Hex Head Screws Zinc Plated M8 Flange Hex Bolts
Class 8.8 Steel White Zinc Plated Flange Hex Head Screws Zinc Plated M8 Flange Hex Bolts
Class 8.8 Steel White Zinc Plated Flange Hex Head Screws Zinc Plated M8 Flange Hex Bolts
Specifications
Brand Name :
Runtai
Model Number :
Flanged Hex Bolts
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5 Tons/days
Delivery Time :
7-10 days
Packaging Details :
PP bag+Carton box+ Wooden Pallet
Products Name :
Class 8.8 Steel White Zinc Plated Flange Hex Head Screws
Size :
M1-M30 for choose
Material :
Stainless Steel Brass Copper Aluminum Alloy Steel
Grade :
4.8 8.8 10.9 12.9
Surface treatment :
zinc plated, nickel plated, black phosphates for choose
Delivery :
20days per container for the usual size
Port :
Shanghai
Description

Class 8.8 Steel White Zinc Plated Flange Hex Head Screws Zinc Plated Flange Hex Bolts

Products Descriptions

These screws are suitable for fastening most machinery and equipment. Good for demanding applications such as suspension systems, these screws are at least 25% stronger than medium-strength steel screws. They have a flange that distributes pressure where the screw meets the surface,eliminating the need for a separate washer. The black-phosphate finish provides corrosion resistance in wet environments. Head height includes the flange. Length is measured from under the flange.

Products Specifications

Thread Size M8
Thread Pitch 1.25 mm
Length 25 mm
Threading Partially Threaded
Min. Thread Length 21 mm
Head Width 13 mm
Head Height 8.1 mm
Flange Diameter 18 mm
Material Zinc Plated Steel
Hardness Rockwell C22
Tensile Strength 110,000 psi
Fastener Strength Grade/Class Class 8.8
Thread Type Metric
Thread Spacing Coarse
Thread Fit Class 6g
Thread Direction Right Hand
Head Type Hex
Hex Head Profile Standard
Drive Style External Hex
Screw Features Flanged
System of Measurement Metric
RoHS Not Compliant

Note: Material, Size and Surface Treatment for choose.

More Products Pictures

Class 8.8 Steel White Zinc Plated Flange Hex Head Screws Zinc Plated M8 Flange Hex BoltsClass 8.8 Steel White Zinc Plated Flange Hex Head Screws Zinc Plated M8 Flange Hex BoltsClass 8.8 Steel White Zinc Plated Flange Hex Head Screws Zinc Plated M8 Flange Hex Bolts
