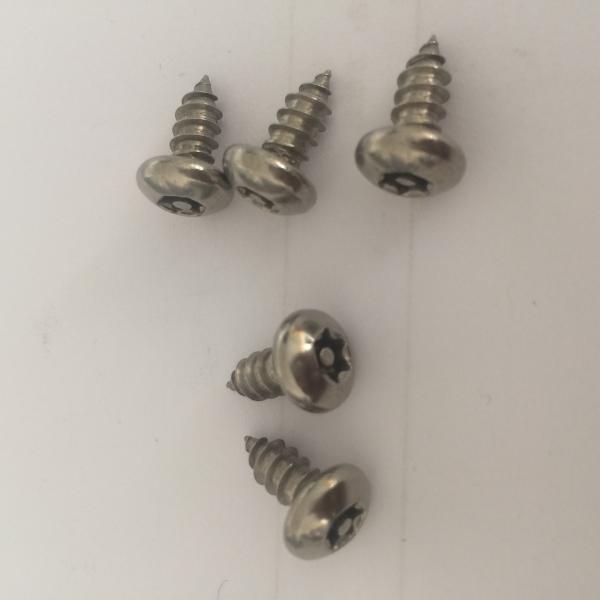

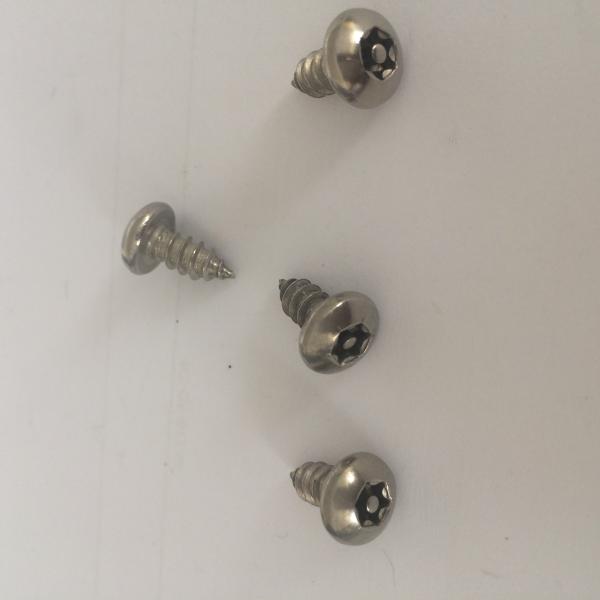

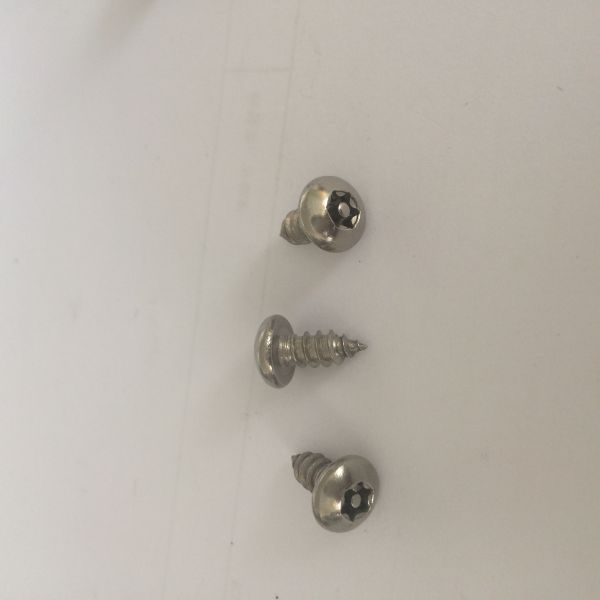

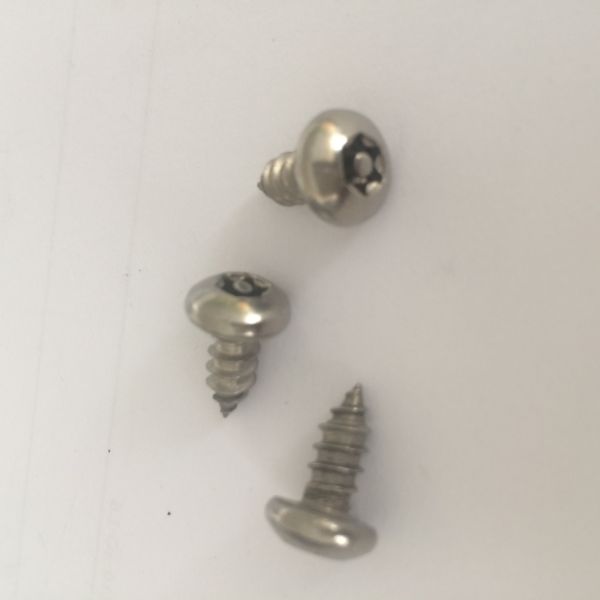

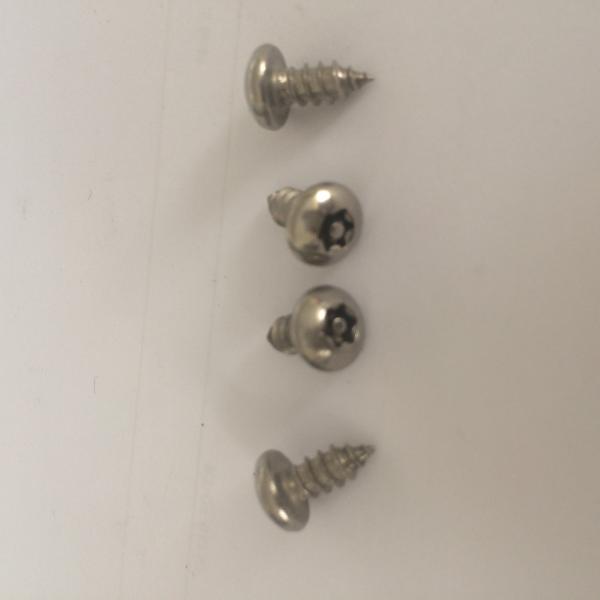

18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws
18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws
18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws
18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws
18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws
18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws
Specifications
Brand Name :
Runtai
Model Number :
RT-001
Certification :
ISO9001/TS16949
Place of Origin :
China
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000ton/month
Delivery Time :
15-20 working
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Stainless Steel Torx Rounded Head Screws
Part Number :
RT- Bushing 002
Standard :
DIN,ANSI,JIS,ASTM,GB
Material For Choose :
Carbon Steel, Stainless Steel,Brass, Aluminum Alloy
Surface Treatment :
Plain, Zinc, Zinc Nickel Plated
Packaging :
Poly Bag+Cartoon Box+ Wooden Pallet
Description

18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws

Products Description

A tamper-resistant Torx driver is required for installation and removal. Also known as pin-in-Torx, these screws allow you to apply extra force with less slippage or damage to the recess. Made from 18-8 stainless steel, they are chemical resistant and may be mildly magnetic. They penetrate 0.025" and thinner sheet metal. Length is measured from under the head.

Products Specification

Material 18-8 Stainless Steel
Screw Size No. 6
Screw Size Decimal Equivalent 0.138"
Length 1/2"
Head
Diameter 0.262"
Height 0.073"
Drive Size T10
Drive Style Tamper-Resistant Torx
Drill Bit Size No. 32
Drill Bit Size Decimal Equivalent 0.116"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 18
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Rounded
Rounded Head Profile Standard
Rounded Head Style Button
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal
RoHS Compliant

More Pictures

18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws

Production Equipment

18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws

Test Equipmemt

18-8 Stainless Steel Torx Rounded Head Screws Pin In Torx Pan Head Safety Screw Stainless Steel Tapping Screws

FAQ

Q1: Why choose Runtai?
To provide our customers with first-class services in the supply of high quality screw, bolt, bushing, nut and customized hardware.
12 Point Hex Flange Bolt
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
If you just need a sample we have in our stock, we will provide you sample for free and you afford the freight.
Full Thread Hex Bolts And Nut/Black Oxide Hex Head Screw
Q3: Can you strictly follow the tolerance on the drawing and meet the high precision?
Yes, we can, we can provide high precision parts and make the parts as your drawing.
stainless steel hex bolt and nut and washer
Q4: How long can I expect to get the customized sample?
After you pay the sample charge and send us confirmed files, and the mould is existing in our factory, the samples will be ready in 5-10 working days;
If the mould is not existing, we need to open a new mould, the samples will be ready in 10-15 working days; The samples will be sent to you via and arrive in 3-5 working days. You can use your own express account number or prepay us if you do not have an account.
8.8 grade heavy hex bolt and nut galvanized
Q5: What’s your Delivery Time?
Honestly, it largely depends on the order quantity and the season when you place the order. As usual, 15-30working days will be ok. If you are very urgent, we will try our best to do it.
