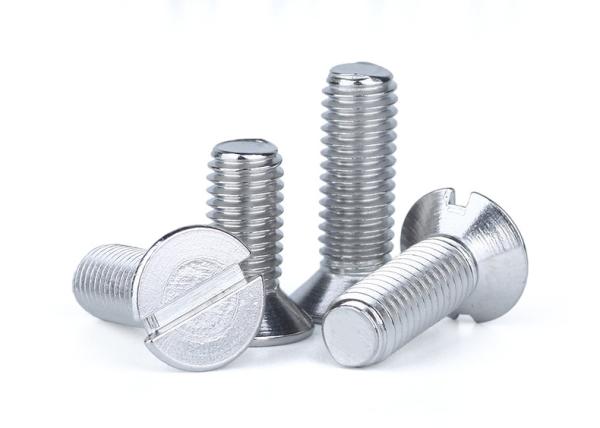

18-8 Slotted Flat Head Machine Screw M2.5 DIN 963 With Stainless Steel Material
18-8 Slotted Flat Head Machine Screw M2.5 DIN 963 With Stainless Steel Material
18-8 Slotted Flat Head Machine Screw M2.5 DIN 963 With Stainless Steel Material
18-8 Slotted Flat Head Machine Screw M2.5 DIN 963 With Stainless Steel Material
18-8 Slotted Flat Head Machine Screw M2.5 DIN 963 With Stainless Steel Material
18-8 Slotted Flat Head Machine Screw M2.5 DIN 963 With Stainless Steel Material
Specifications
Brand Name :
Runtai
Model Number :
Pan Head Slotted Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability :
5 Ton/ days
Delivery Time :
15-20 working days
Packaging Details :
PP bag+Carton box+ Wooden Pallet
Size :
M1-M30 for choose
Material :
Steel, Stainless Steel, Brass, Aluminum Alloy
Grade :
4.8 8.8 10.9 12.9 for choose
Surface treatment :
zinc plated, nickel plated, black phosphates for choose
Standard :
DIN ISO JIS ANSI
Products Name :
18-8 Stainless Steel Slotted Flat Head Screws
Description

18-8 Stainless Steel Slotted Flat Head Screws DIN963 Countersunk Head Slotted Drive Screws ISO2009 Slotted Drive Screws

Products Description

These 18-8 stainless steel screws have good chemical resistance and may be mildly magnetic.All are passivated for added protection against oxidation and corrosion. They’re angled under the head to sit flush within countersunk holes.Length is measured from the top of the head.

Products Specification

Thread Size M2.5
Thread Pitch 0.45 mm
Length 10 mm
Threading Fully Threaded
Countersink Angle 90°
Head Diameter 4.70 mm
Head Height 1.50 mm
Drive Style Slotted
Material 18-8 Stainless Steel
Finish Passivated
Hardness Rockwell B80
Tensile Strength 70,000 psi
Thread Type Metric
Thread Spacing Coarse
Thread Fit Class 6g
Thread Direction Right Hand
Head Type Flat
Flat Head Profile Standard
System of Measurement Metric
Specifications Met DIN 963, ISO 2009
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.

More Products Pictures

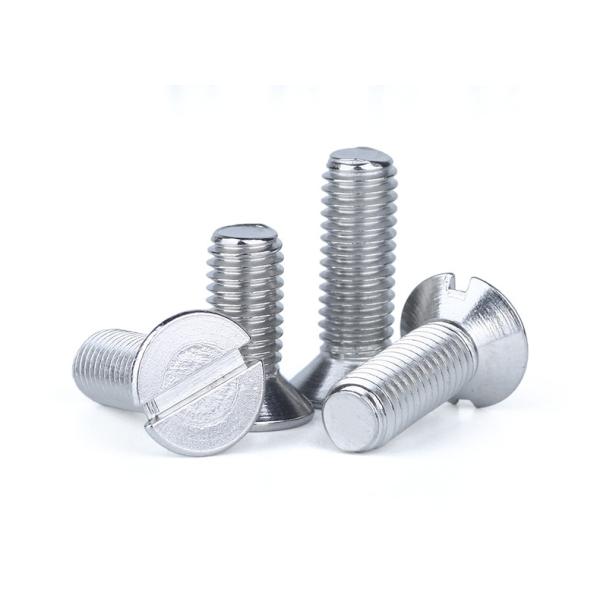

18-8 Slotted Flat Head Machine Screw M2.5 DIN 963 With Stainless Steel Material18-8 Slotted Flat Head Machine Screw M2.5 DIN 963 With Stainless Steel Material
