Stainless Steel Pin-In Torx Drive Flat Head Screws ASME B18.3 Countersunk Head Tamper-Resistant Screws
Stainless Steel Pin-In Torx Drive Flat Head Screws ASME B18.3 Countersunk Head Tamper-Resistant Screws
Stainless Steel Pin-In Torx Drive Flat Head Screws ASME B18.3 Countersunk Head Tamper-Resistant Screws
Stainless Steel Pin-In Torx Drive Flat Head Screws ASME B18.3 Countersunk Head Tamper-Resistant Screws
Stainless Steel Pin-In Torx Drive Flat Head Screws ASME B18.3 Countersunk Head Tamper-Resistant Screws
Stainless Steel Pin-In Torx Drive Flat Head Screws ASME B18.3 Countersunk Head Tamper-Resistant Screws
Specifications
Brand Name :
Runtai
Model Number :
Pin-In Torx Flat Head Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability :
5 Ton/ days
Delivery Time :
15-20 working days
Packaging Details :
PP bag+Carton box+ Wooden Pallet
Size :
M1-M30 for choose
Material :
Steel, Stainless Steel, Brass, Aluminum Alloy
Grade :
4.8 8.8 10.9 12.9 for choose
Surface treatment :
zinc plated, nickel plated, black phosphates for choose
Standard :
DIN ISO JIS ANSI
Products Name :
Stainless Steel Pin-In Torx Drive Flat Head Screws
Description

Stainless Steel Pin-In Torx Drive Flat Head Screws ASME B18.3 Countersunk Head Tamper-Resistant Screws

Products Description

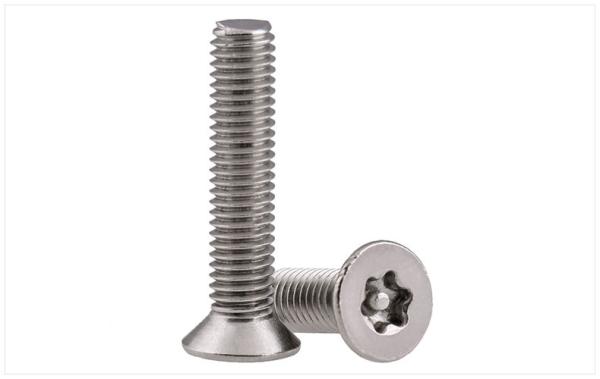

With a tamper-resistant Torx drive (also known as a pin-in Torx drive), these screws are difficult to remove without special tools. For installation tools, see tamper-resistant Torx drivers and bits.Made from 18-8 stainless steel, they have good chemical resistance and may be mildly magnetic.They’re angled under the head to sit flush within countersunk holes. Length is measured from the top of the head.

Passivated stainless steel screws provide added protection against oxidation and corrosion.

Products Specification

Thread Size 8-32
Length 1/2"
Threading Fully Threaded
Flat Head Profile Standard
Head Diameter 0.359"
Head Height 0.112"
Countersink Angle 82°
Drive Style Tamper-Resistant Torx
Drive Size T20
Material 18-8 Stainless Steel
Finish Passivated
Hardness Rockwell B70
Tensile Strength 70,000 psi
Screw Size Decimal Equivalent 0.164"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 3A
Thread Direction Right Hand
Head Type Flat
System of Measurement Inch
Specifications Met ASME B18.3
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.

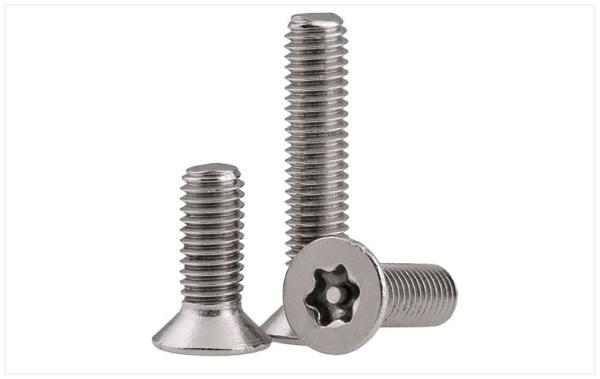

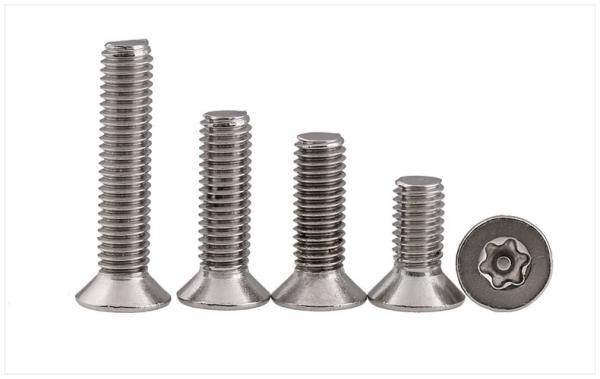

More Products Pictures
