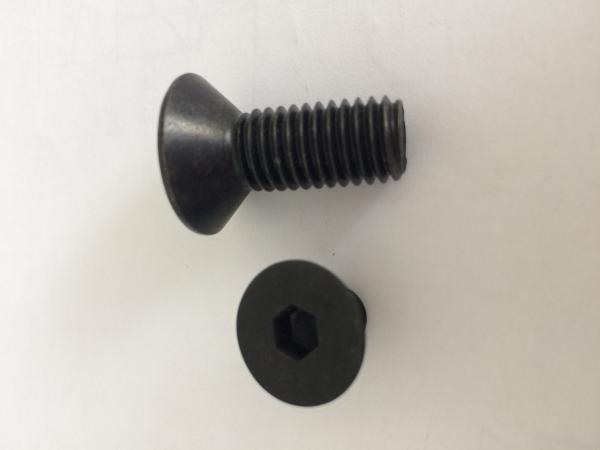

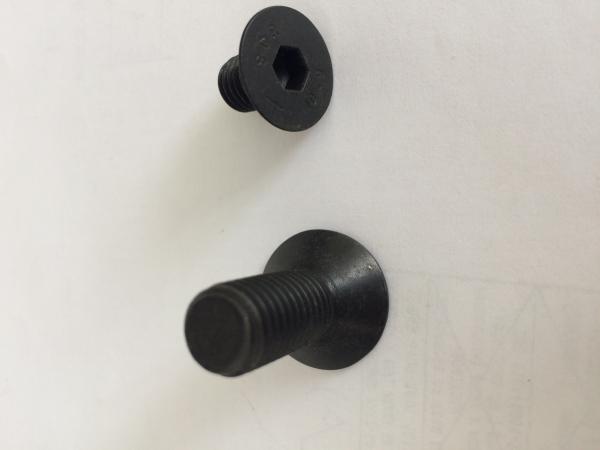

Alloy Steel Hex Drive Flat Head Screws Grade 8.8 Countersunk Head Machine Screws ASTMF835 Flat Head Screws
Alloy Steel Hex Drive Flat Head Screws Grade 8.8 Countersunk Head Machine Screws ASTMF835 Flat Head Screws
Alloy Steel Hex Drive Flat Head Screws Grade 8.8 Countersunk Head Machine Screws ASTMF835 Flat Head Screws
Alloy Steel Hex Drive Flat Head Screws Grade 8.8 Countersunk Head Machine Screws ASTMF835 Flat Head Screws
Alloy Steel Hex Drive Flat Head Screws Grade 8.8 Countersunk Head Machine Screws ASTMF835 Flat Head Screws
Alloy Steel Hex Drive Flat Head Screws Grade 8.8 Countersunk Head Machine Screws ASTMF835 Flat Head Screws
Specifications
Brand Name :
Runtai
Model Number :
RT-001
Certification :
ISO9001/TS16949
Place of Origin :
China
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000ton/month
Delivery Time :
15-20 working
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Alloy Steel Hex Drive Flat Head Screws
Part Number :
RT- Bushing 002
Standard :
DIN,ANSI,JIS,ASTM,GB
Material For Choose :
Carbon Steel, Stainless Steel,Brass, Aluminum Alloy
Surface Treatment :
Plain, Zinc, Zinc Nickel Plated
Packaging :
Poly Bag+Cartoon Box+ Wooden Pallet
Description

Alloy Steel Hex Drive Flat Head Screws Grade 8.8 Countersunk Head Machine Screws DIN7991 Flat Head Screws

Products Description

Made from alloy steel, these screws are nearly twice as strong as stainless steel flat head screws. They're angled under the head to sit flush within countersunk holes. Length is measured from the top of the head.

Screws with an undercut profile have a shallow head for use in thin materials.

Black-oxide alloy steel screws have mild corrosion resistance in dry environments.

Zinc-plated alloy steel screws resist corrosion in wet environments.

Products Specification

Thread Size 4-48
Length 1/4"
Threading Fully Threaded
Flat Head Profile Standard
Head Diameter 0.255"
Head Height 0.083"
Countersink Angle 82°
Drive Style Hex
Drive Size 1/16"
Material Black-Oxide Alloy Steel
Hardness Rockwell C32
Tensile Strength 120,000 psi
Screw Size Decimal Equivalent 0.112"
Thread Type UNF
Thread Spacing Fine
Thread Fit Class 3A
Thread Direction Right Hand
Head Type Flat
System of Measurement Inch
Specifications Met ASTM F835
RoHS Compliant

More Pictures

Alloy Steel Hex Drive Flat Head Screws Grade 8.8 Countersunk Head Machine Screws ASTMF835 Flat Head ScrewsAlloy Steel Hex Drive Flat Head Screws Grade 8.8 Countersunk Head Machine Screws ASTMF835 Flat Head Screws

Related Products Information

Understanding Thread Size

Inch thread sizes are specified by diameter and threads per inch. For those with a diameter smaller than 1/4", diameter is indicated by a number (e.g., #1 or No. 1).

Metric thread sizes are specified by diameter and pitch.
