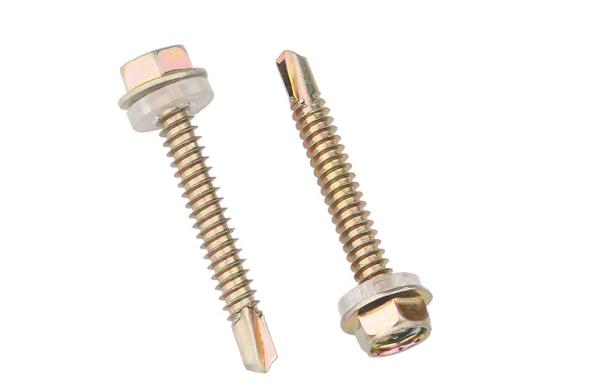

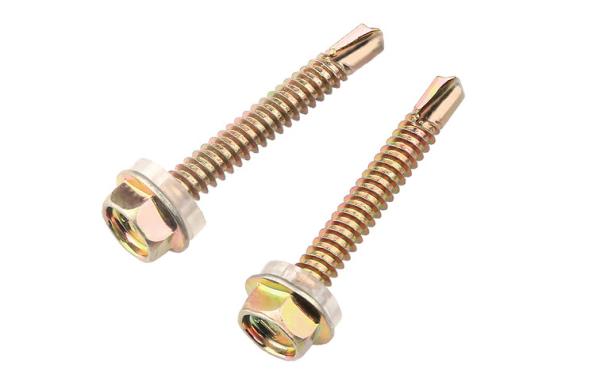

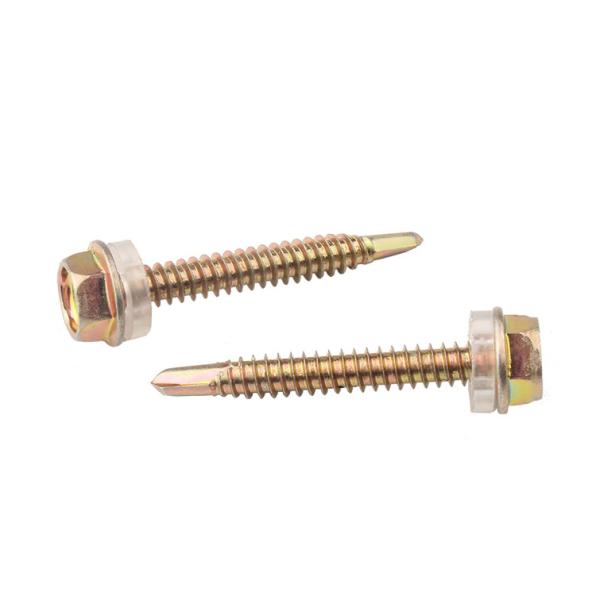

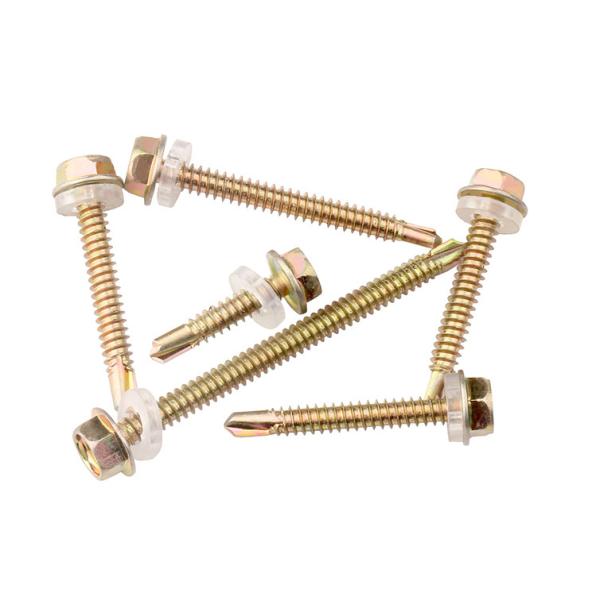

DIN7504K Yellow Chromated Steel Hexagon Flange Head Self Drilling Screws With EPDM Washer
DIN7504K Yellow Chromated Steel Hexagon Flange Head Self Drilling Screws With EPDM Washer
DIN7504K Yellow Chromated Steel Hexagon Flange Head Self Drilling Screws With EPDM Washer
DIN7504K Yellow Chromated Steel Hexagon Flange Head Self Drilling Screws With EPDM Washer
Specifications
Brand Name :
Runtai
Model Number :
Tapping Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5ton/day
Delivery Time :
14-21 days
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Yellow Chromated Steel Hexagon Flange Head Self Drilling Tapping Screws with Plastic Washer
Material :
Stainless Steel Brass Copper Aluminum Alloy Steel
Standard :
DIN,ANSI,JIS,ASTM,GB
Size :
M1-M30 for choose
Surface Treatment :
Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide
Grade :
4.8 8.8 10.9 12.9 for choose
Description

Yellow Chromated Steel Hexagon Flange Head Self Drilling Tapping Screws with Plastic Washer


Products Description

These steel screws have corrosion-resistant finishes. A hex head provides a secure grip with a wrench and a flange reduces the risk of crushing thin metal. They save you time and effort by drilling their own holes and fastening in a single operation. Length is measured from under the flange. Head height includes the flange.

.
Products Specification

Material Zinc-Plated Steel
Screw Size No. 10
Screw Size Decimal Equivalent 0.19"
Length 3/4"
Drill Tip
Type No. 3
Length 1/4"
Maximum Drilling Thickness 0.15"
Head
Width 0.313"
Height 0.151"
Flange Diameter 0.414"
Drive Style External Hex
Approximate Threads per Inch 16
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type BSD
Head Type Hex
Hex Head Profile Standard
Tip Type Drilling
Shank Cross Section Round
Screw Features Flanged
System of Measurement Inch
For Use In Steel, Sheet Metal
RoHS Compliant

Note: Material, Size and Surface Treatment for choose. OEM and ODM Products is welcomed
