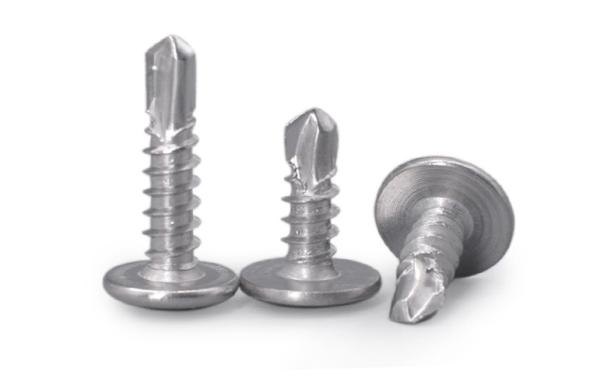

Stainless Steel Phillips Drive Truss Head Self - Drilling Screws For Metal
Stainless Steel Phillips Drive Truss Head Self - Drilling Screws For Metal
Stainless Steel Phillips Drive Truss Head Self - Drilling Screws For Metal
Stainless Steel Phillips Drive Truss Head Self - Drilling Screws For Metal
Stainless Steel Phillips Drive Truss Head Self - Drilling Screws For Metal
Stainless Steel Phillips Drive Truss Head Self - Drilling Screws For Metal
Specifications
Brand Name :
Runtai
Model Number :
Tapping Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5ton/day
Delivery Time :
14-21 days
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Stainless Steel Phillips Drive Truss Head Self-Drilling Screws For Metal7504N
Material :
Stainless Steel Brass Copper Aluminum Alloy Steel
Standard :
DIN,ANSI,JIS,ASTM,GB
Size :
M1-M30 for choose
Surface Treatment :
Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide
Grade :
4.8 8.8 10.9 12.9 for choose
Description

Stainless Steel Phillips Drive Truss Head Self-Drilling Screws For Metal

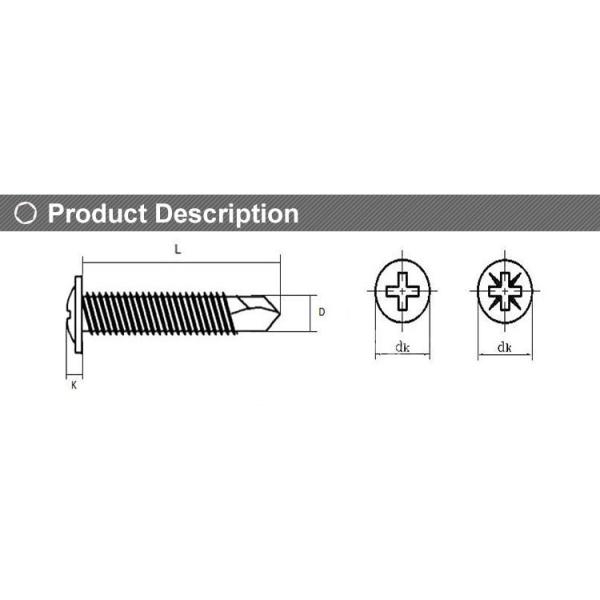

Products Specification

Material Stainless Steel
Screw Size No. 10
Screw Size Decimal Equivalent 0.19"
Length 1 3/4"
Drill Tip
Type No. 3
Length 1/4"
Maximum Drilling Thickness 0.175"
Head Height 0.089"
Flange Diameter 0.433"
Drive Size No. 2
Drive Style Phillips
Approximate Threads per Inch 16
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type BSD
Head Type Rounded
Rounded Head Profile Wide
Rounded Head Style Truss
Tip Type Drilling
Shank Cross Section Round
Screw Features Flanged
System of Measurement Inch
For Use In Steel, Sheet Metal

Stainless Steel Phillips Drive Truss Head Self - Drilling Screws For Metal

Stainless Steel Phillips Drive Truss Head Self - Drilling Screws For Metal

Note: Material, Size and Surface Treatment for choose. OEM and ODM Products is welcomed

How to Producing

Stainless Steel Phillips Drive Truss Head Self - Drilling Screws For Metal

How to Packaging
Stainless Steel Phillips Drive Truss Head Self - Drilling Screws For Metal

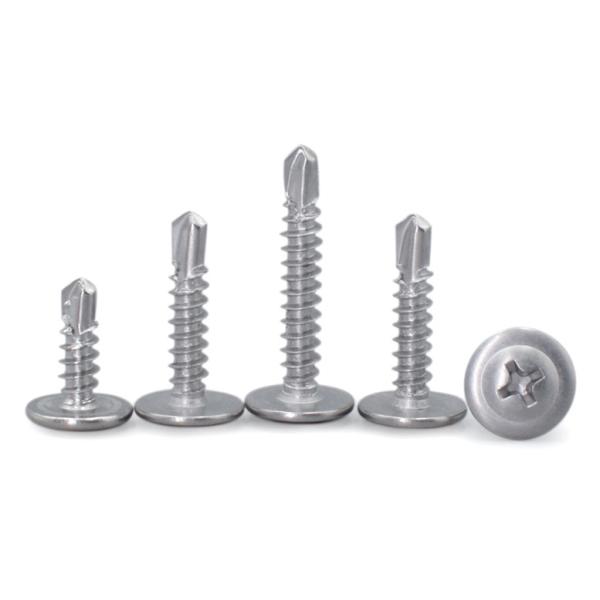

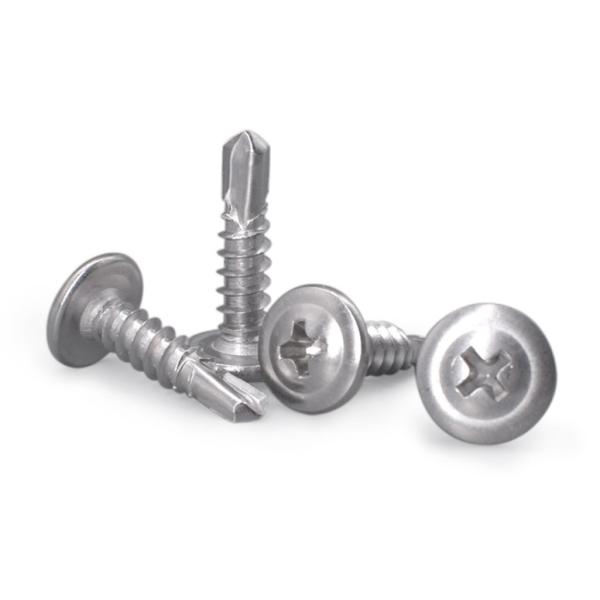

More Products Pictures

Stainless Steel Phillips Drive Truss Head Self - Drilling Screws For MetalStainless Steel Phillips Drive Truss Head Self - Drilling Screws For Metal
